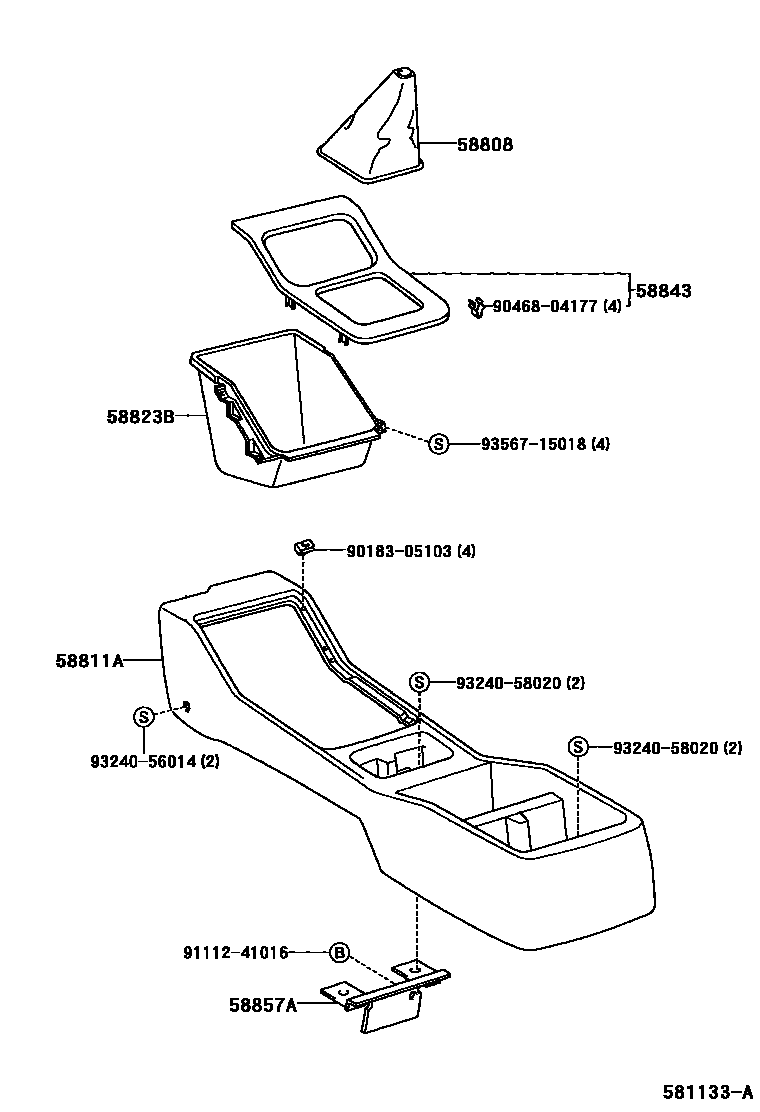

Toyota QUALIS — CONSOLE BOX & BRACKET

0001 1 0003 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0B020iLF50,RZF50..DLX,GL199912-200209

58811ABOX, CONSOLE, FRONT

main58811-0B050iLF50,RZF50..DLX,GL199912-200209

main58811-YJ010iLF50,RZF50..DLX200209

58823BBOX, CONSOLE COMPARTMENT

main58823-0B010iLF50,RZF50..DLX,GL199912-200209

58843BEZEL, SHIFTING HOLE

main58843-0B040iLF50,RZF50..DLX,GL199912-200209

58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1

main58857-0B030iLF50,RZF50..DLX,GL199912-200209

9018305103

main90183-05103

9046804177

main90468-04177

9111241016

main91112-41016

9324056014

main93240-56014

9324058020

main93240-58020

9356715018

main93567-15018

11 parts on this diagram · 2 diagrams in section
