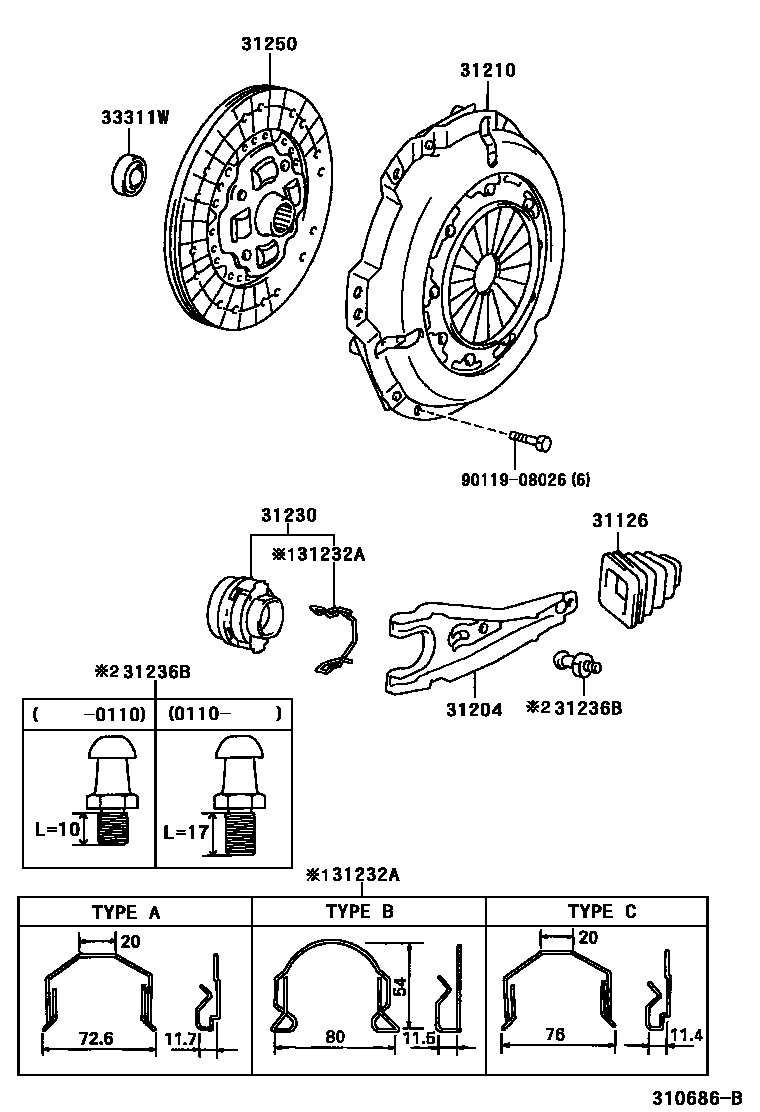

Toyota QUALIS — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iLF50199912-200412

main31126-26020iRZF50200201-200412

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZF50200201-200412

main31204-35050iLF50199912-200412

31210COVER ASSY, CLUTCH

main31210-0B060iLF50200108-200112

main31210-0B070iLF50200112

main31210-22100iRZF50200201

sub31210-22101

main31210-30251iLF50199912-200108

sub31210-35340

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLF50199912-200412

sub31230-35071

main31230-35091iRZF50200201-200412

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLF50,RZF50199912-200412

TYPE A:REFER TO ILLUSTRATION

main31232-35030iLF50199912-200412

TYPE B:REFER TO ILLUSTRATION

main31232-35040iRZF50200201-200412

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-26010iLF50,RZF50200110-200412

main31236-30060iLF50199912-200110

31250DISC ASSY, CLUTCH

main31250-0B070iLF50200108-200112

main31250-0B080iLF50200112

main31250-35371iRZF50200201

sub31250-35372

main31250-35410iLF50199912-200108

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLF50199912-200412

sub90363-12024

main90363-12018iRZF50200201-200412

NSK

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
