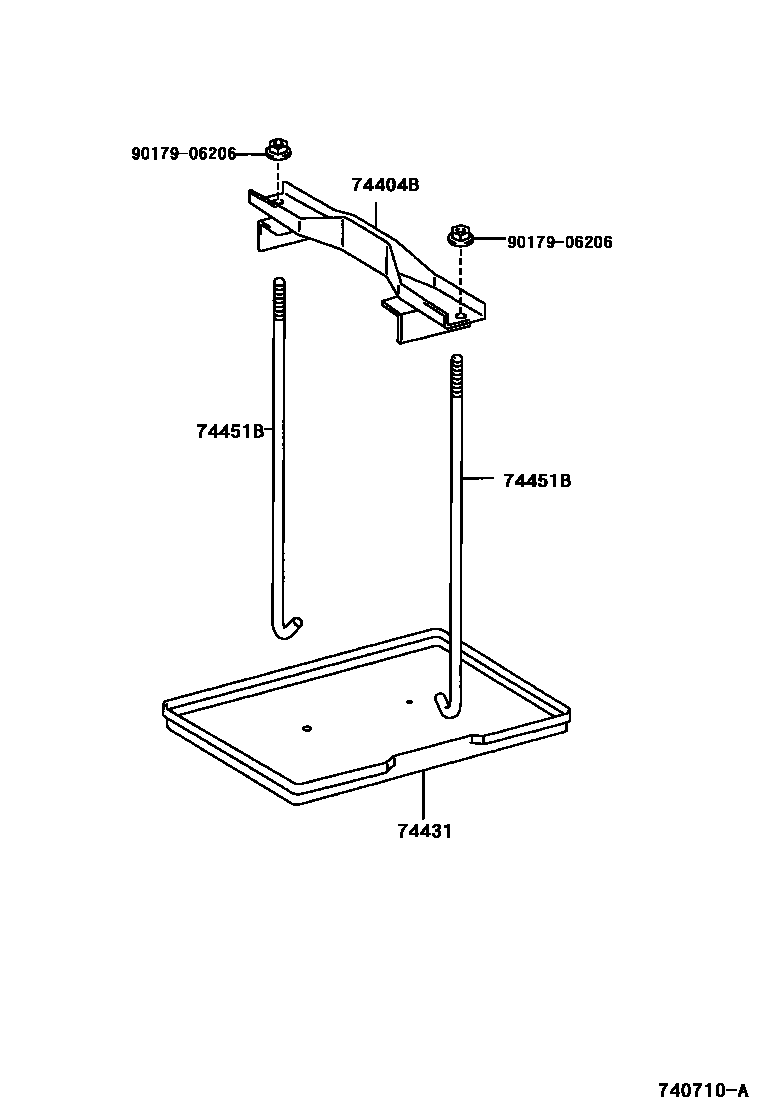

Toyota QUALIS — BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-0B080i200112

main74404-38060i199912-200112

74431TRAY, BATTERY

main74431-0B010i199912

main74431-0B020i200201

74451BBOLT, BATTERY CLAMP

main74451-38010×2i199912

9017906206

main90179-06206

4 parts on this diagram · 1 diagram in section

BATTERY CARRIER for Toyota QUALIS

This section contains 4 genuine Toyota parts for the BATTERY CARRIER system of the Toyota QUALIS. Key components include: CLAMP SUB-ASSY, BATTERY, TRAY, BATTERY, BOLT, BATTERY CLAMP.
