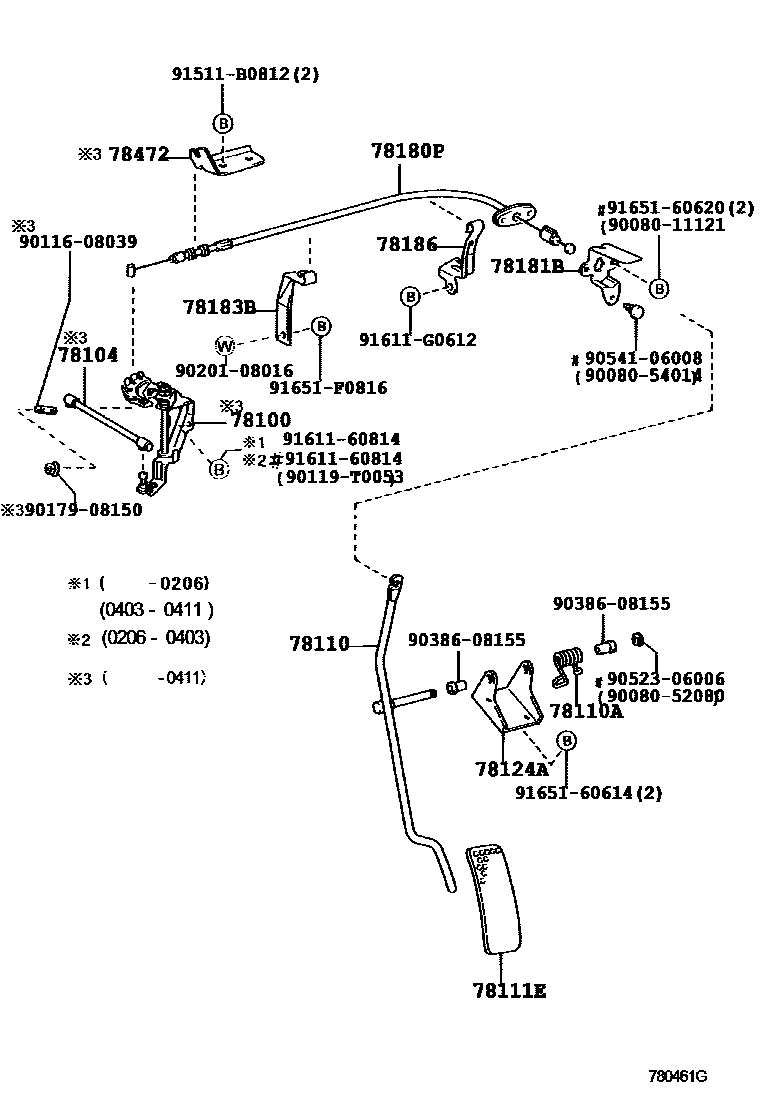

Toyota QUALIS — ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-35071iLF50199912-200411

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLF50199912-200411

78110ROD ASSY, ACCELERATOR PEDAL

main78102-0B070iLF50,RZF50199912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-32037iLF50,RZF50199912

78111EPAD, ACCELERATOR PEDAL

main78111-0B050iLF50,RZF50199912

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-0B070iLF50,RZF50199912

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-0B090iLF50199912

main78180-0B150iRZF50200201

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-38010iLF50199912

78183BCLAMP, ACCELERATOR CONTROL CABLE

main90959-01342iLF50199912

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-0B030iLF50,RZF50200108

(L)

main78186-38150iLF50,RZF50199912

(J)

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-35010iLF50199912-200411

9008011121

main90080-11121

9008052080

main90080-52080

9008054014

main90080-54014

9011608039

main90116-08039

90119T0053

main90119-T0053

9017908150

main90179-08150

9020108016

main90201-08016

9038608155

main90386-08155

9052306006

main90523-06006

9054106008

main90541-06008

91511B0812

main91511-B0812

9161160814

main91611-60814

91611G0612

main91611-G0612

9165160614

main91651-60614

9165160620

main91651-60620

91651F0816

main91651-F0816

27 parts on this diagram · 2 diagrams in section
