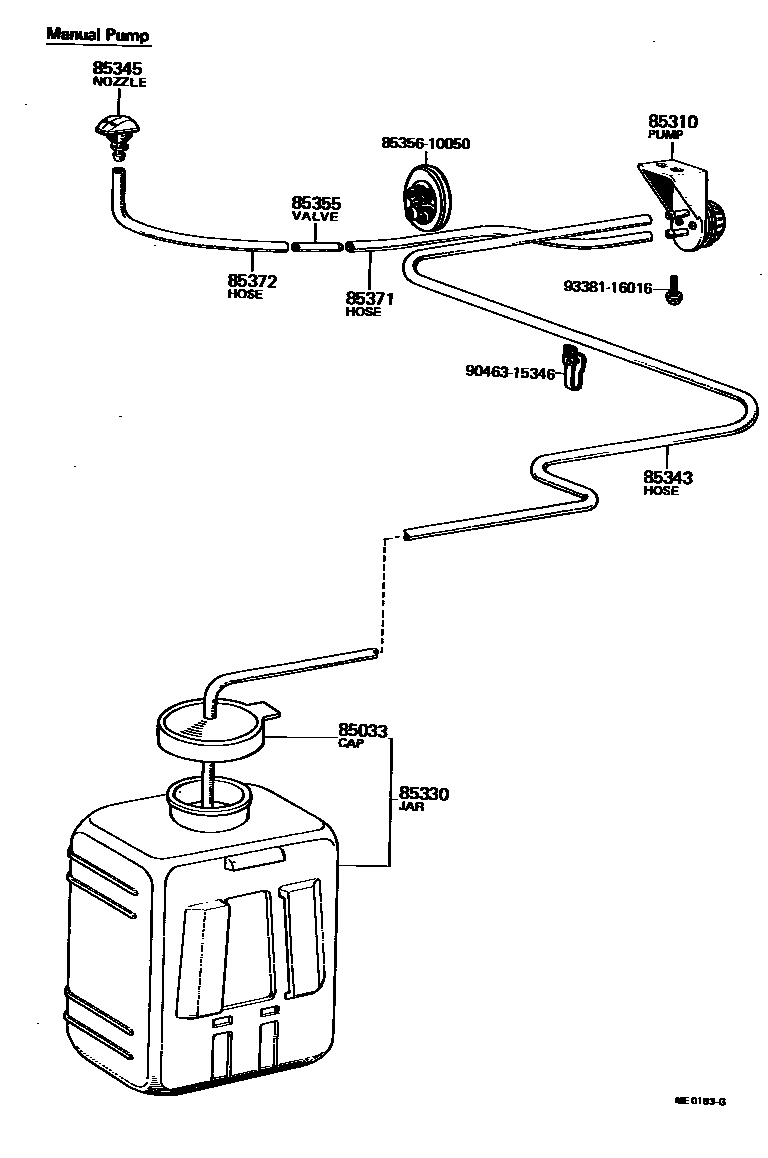

Toyota PUBLICA — WINDSHIELD WASHER

0001 1 0002 1 0004 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-10060iKP3#197410-197511

main85332-10061iKP37,50197511-197805

main85332-10070iKP3#197805-198808

main85332-11010iKP3#,UP3#..STD196904-197010

main85332-11011iKP30,36,UP3#..STD197010-197112

main85332-11012iKP30,31,36..S,STD197201-197410

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85039-11010iKP3#,UP3#..STD196904-197010

main85039-11011iKP30,31,36,UP3#..S,STD197010-197410

main85310-10060iKP3#,UP3#..DLX,HDX,SL,SR,ST,XL196904-197410

main85310-10061iKP37,50197511-197805

sub85330-10230

main85310-60010iKP3#197805-198709

main85310-95700iKP39198709-198808

85330JAR ASSY, WINDSHIELD WASHER

main85330-10060iKP3#,UP3#..DLX,HDX,SL,SR,ST,XL196904-197302

main85330-10070iKP3#..DLX,HDX,SR,ST,XL197302-197410

main85330-10071iKP37,50197511-197805

sub85330-87001

main85330-10072iKP3#197805-198808

main85330-11010iKP30,31,36,UP3#..S,STD196904-197410

85343HOSE, WINDSHIELD WASHER SUCTION

main85372-10010iKP3#..STD196904-197010

L=1700

sub90446-06006

main85372-10020iUP3#..STD196904-197010

L=1480

sub90446-06006

main90446-06279iKP30,31,36..S,STD197010-197410

L=1700

main90446-06281iUP3#..STD197010-197112

L=1550

85345NOZZLE, WINDSHIELD WASHER

main85035-10060iKP3#,UP3#196904-197112

main85035-10061iKP3#,50197201-198808

sub85035-60050

85355VALVE, WINDSHIELD WASHER HOSE

main85031-11010iKP30,31,36,UP3#..S,STD196904-197410

sub85031-30010

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85344-11010iKP30,31,36,UP3#..S,STD196904-197410

main90446-06013iKP3#197808-198808

main90446-06055iKP3#197410-197511

sub90446-06006

main90446-06183iKP37,50197511-197808

main90446-06253iKP3#..DLX,HDX,SR,ST,XL197302-197410

sub90446-06006

main90446-06265iKP3#,UP3#..DLX,HDX,SL,SR,ST,XL196904-197302

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iKP3#,UP3#..STD196904-197010

main90446-06277iKP30,31,36..S,STD197010-197410

8535610050PACKING (FOR WINDSHIELD WASHER JAR)

main85356-10050

9046315346

main90463-15346

9338116016

main93381-16016

11 parts on this diagram · 3 diagrams in section
