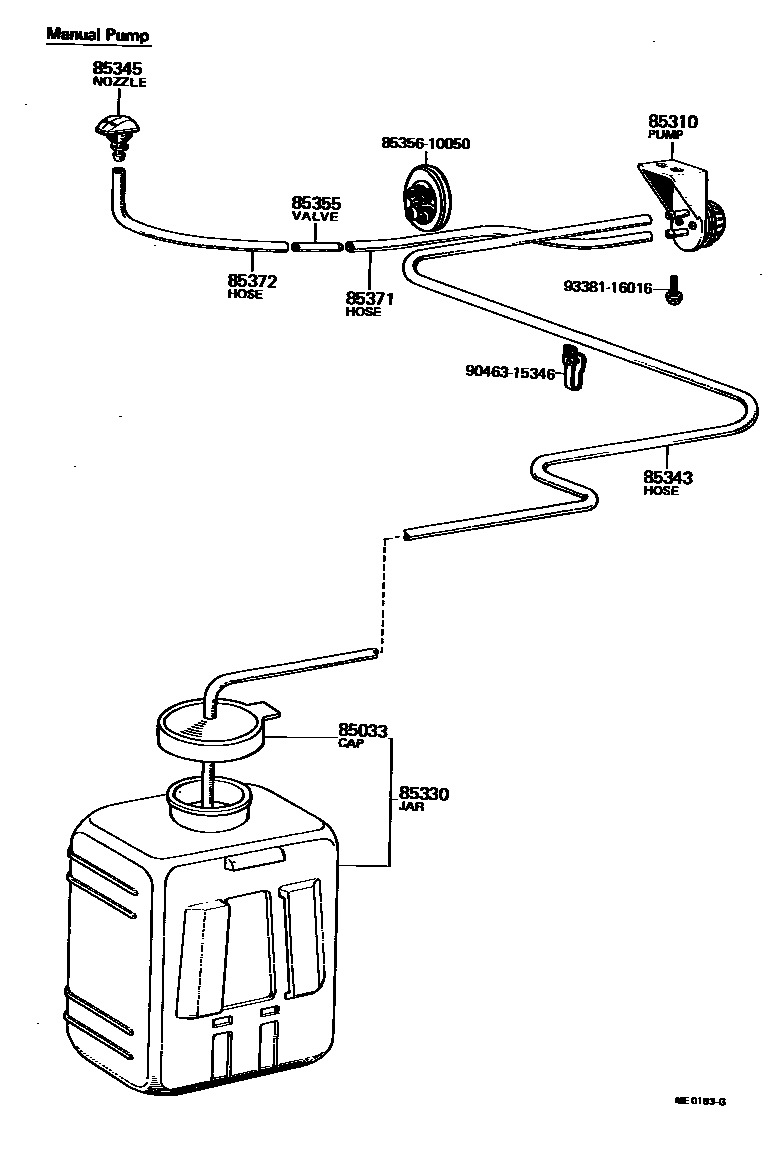

Toyota PUBLICA — WINDSHIELD WASHER
85033CAP ASSY, WINDSHIELD WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85343HOSE, WINDSHIELD WASHER SUCTION
L=1700
L=1480
L=1700
L=1550
85345NOZZLE, WINDSHIELD WASHER
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
8535610050PACKING (FOR WINDSHIELD WASHER JAR)
main85356-10050
9046315346
main90463-15346
9338116016
main93381-16016
11 parts on this diagram · 3 diagrams in section
WINDSHIELD WASHER for Toyota PUBLICA
This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PUBLICA. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, WINDSHIELD WASHER TANK, PLATE, WINDSHIELD WASHER PUMP, JAR ASSY, WINDSHIELD WASHER.
