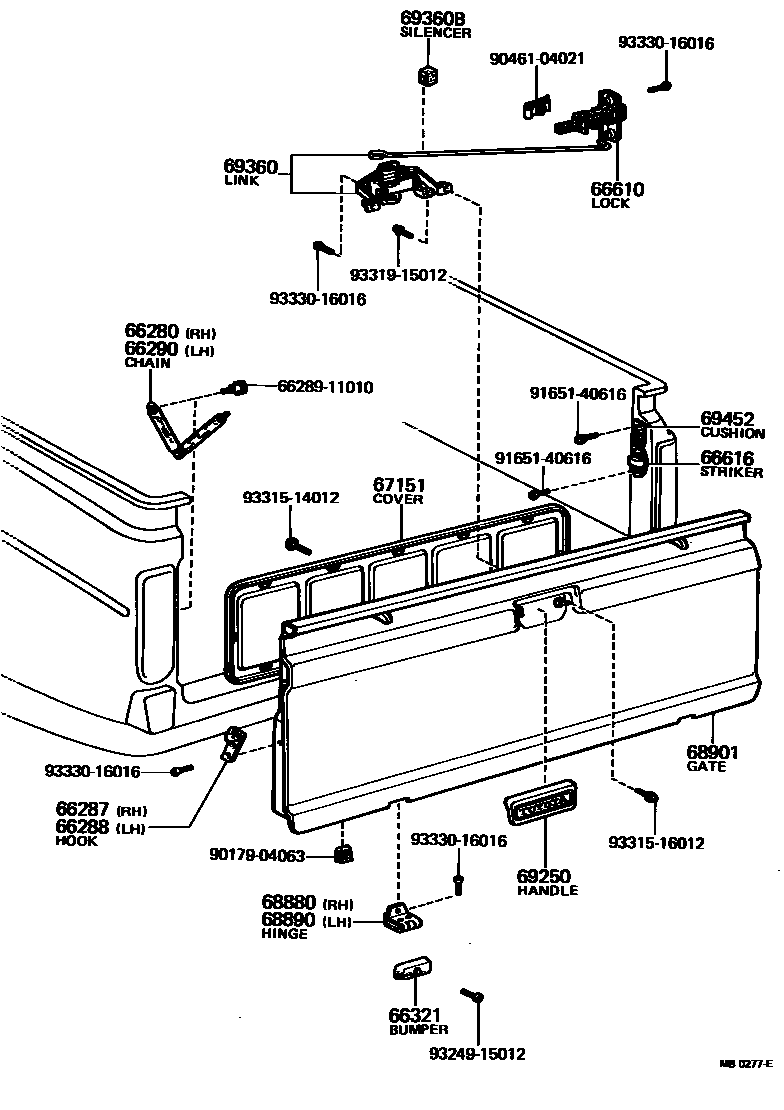

Toyota PUBLICA — TAIL GATE PANEL & LOCK

66280CHAIN ASSY, TAIL GATE, RH

main90583-05005iKP36,37,38,39..PIC196911-198808

66287HOOK, TAIL GATE CHAIN, RH

main66280-96400iKP36,37,38,39..PIC197101-198808

main66288-11010iKP36..PIC196911-197101

66288HOOK, TAIL GATE CHAIN, LH

main66280-96400iKP36,37,38,39..PIC197101-198808

main66288-11010iKP36..PIC196911-197101

66290CHAIN ASSY, TAIL GATE, LH

main90583-05005iKP36,37,38,39..PIC196911-198808

66321BUMPER, GATE RUBBER

main66321-11010×2iKP36,37,38,39..PIC196911-198808

66610LOCK ASSY, TAIL GATE

main69350-11020×2iKP36,37..PIC196911-197401

main69350-96400×2iKP36,37,38,39..PIC197401-198808

66616STRIKER, TAIL GATE LOCK

main69451-11010×2iKP36,37..PIC196911-197401

main69451-96400×2iKP36,37,38,39..PIC197401-198808

67151COVER, TAIL GATE INNER

main67751-11040iKP36,37,38,39..PIC196911-198808

68880HINGE ASSY, TAIL GATE, RH

main68810-11040iKP36,37,38,39..PIC196911-198808

68890HINGE ASSY, TAIL GATE, LH

main68810-11040iKP36,37,38,39..PIC196911-198808

68901GATE SUB-ASSY, TAIL

main67007-11030iKP36..PIC196911-197112

main67007-96400iKP36,37,38,39..PIC197201-198808

69250HANDLE ASSY, TAIL GATE LOCK

main69251-11020iKP36..PIC196911-197112

main69251-96400iKP36,37,38,39..PIC197201-198808

69360LINK ASSY, TAIL GATE REMOTE CONTROL

main69750-11030iKP36,37,38,39..PIC196911-198808

69360BSILENCER(FOR TAIL GATE REMOTE CONTROL)

main69769-96400×2iKP36,37,38,39..PIC196911-198808

69452CUSHION, REAR GATE

main69452-11010×2iKP36,37,38,39..PIC196911-198808

6628911010BOLT, TAIL GATE CHAIN

main66289-11010

9017904063

main90179-04063

9046104021

main90461-04021

9165140616

main91651-40616

9324915012

main93249-15012

9331514012

main93315-14012

9331516012

main93315-16012

9331915012

main93319-15012

9333016016

main93330-16016

24 parts on this diagram · 1 diagram in section
