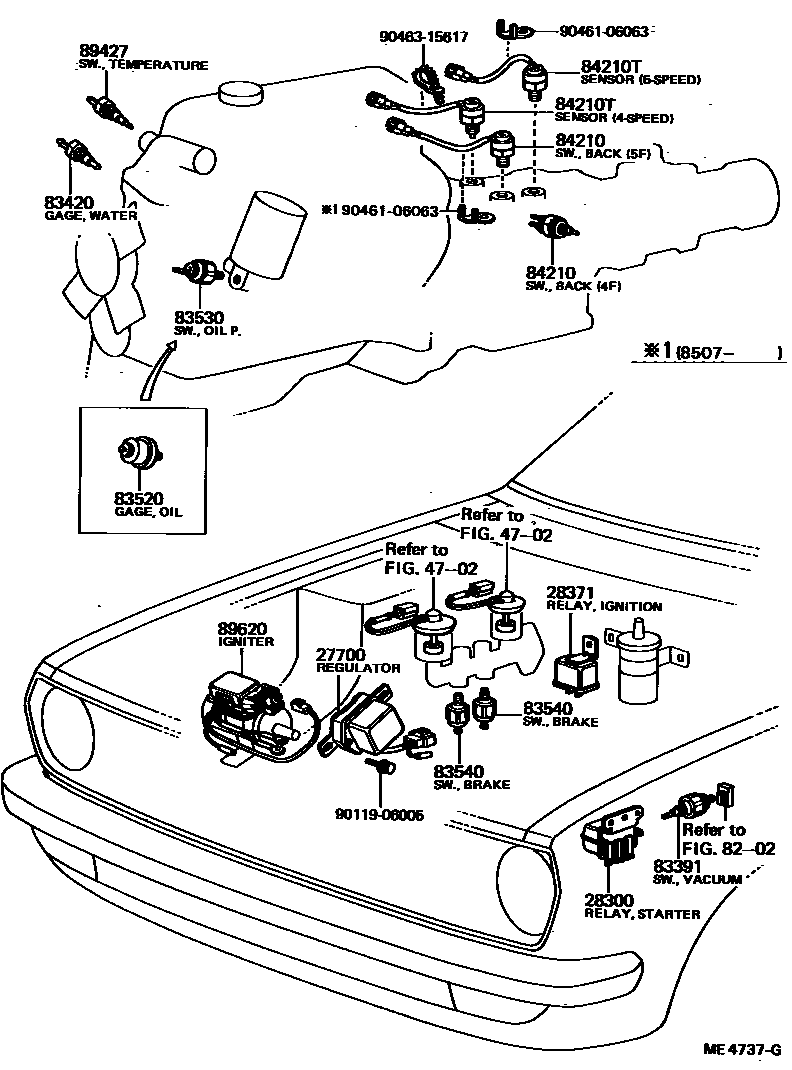

Toyota PUBLICA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

27700REGULATOR ASSY, GENERATOR

main27700-22010iKB,2K,3K,3KB#,2UC..KP3#,UP3#196904-197511

sub27700-38020

main27700-36010i3K#..KP37,50197511-197707

main27700-36020i3K#,4KJ..KP3#,50197707-198808

sub27700-15040

28300RELAY ASSY, STARTER

main28300-50010i2K,3K..KP30,31..2FC197010-197112

28371RELAY, IGNITION, NO.1

main28371-45010i2K..KP30..2FC197201-197212

4702

8202

83391SWITCH, VACUUM

main83391-10011iKP50..MTM197601-197802

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKP3#,50196904-197908

main83420-16010iKP3#197908-198308

main83420-20020iKP39198308-198808

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-30010iKP31..S,SR,ST197201-197511

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKP3#,50..DLX,HDX,STD197511-198403

sub83530-14030

main83530-12020iKP3#,UP3#196904-197101

main83530-12040iKP39198403-198502

main83530-14040iKP39198502-198511

main83530-30080iKP39198511-198808

sub83530-60040

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011×2iKP31..ST,XL197201-197310

84210SWITCH ASSY, BACK-UP LAMP

main84210-10050iUP3#196904-197006

main84210-10051iUP3#197006-197112

main84210-10060iKP50..5F197606-197802

main84210-10071iKP39198507-198808

main84210-12011iKP3#..4F196904-197004

main84210-62020iKP3#,50..4F197004-198507

84210TSENSOR ASSY, SHIFT POINT

main84220-12020iKP50..4F197601-197802

89427SWITCH, TEMPERATURE DETECT

main89428-10010iKP50..MTM197601-197702

MARK=50

main89428-60030iKP50..MTM197702-197802

MARK=50

89620IGNITER ASSY

main89620-10010iKP50197601-197802

sub89620-20H91

9011906005

main90119-06005

9046106063

main90461-06063

9046315617

main90463-15617

17 parts on this diagram · 7 diagrams in section
