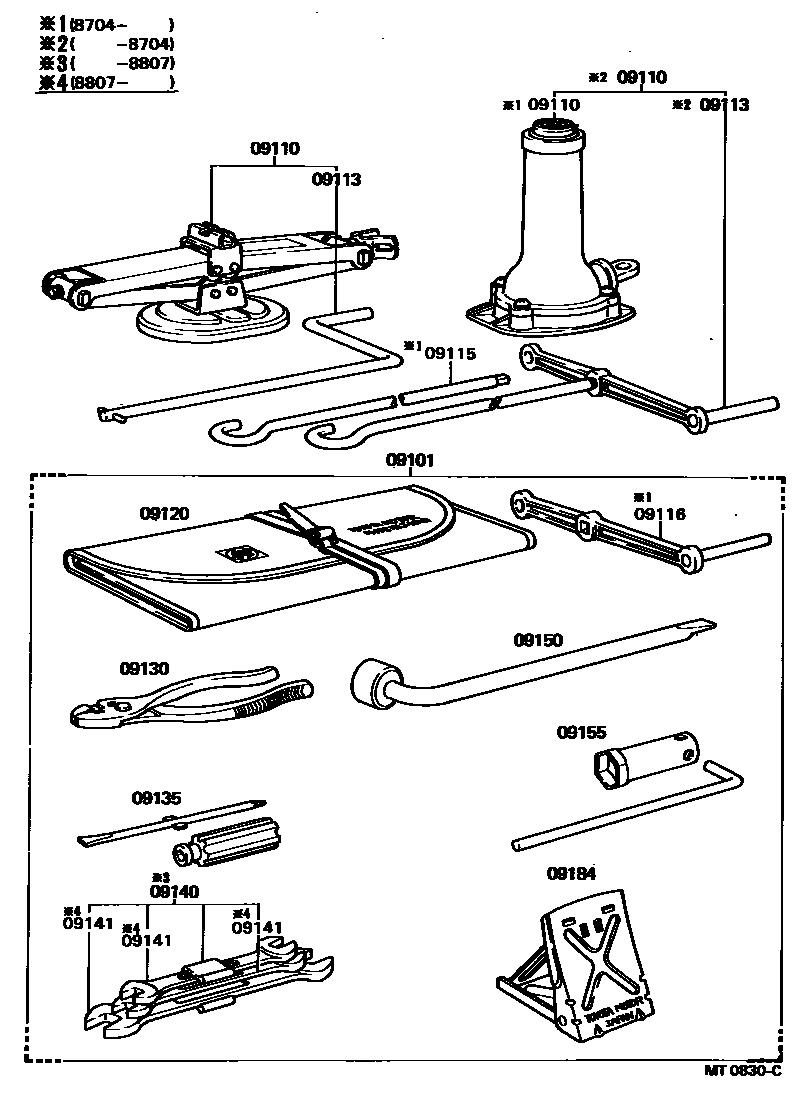

Toyota PUBLICA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-11014iKP39198205-198808

main09101-12012iKP3#,50,UP3#196904-198205

09110JACK ASSY

main09110-10020iKP30,31,UP30196904-197112

sub09111-10020

main09110-12020iKP30,31,50197201-197802

main09110-13010iKP36,37,38,39,UP36196904-198704

main09111-13010iKP39198704-198808

09113HANDLE, JACK

main09113-11011iKP30,31,50,UP30196904-197802

main09113-13011iKP36,37,38,39,UP36196904-198704

09115ROD SUB-ASSY, JACK HANDLE

main09115-13020iKP39198704-198808

09116LEVER, JACK HANDLE

main09116-35040iKP39198704-198808

sub09116-35041

09120BAG, TOOL

main09120-12011iKP3#,50,UP3#196904-198808

09130PLIERS

main09130-00010iKP3#,50,UP3#196904-198205

sub09130-00012

main99913-11500iKP39198205-198808

09135DRIVER, SCREW

main99915-10700iKP3#,50,UP3#196904-198808

(+)(-)

09140SPANNER SET

main09140-12011iKP3#,50,UP3#196904-198807

09141SPANNER

main99914-10810iKP3#,50,UP3#196904-198808

main99914-11012iKP3#,50,UP3#196904-198808

main99914-11417iKP3#,50,UP3#196904-198808

09150WRENCH, HUB NUT BOX

main09150-00010iKP3#,50,UP3#196904-198808

09155WRENCH, SPARK PLUG

main09155-12010iKP3#,50,UP3#196904-198205

main09155-44010iKP39198205-198808

09184STOPPER, WHEEL

main09184-00010iKP3#,50,UP3#196904-198808

13 parts on this diagram · 1 diagram in section
