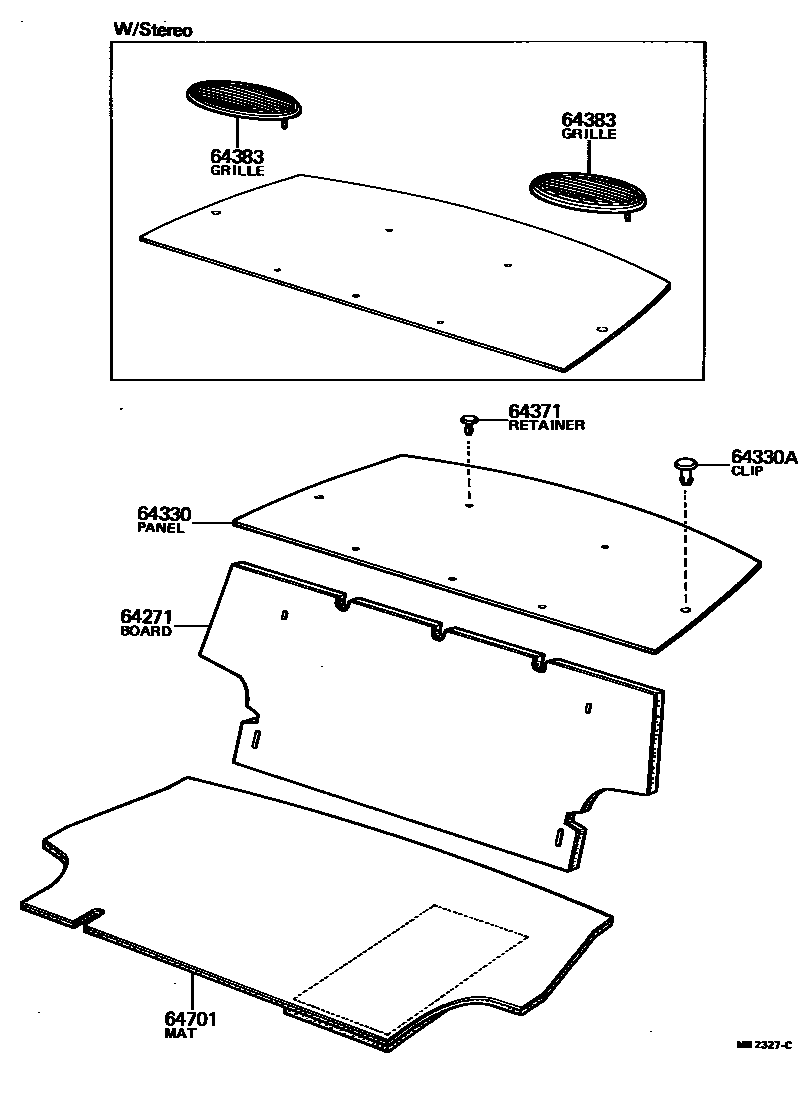

Toyota PUBLICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BOARD, ROOM PARTITION, NO.1
64330PANEL ASSY, PACKAGE TRAY TRIM
OLIVE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,BLACK,TRIM2#
OLIVE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
LIGHT BROWN,BROWN,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
BLACK,BLACK,TRIM2#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
LIGHT BROWN,BROWN,TRIM4#
64383GRILLE, SPEAKER, REAR
TOSHIBA
TEN
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
6 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota PUBLICA
This section contains 6 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota PUBLICA. Key components include: BOARD, ROOM PARTITION, NO.1, PANEL ASSY, PACKAGE TRAY TRIM, CLIP(FOR PACKAGE TRAY TRIM PANEL), RETAINER, PACKAGE TRAY TRIM, GRILLE, SPEAKER, REAR.
