Toyota PUBLICA — MOUNTING

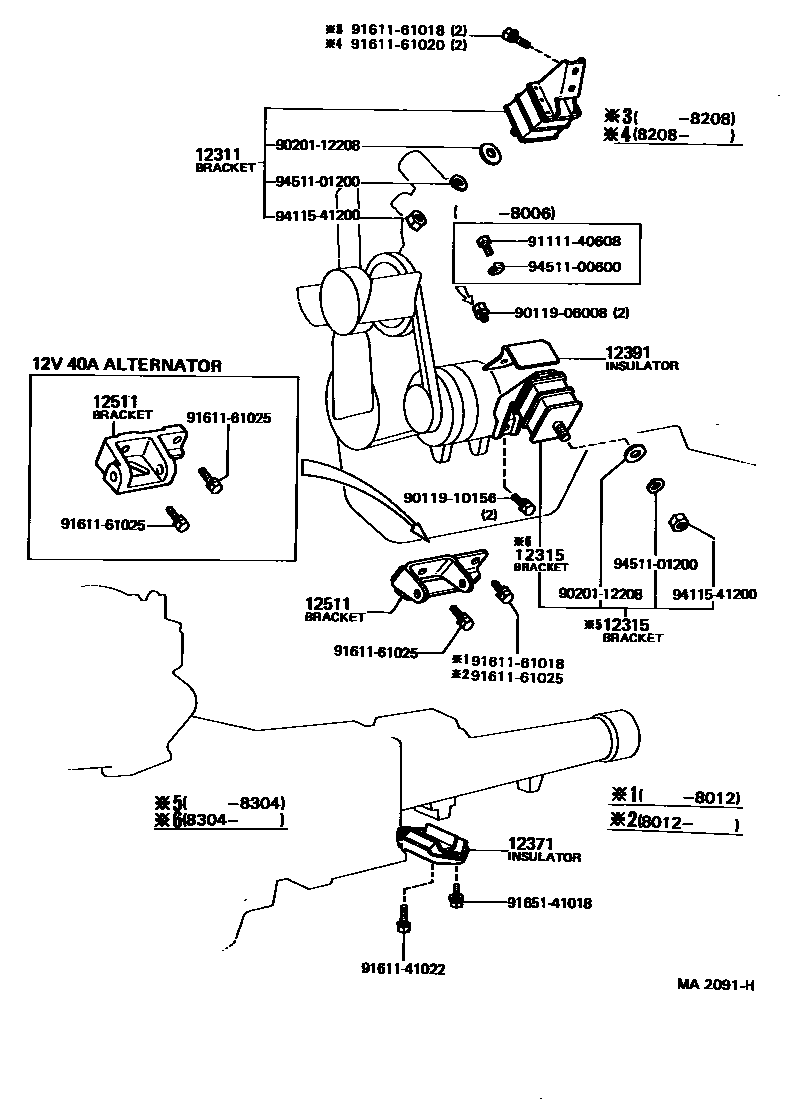

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-29016i196904-197405

main12301-29018i197405-198201

main12301-29035i198201-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-22023i198304-198808

main12302-29016i196904-197405

main12302-29017i197405-197705

main12302-29018i197705-198304

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-19045i196904-197112

main12371-22010i196904-198808

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-10010×2i196904-197112

main12391-22010i196904-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-10050i196904-197112

main12511-22010i196904-196908

main12511-22012i196904-197112

12V 30A ALTERNATOR

main12511-22013i197209-197302

12V 30A ALTERNATOR

main12511-22014i197302-197511

12V 30A ALTERNATOR

main12511-22015i197610-198201

12V 30A ALTERNATOR

main12511-22016i198201-198808

12V 30A ALTERNATOR

main12511-24010i197201-197209

12V 40A ALTERNATOR

main12511-24011i197511-198201

12V 40A ALTERNATOR

9011906008

main90119-06008

9011910156

main90119-10156

9020112208

main90201-12208

9111140608

main91111-40608

9161141022

main91611-41022

9161161018

main91611-61018

9161161020

main91611-61020

9161161025

main91611-61025

9165141018

main91651-41018

9411541200

main94115-41200

9451100600

main94511-00600

9451101200

main94511-01200

17 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota PUBLICA

This section contains 29 genuine Toyota parts for the MOUNTING system of the Toyota PUBLICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
