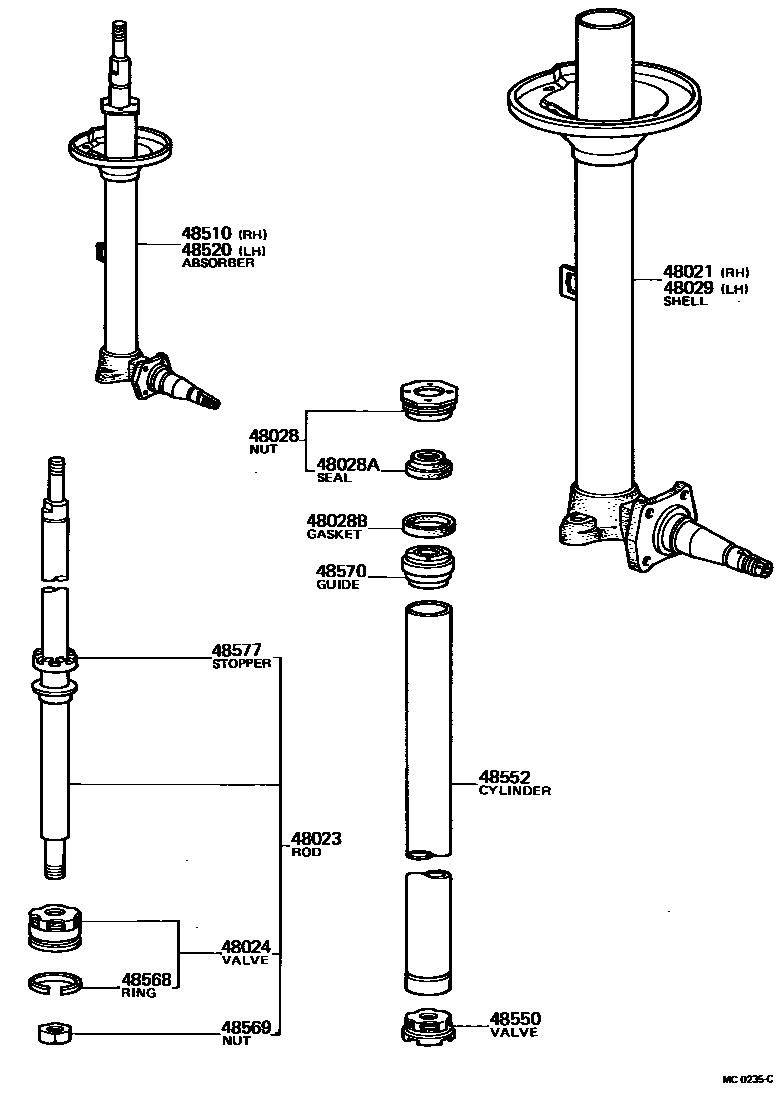

Toyota PUBLICA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-10010iKP3#,UP3#196904-197112

main48021-10011iKP3#,50197201-198808

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-10010×2iKP3#,UP3#..DLX,HDX,STD196904-197112

main48023-10011×2iKP30,31..DLX,HDX,STD,XL197201-197511

main48023-10030×2iKP31..SR197103-197112

sub48023-10020

main48023-10031×2iKP31..S,SR,ST197201-197511

main48023-11010×2iKP36,37,38,39197201-198808

48024VALVE SUB-ASSY, SHOCK ABSORBER PISTON

main48024-10010×2iKP36,37,38,39197201-198808

main48024-10011×2iKP30,31..DLX,HDX,STD,XL197201-197511

main48024-10030×2iKP31..SR197103-197112

main48024-10031×2iKP31..S,SR,ST197201-197511

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10010×2iKP3#,UP3#196904-197102

main48028-10011×2iUP3#197103-197112

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20003×2iKP3#,UP3#196904-197102

main90316-20005×2iKP3#197103-197401

main90316-20010×2iKP3#,50197401-198808

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36179×2iUP3#196904-197112

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-10010iKP3#,UP3#196904-197112

main48029-10011iKP3#,50197201-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-10010iKP3#,UP3#196904-197102

main48510-10011iKP3#,UP3#..DLX,HDX,STD197103-197112

sub48510-10021

main48510-10012iKP30,31,50..DLX,HDX,STD,XL197201-197802

main48510-10031iKP31..SR197103-197112

main48510-10032iKP31..S,SR,ST197201-197511

main48510-11010iKP36,37,38,39197201-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-10010iKP3#,UP3#196904-197102

main48520-10011iKP3#,UP3#..DLX,HDX,STD197103-197112

sub48520-10021

main48520-10012iKP30,31,50..DLX,HDX,STD,XL197201-197802

main48520-10031iKP31..SR197103-197112

main48520-10032iKP31..S,SR,ST197201-197511

main48520-11010iKP36,37,38,39197201-198808

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10010×2iKP36,37,38,39197201-198808

sub48550-10030

main48550-10011×2iKP30,31..DLX,HDX,STD,XL197201-197511

sub48550-10030

main48550-10020×2iKP31..SR197103-197112

main48550-10021×2iKP31..S,SR,ST197201-197511

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-10010×2iUP3#196904-197112

48568RING, SHOCK ABSORBER PISTON

main48568-10010×2iUP3#196904-197112

48569NUT, SHOCK ABSORBER PISTON

main94125-41200×2iUP3#196904-197112

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10010×2iKP3#,50196904-198808

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010×2iKP3#,50196904-198808

15 parts on this diagram · 2 diagrams in section
