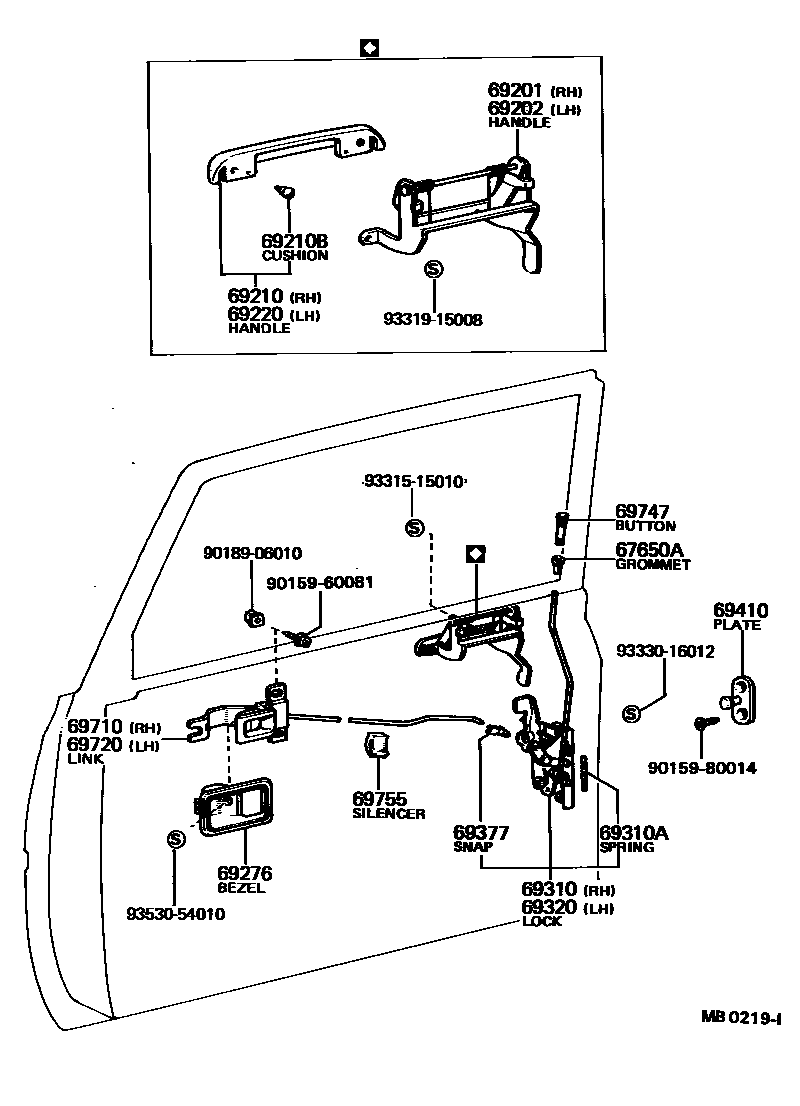

Toyota PUBLICA — FRONT DOOR LOCK & HANDLE
67650AGROMMET(FOR DOOR PANEL LOCK BUTTON)
69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH
69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
69310LOCK ASSY, FRONT DOOR, RH
69310ASPRING(FOR FRONT DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
BLACK,BLACK,TRIM2#
BEIGE,BEIGE,TRIM4#
69747BUTTON, DOOR LOCKING
69755SILENCER, FRONT DOOR LOCK LINK
9015960081
main90159-60081
9015980014
main90159-80014
9018906010
main90189-06010
9331515010
main93315-15010
9331915008
main93319-15008
9333016012
main93330-16012
9353054010
main93530-54010
23 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PUBLICA
This section contains 23 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PUBLICA. Key components include: GROMMET(FOR DOOR PANEL LOCK BUTTON), HANDLE SUB-ASSY, DOOR OUTSIDE, RH, HANDLE SUB-ASSY, DOOR OUTSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
