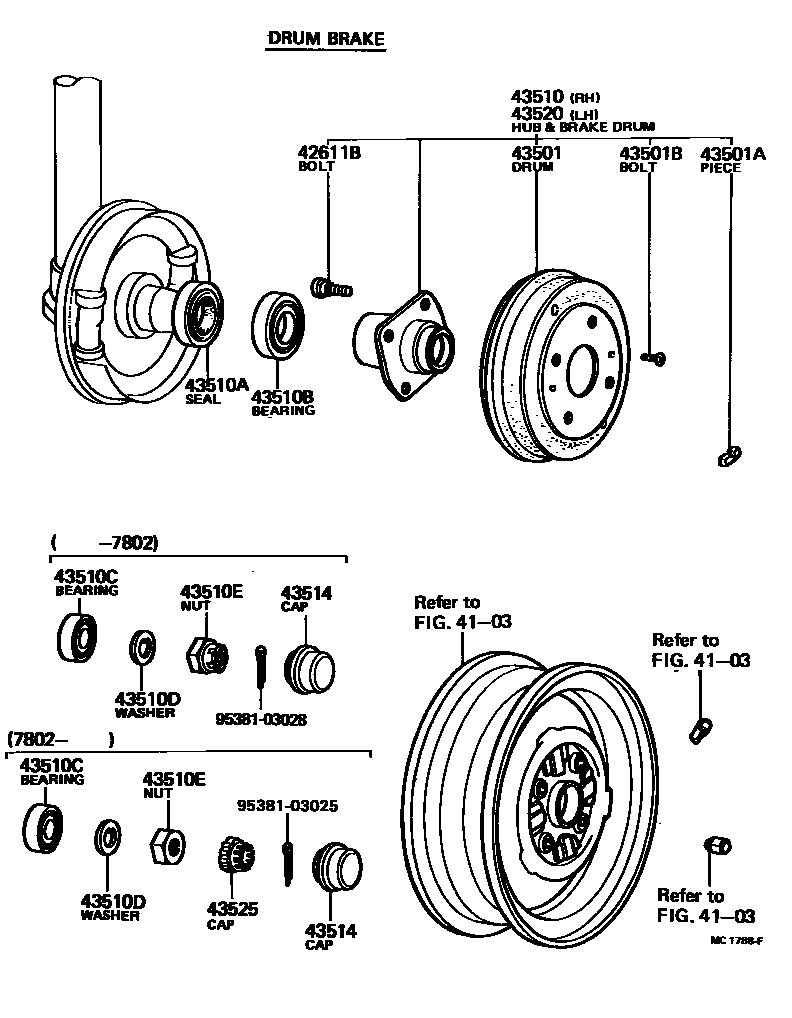

Toyota PUBLICA — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02021×8i196904-197112

*12-1.5PX38-24

main90942-02032×8i197410-197703

*12-1.5PX38-25.5

main90942-02035×8i197703-198306

*12-1.5PX36-23.5,DRUM BRAKE

main90942-02036×8i197703-197802

*12-1.5PX33-20.5,DISC BRAKE

main90942-02047×8i198306-198808

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-12011×2i196904-197012

main43512-12012×2i197012-197112

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01096i197201-198808

main90937-01097i196904-197112

main90937-01098i196904-197112

main90937-01099i196904-197112

main90937-01100i196904-197112

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×4i196904-197112

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-12011i196904-197012

main43510-12012i197201-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108×2i197104-197112

main90312-40011×2i196904-197104

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26027×2i196904-197112

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2i196904-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2i196904-197112

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2i197907-198808

main90171-16025×2i196904-196908

main90171-16033×2i196908-197112

43514CAP, FRONT HUB GREASE

main43514-10020×2i197201-197404

main43514-12010×2i197404-198808

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-12011i196904-197012

main43510-12012i197012-197112

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2i197907-198808

9538103025

main95381-03025

9538103028

main95381-03028

16 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota PUBLICA

This section contains 20 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PUBLICA. Key components include: DISC WHEEL & WHEEL CAP, BOLT, HUB (FOR FRONT AXLE), DRUM SUB-ASSY, FRONT BRAKE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), BOLT, SET (FOR FRONT BRAKE DRUM SETTING).
