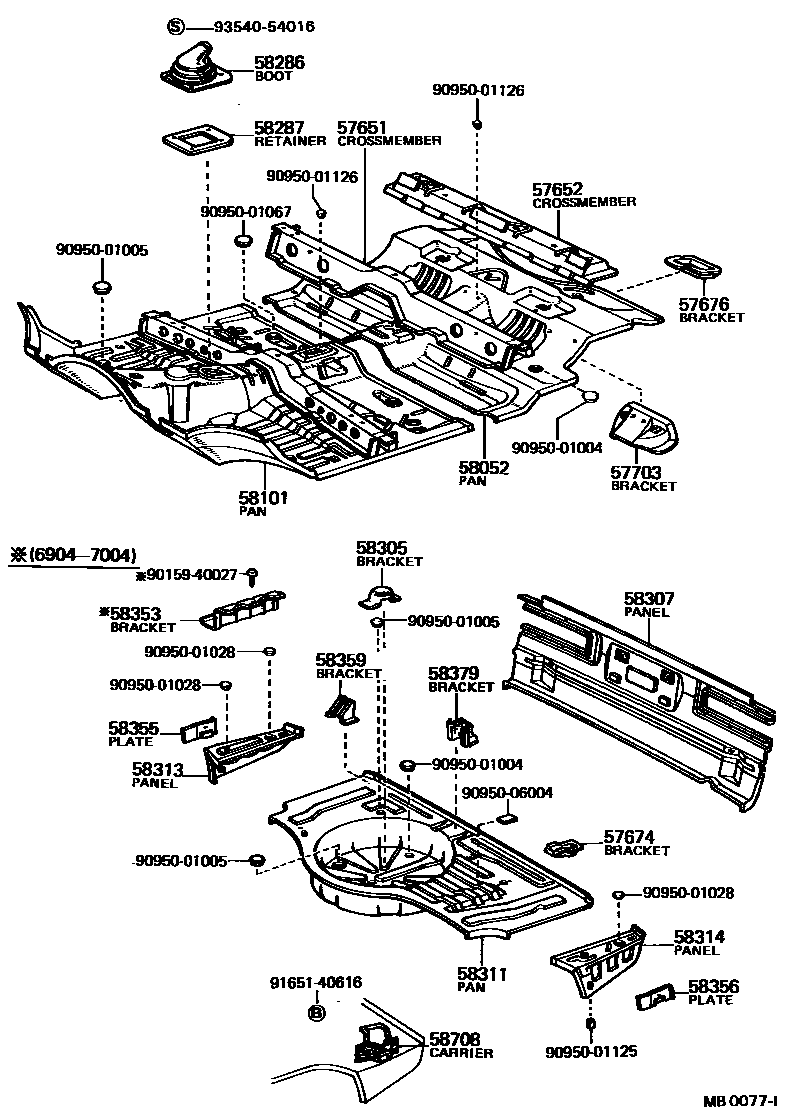

Toyota PUBLICA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

57651CROSSMEMBER, REAR FLOOR, FRONT

main57651-10020iKP30,31197201-197310

main57651-10021iKP30,31,50197310-197802

57652CROSSMEMBER, REAR FLOOR, NO.2

main57607-10012iKP30,31,50197201-197802

57674BRACKET, MUFFLER HANGER SUPPORT, NO.3

main57658-10021iKP50197601-197802

57676BRACKET, MUFFLER HANGER SUPPORT, NO.2

main57657-10010iKP50197601-197802

57703BRACKET SUB-ASSY, DIFFERENTIAL CARRIER BUMPER

main58349-10010iKP30,31,50197201-197802

58052PAN SUB-ASSY, CENTER FLOOR

main58202-11010iKP36,37..V197201-197310

main58202-11011iKP36,37..V197310-197809

main58211-10091iKP30,31197201-197310

main58211-10092iKP30,31,50197310-197802

58101PAN SUB-ASSY, FRONT FLOOR

main58101-10022iKP3#..(SED,V)..4F197201-197304

main58101-10023iKP3#..(SED,V)..4F197304-197310

main58101-10024iKP3#..(SED,V)..4F197310-197511

main58101-10051iKP30..2FC197201-197310

main58101-10052iKP30..2FC197310-197511

main58101-10120iKP37,50..(SED,V)..MTM197511-197809

main58101-10140iKP50..2FC197610-197802

main58101-96402iKP36..PIC197201-197304

main58101-96403iKP37..PIC197201-197304

main58101-96406iKP36..PIC197304-197310

main58101-96407iKP37..PIC197304-197310

main58101-96409iKP36..PIC197310-197511

main58101-96410iKP37..PIC197310-197511

main58101-96412iKP3#..PIC197511-198109

main58111-96402iKP3#198109-198808

RH

main58112-96402iKP3#198109-198808

LH

main58113-96403iKP3#198109-198808

CTR

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-10010iKP3#..4F197004-197511

main58286-10011iKP3#,50..MTM197511-198808

main58286-12011iKP3#..4F196904-197004

main58549-10020iUP3#196904-197112

58287RETAINER, SHIFT LEVER BOOT

main58287-10010iKP3#..4F197004-197511

main58287-10011iKP3#,50..MTM197511-198808

main58287-12010iKP3#..4F196904-197004

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iKP30,31,50,UP30196904-197802

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-10070iKP30,31,UP30196904-197112

main58307-10071iKP30,31,50197201-197802

main58307-11010iKP36,37,UP36..V196904-197801

main58307-11011iKP37..V197801-197809

main58307-11020iKP36..PIC196911-197112

main58307-96400iKP36,37..PIC197201-197609

main58307-96401iKP3#..PIC197609-198808

58311PAN, REAR FLOOR

main58301-11070iKP36,37,UP36..V196904-197205

main58301-11071iKP36,37..V197205-197809

main58311-10050iKP30,31,UP30196904-197112

main58311-10051iKP30,31,50197201-197802

main58311-11080iKP36,37..PIC196911-197609

main58311-96400iKP3#..PIC197609-198808

58313PANEL, REAR FLOOR SIDE, RH

main57661-11020iKP36,37,38,39..PIC196911-198808

main58313-10010iKP30,31,50,UP30196904-197802

58314PANEL, REAR FLOOR SIDE, LH

main57662-11020iKP36,37..PIC196911-197203

main57662-96400iKP36,37..PIC197203-197205

main57662-96401iKP36,37,38,39..PIC197205-198808

main58314-10010iKP30,31,UP30196904-197112

main58314-10011iKP30,31,50197201-197802

58353BRACKET, REAR FLOOR TOOL

main58353-10030iKP30,UP30196904-197004

58355PLATE, LUGGAGE COMPARTMENT SIDE, RH

main58318-10010iKP30,UP30196904-197003

main58318-10011iKP30,31,UP30197003-197112

main58318-10012iKP30,31,50197201-197802

58356PLATE, LUGGAGE COMPARTMENT SIDE, LH

main58319-10010iKP30,UP30196904-197003

main58319-10011iKP30,31,UP30197003-197112

main58319-10012iKP30,31,50197201-197802

58359BRACKET, REAR BUMPER STAY

main58355-10011×2iKP30,31,50197201-197802

58379BRACKET, LUGGAGE DOOR LOCK STRIKER, SUB

main58376-10010iKP30,31,UP30196904-197112

58708CARRIER SUB-ASSY, JACK

main58790-10010iKP30,31,UP30196904-197112

main58790-10011iKP30,31,50197201-197802

9015940027

main90159-40027

9095001004

main90950-01004

9095001005

main90950-01005

9095001028

main90950-01028

9095001067

main90950-01067

9095001125

main90950-01125

9095001126

main90950-01126

9095006004

main90950-06004

9165140616

main91651-40616

9354054016

main93540-54016

30 parts on this diagram · 4 diagrams in section
