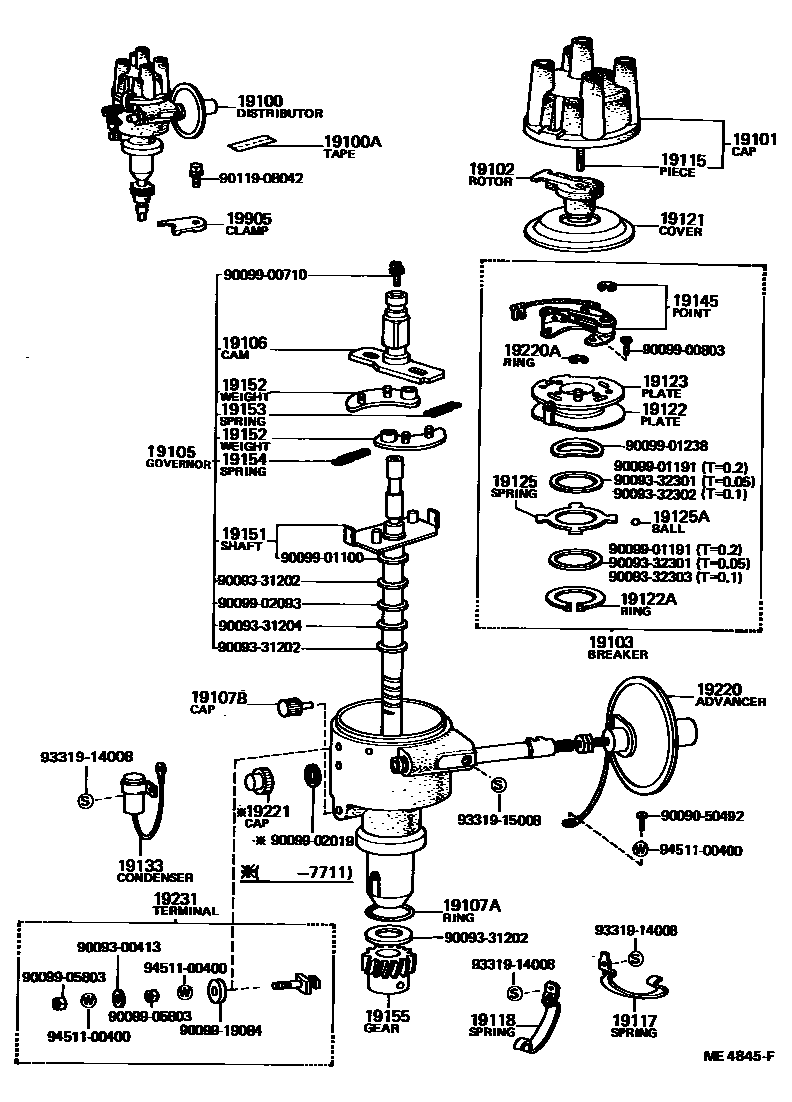

Toyota PUBLICA — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1

19100DISTRIBUTOR ASSY

main19100-10012i2UC..UP3#196904-197112

sub19100-10013

main19100-13270i4KJ..KP39198201-198808

sub19100-13250

main19100-22010i3KBR..KP31197103-197112

main19100-22030iKB,3KB..KP30,31196904-197112

main19100-22031i3KB..KP31197201-197304

main19100-24020i3K..KP31,37197010-197304

main19100-24030i3KBR..KP31197201-197304

main19100-24050i2K,3K..KP3#197304-197511

sub19100-24120

main19100-24060i3KB..KP31197304-197501

sub19100-24061

main19100-24070i3KBR..KP31197304-197511

main19100-24081i3KU..KP50..MTM197601-197802

main19100-24100i3KHJ..KP37197511-197711

main19100-24101i3KHJ..KP3#197711-198201

sub19100-13140

main19100-24150i3KU..KP50..2FC197610-197802

19100ATAPE, SEALING

main90919-24004i3K#,4KJ..KP3#,50197711-198808

L=70

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-10010i2UC..UP3#196904-197112

main19101-21011iKB,2K,3K,3KB#..KP3#196904-197511

main19101-25070i4KJ..KP39198201-198808

main19101-31013i3KHJ..KP3#197511-198201

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-22010iKB,2K,3K,3KB#..KP3#196904-197205

main19102-22011i3KBR..KP31197205-197404

main19102-22012i3KHJ..KP38197910-198201

sub19102-24121

main19102-33012i3KU..KP50197601-197802

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-10011i2UC..UP3#196904-197112

main19103-13070i4KJ..KP39198201-198808

main19103-22011i2K,3K,3KBR..KP3#196904-197112

main19103-22030iKB,3KB..KP30,31196904-197112

main19103-38011i3KU..KP50197601-197802

19105GOVERNOR SUB-ASSY

main19105-10012i2UC..UP3#196904-197112

main19105-13140i4KJ..KP39198201-198808

main19105-22011i2K..KP3#196904-196909

sub90099-00710

main19105-22020i2K,3K..KP3#196909-197102

main19105-22021i2K..KP30,36197203-197304

main19105-22030iKB,3KB..KP30,31196904-197112

main19105-22031i3KB..KP31197201-197404

main19105-24020i3K..KP31,37197103-197203

main19105-24030i3KBR..KP31197201-197202

main19105-24060i3KB..KP31197404-197501

main19105-24081i3KU..KP50..MTM197601-197802

main19105-24100i3KHJ..KP3#197511-198201

main19105-24150i3KU..KP50..2FC197610-197802

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-10013i2UC..UP3#196904-197112

main19106-25021i3KU..KP50..2FC197610-197802

main19106-33021i4KJ..KP39198201-198808

main19106-38010i3KU..KP50..MTM197601-197802

main19106-40021iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14007i2UC..UP3#196904-197112

main90099-14020iKB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50196904-198808

sub90099-14090

19107BCAP, OIL(FOR DISTRIBUTOR HOUSING)

main90099-50002iKB,2K..KP3#196904-197010

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010iKB,2K,3K,3KB#,3KHJ,3KU,4KJ..KP3#,50196904-198808

19117SPRING, DISTRIBUTOR CAP, A

main19117-24080i3KU..KP50197601-197802

main19117-30030iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19118SPRING, DISTRIBUTOR CAP, B

main19117-24080i3KU..KP50197601-197802

main19118-30030iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19121COVER, DUST PROOF

main19121-10010iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

main19121-25070i3KU..KP50197601-197610

main19121-28010i3KU..KP50197611-197802

main19121-38030i3KU..KP50197610-197611

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-13070i4KJ..KP39198201-198808

main19122-29021iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

main19122-33013i3KU..KP50197601-197802

19122ARING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE)

main90099-07081iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19123PLATE, DISTRIBUTOR BREAKER

main19123-10011i2UC..UP3#196904-197112

main19123-41011iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19125SPRING(FOR DISTRIBUTOR STATIONARY PLATE)

main19125-30010iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19125ABALL, DISTRIBUTOR STATIONARY PLATE

main90099-12003×4iKB,2K,3K,3KB#,3KHJ..KP3#196904-198201

19133CONDENSER, DISTRIBUTOR

main19133-10010i2UC..UP3#196904-197511

main90099-52059i4KJ..KP39198201-198808

main90099-52060i3KHJ..KP3#197511-198201

19145POINT, DISTRIBUTOR

main04191-40010i2UC..UP3#196904-197112

main04191-41010i3KU..KP50197601-197802

main19145-26060i3KHJ,4KJ..KP3#197511-198808

main19145-41010iKB,2K,3K,3KB#..KP3#196904-197511

19151SHAFT, GOVERNOR

main19151-10013i2UC..UP3#196904-197112

main19151-22031i2K,3K,3KB#,3KHJ..KP3#197201-198201

main19151-23010iKB..KP30196904-196908

main19151-24080i3KU..KP50197601-197605

main19151-24081i3KU..KP50197605-197802

main19151-40023i2K..KP3#196904-196908

19152WEIGHT, GOVERNOR

main19152-30010×2i2UC..UP3#196904-197112

main19152-32010×2iKB,2K,3K,3KB#,3KHJ..KP3#196904-197708

main19152-45060×2i4KJ..KP39198201-198808

sub19152-44170

main19152-87104×2i3KHJ..KP3#197708-198201

19153SPRING, GOVERNOR, A

main19153-10013i2UC..UP3#196904-197112

main19153-13140i4KJ..KP39198201-198808

main19153-22011i2K..KP30,36196909-197304

main19153-22030i3KB..KP31196909-197404

main19153-24012i3KB..KP31197404-197501

main19153-24020i3K..KP31197010-197112

main19153-24081i3KU..KP50197601-197802

main19153-24100i3KHJ..KP3#197511-198201

main19153-41020i2K..KP3#196904-196909

19154SPRING, GOVERNOR, B

main19154-13140i4KJ..KP39198201-198808

main19154-22010i2K,3K,3KBR..KP3#196904-197511

main19154-22030iKB,3KB..KP30,31196904-197404

main19154-24060i3KB..KP31197404-197501

main19154-24081i3KU..KP50197601-197802

main19154-24100i3KHJ..KP3#197511-198201

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-10010i2UC..UP3#196904-197112

main19195-22010iKB,2K,3K,3KB#..KP3#196904-197112

main19195-22031i3KB#..KP31197201-197511

main19195-24020i2K,3K,3KHJ..KP3#197203-198201

main19195-24080i3KU..KP50197601-197605

main19195-24081i4KJ..KP39198201-198808

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-10014i2UC..UP3#196904-197112

main19220-13250i4KJ..KP39198201-198808

main19220-22011i3KBR..KP31197103-197112

main19220-22030iKB,3KB..KP30,31196904-197404

main19220-24020i3K..KP31,37197201-197304

main19220-24060i3KB..KP31197404-197501

main19220-24070i2K,3K,3KBR..KP3#197404-197511

main19220-24081i3KU..KP50..MTM197601-197802

main19220-24100i3KHJ..KP37197511-197711

sub19220-22042

main19220-24101i3KHJ..KP3#197711-198201

main19220-24150i3KU..KP50..2FC197610-197802

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07011iKB,2K,3K,3KB#..KP3#196904-197112

main90099-07104i3KB#..KP31197201-197304

main90099-07109i4KJ..KP39198201-198808

19221CAP, ADJUSTER, DISTRIBUTOR

main19221-30030i3KU..KP50197711-197802

sub19221-60040

19231TERMINAL, DISTRIBUTOR

main19231-10010i2UC..UP3#196904-197112

main19231-22010iKB,2K,3K,3KB#,3KHJ..KP3#196904-197711

main19231-25070i3KU..KP50197601-197610

main19231-38011i4KJ..KP39198201-198808

main19231-44111i3KU..KP50197610-197802

main19231-45020i3KHJ..KP3#197711-198201

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19905-10010i2UC..UP3#196904-197112

main19955-24010i3K#..KP3#,50197601-198201

main19955-33010iKB,2K,3K,3KB#,3KHJ..KP3#196904-197601

9009050492

main90090-50492

9009300413

main90093-00413

9009331202

main90093-31202

9009331204

main90093-31204

9009332301

main90093-32301

9009332302

main90093-32302

9009332303

main90093-32303

9009900710

main90099-00710

9009900803

main90099-00803

9009901100

main90099-01100

9009901191

main90099-01191

9009901238

main90099-01238

9009902019

main90099-02019

9009902093

main90099-02093

9009905803

main90099-05803

9009919084

main90099-19084

9011908042

main90119-08042

9331914008

main93319-14008

9331915008

main93319-15008

9451100400

main94511-00400

50 parts on this diagram · 4 diagrams in section
