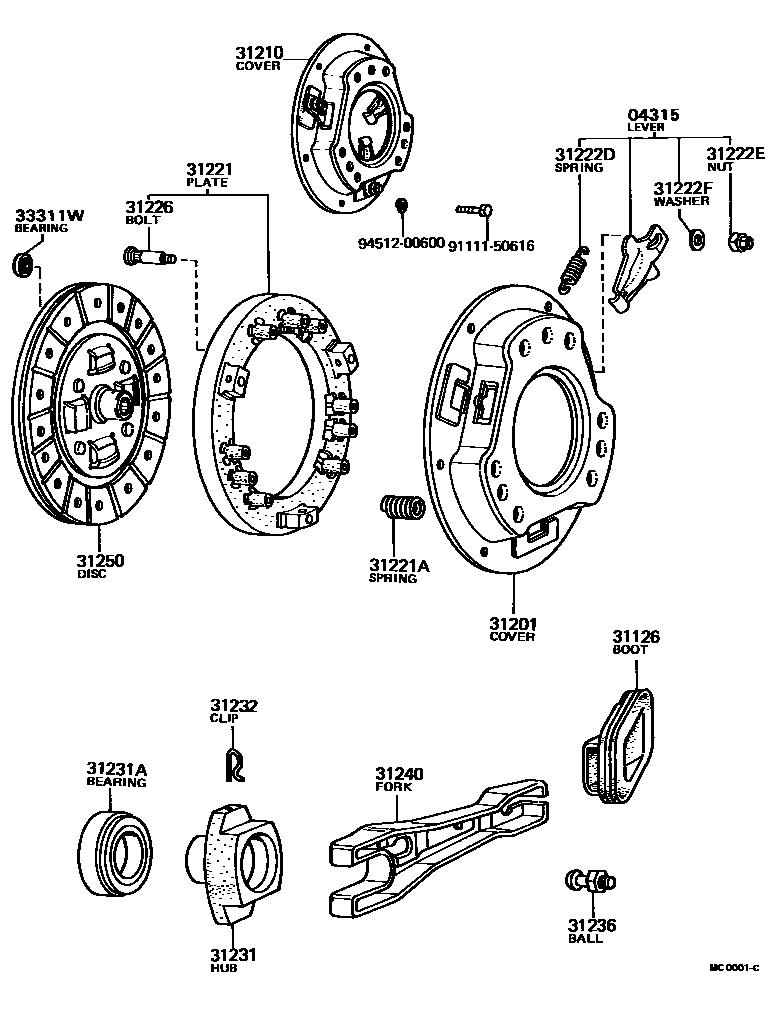

Toyota PUBLICA — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

04315LEVER KIT, CLUTCH PRESSURE

main04315-10020iUP3#196904-197112

31126BOOT, CLUTCH RELEASE FORK

main31126-10010iUP3#196904-197112

main31126-10030iKP50..5F197606-197802

main31126-12010iKP3#..4F196904-197010

main31126-12011iKP3#..4F197010-197404

main31126-12020iKP3#,50..4F197404-198508

main31126-12040iKP39198508-198808

31201COVER SUB-ASSY, CLUTCH

main31201-10040iUP3#196904-197112

main31201-12010iKP30,36..4F197201-197404

main31201-12020iKP30..SL196904-196908

31210COVER ASSY, CLUTCH

main31210-10040iUP3#196904-197011

main31210-10050iUP3#197011-197112

sub31210-11020

main31210-12011iKP3#..4F..(DLX,STD)196904-197008

main31210-12012iKP30,36..4F197008-197105

main31210-12013iKP30,36..4F197105-197404

main31210-12021iKP30..SL196904-197008

main31210-12022iKP31..4F197008-197105

main31210-12023iKP31,37..4F197105-197404

sub31210-12024

main31210-12040iKP3#,50..MTM197404-197708

main31210-12041iKP3#,50..MTM197708-197908

main31210-12042iKP38197908-198008

main31210-12043iKP38198008-198201

main31210-12052iKP39198201-198808

sub31210-12053

31221PLATE, CLUTCH PRESSURE

main31202-10040iUP3#196904-197112

main31221-12010iKP30,36..4F..(DLX,STD)196904-197112

main31221-12020iKP30..SL196904-196908

31221ASPRING, COMPRESSION(FOR CLUTCH)

main90501-29276×9iUP3#196904-197112

31222DSPRING, TENSION(FOR CLUTCH PRESSURE LEVER)

main90506-08036×3iUP3#196904-197112

31222ENUT(FOR CLUTCH PRESSURE LEVER ADJUST)

main90179-08023×3iUP3#196904-197112

31222FWASHER(FOR CLUTCH PRESSURE LEVER)

main90201-08058×3iUP3#196904-197112

31226BOLT, CLUTCH PRESSURE PLATE

main90114-08017×3iUP3#196904-197112

31231HUB, CLUTCH RELEASE BEARING

main31231-10010iUP3#196904-197112

main31231-12011iKP3#..4F196904-197004

main31231-12012iKP3#..4F197004-197404

main31231-12030iKP3#,50..MTM197404-197708

main31231-12031iKP37,50..MTM197708-197903

main31231-12032iKP3#197903-198010

main31231-12033iKP3#198010-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-28032iUP3#196904-197112

main90363-33002iKP3#197808-198204

main90363-33004iKP39198204-198808

main90363-33030iKP3#..4F196904-197106

main90363-33057iKP3#..4F197106-197211

main90363-33077iKP3#..4F197211-197404

sub90363-33001

main90363-33080iKP3#,50..MTM197404-197808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-10010×2iUP3#196904-197112

main31232-12010×2iKP31,37,38,39,50..MTM197201-198808

main31232-30010×2iKP30,36..4F197201-197511

31236BALL, RELEASE FORK

main31236-10010iUP3#196904-197112

main31236-30030iKP3#,50..MTM197404-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-10020iUP3#196904-197112

main31204-10040iKP50..5F197606-197802

main31204-12010iKP3#,50..4F197404-198010

main31204-12011iKP3#198010-198508

main31204-12031iKP39198508-198808

main31240-12010iKP3#..4F196904-197004

main31240-12021iKP3#..4F197004-197404

31250DISC ASSY, CLUTCH

main31250-10011iUP3#196904-197112

sub31250-11010

main31250-12012iKP3#196904-196905

sub31250-12013

main31250-12021iKP31,37,38,50..MTM197005-198012

main31250-12030iKP3#..4F197004-197005

main31250-12031iKP30,36..4F197005-197511

main31250-12070iKP3#198012-198409

main31250-12071iKP39198409-198808

sub31250-12072

main31250-19021iKP3#..4F196905-197004

sub31250-19022

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKP3#198010-198808

main90364-11011iUP3#196904-197112

BT 78

main97123-06001iKP3#,50..MTM196904-198010

6001 ZZ C3

9111150616

main91111-50616

9451200600

main94512-00600

19 parts on this diagram · 3 diagrams in section
