Toyota PRONARD — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85291ABLADE, FRONT WIPER, WINTER, RH
85291BBLADE, FRONT WIPER, WINTER, LH
89941SENSOR, RAIN
89943COVER, RAIN SENSOR
89944TAPE, RAIN SENSOR
9008011432
main90080-11432
9011906814
main90119-06814
9017610005
main90176-10005
20 parts on this diagram · 1 diagram in section

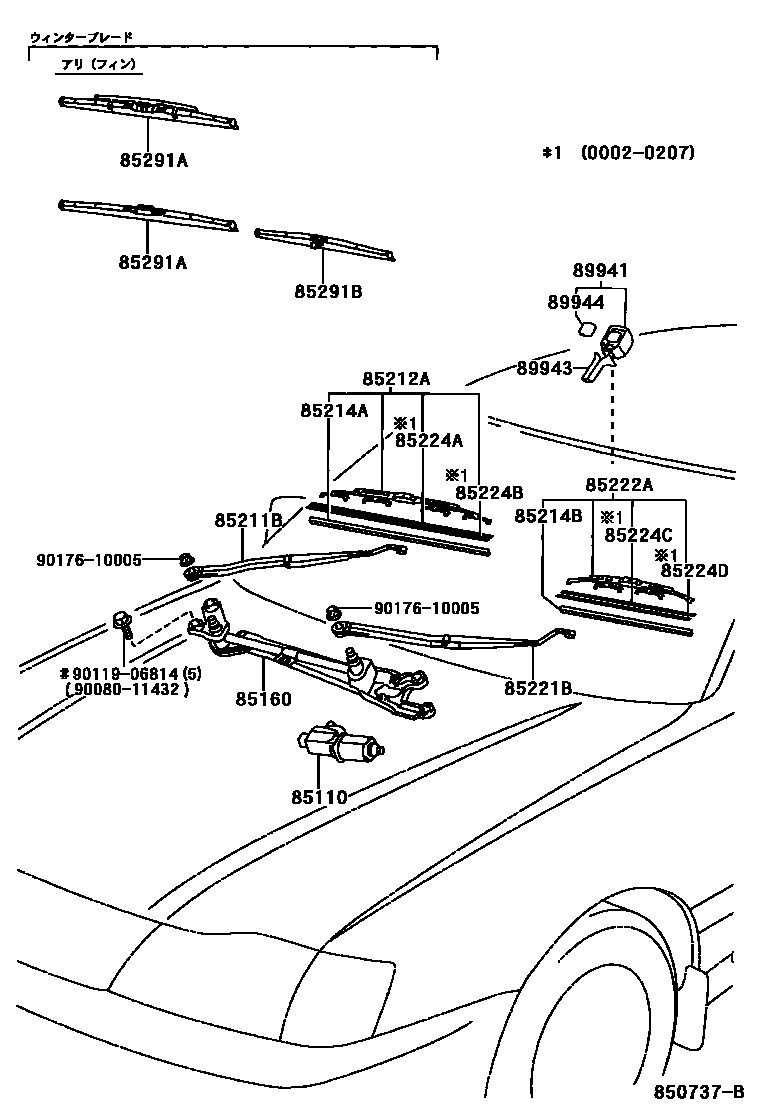

WINDSHIELD WIPER for Toyota PRONARD
This section contains 20 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PRONARD. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
