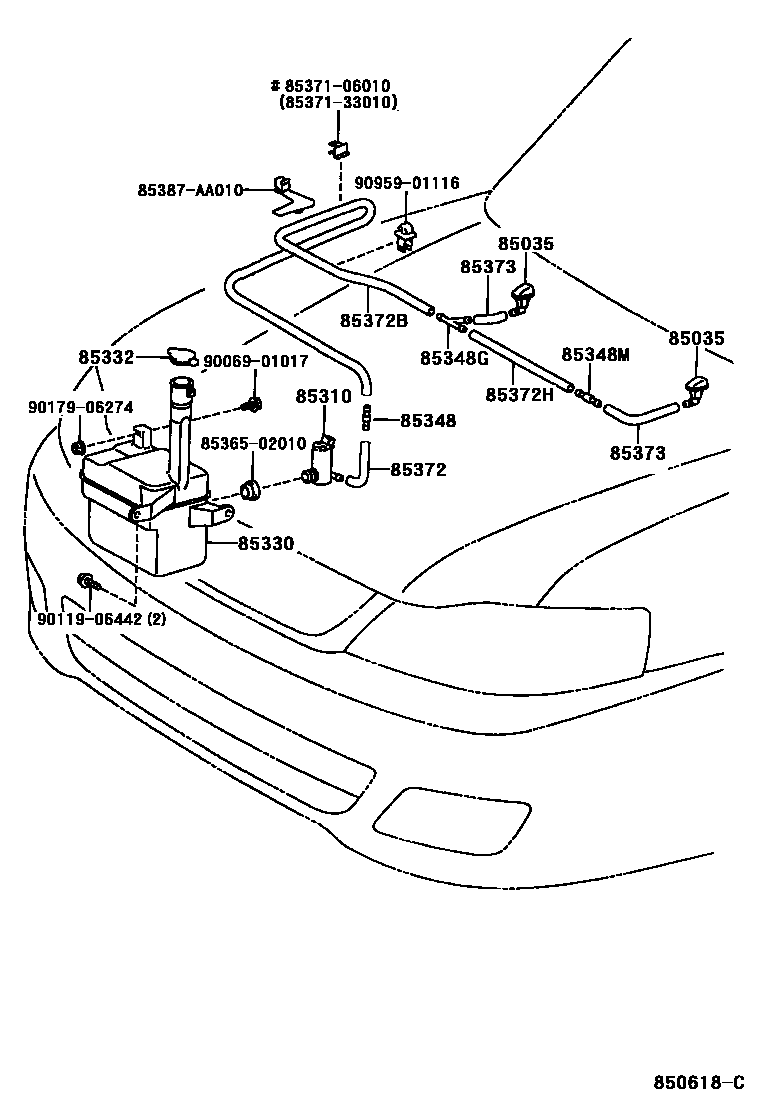

Toyota PRONARD — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85385-41090-A0×2i200002-200207

SU. WHITE PM,051

main85385-41090-B0×2i200207-200301

SILVER ME,1C8

main85385-41090-G0×2i200002-200207

GREEN MC,6R1

main85385-41090-J0×2i200207-200301

DK.BLUE MC.,8Q0

main85385-41130×2i200002-200207

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-06030i200002-200207

85330JAR ASSY, WINDSHIELD WASHER

main85315-07030i200002-200207

85332CAP, WINDSHIELD WASHER JAR

main85316-06020i200002-200004

main85316-06021i200207-200301

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-AA010i200002-200207

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-AA010i200002-200207

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-06020i200002-200207

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-07020i200002-200207

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-07030i200002-200207

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-07040i200002-200207

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200002-200207

8536502010INSULATOR, WINDSHIELD WASHER JAR

main85365-02010

8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-06010

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

85387AA010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-AA010

9006901017

main90069-01017

9011906442

main90119-06442

9017906274

main90179-06274

9095901116

main90959-01116

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PRONARD

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRONARD. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR, JOINT, WINDSHIELD WASHER HOSE, NO.1.
