Toyota PRONARD — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28176SCREW, STARTER
28199COVER, STARTER
28226STARTER KIT, BATTERY TERMINAL
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28254PINION, STARTER IDLE GEAR
9006804012
main90068-04012
9006812001
main90068-12001
9006814001
main90068-14001
9008011340
main90080-11340
9009904448
main90099-04448
9009904449
main90099-04449
9009905129
main90099-05129
9009905251
main90099-05251
9017908204
main90179-08204

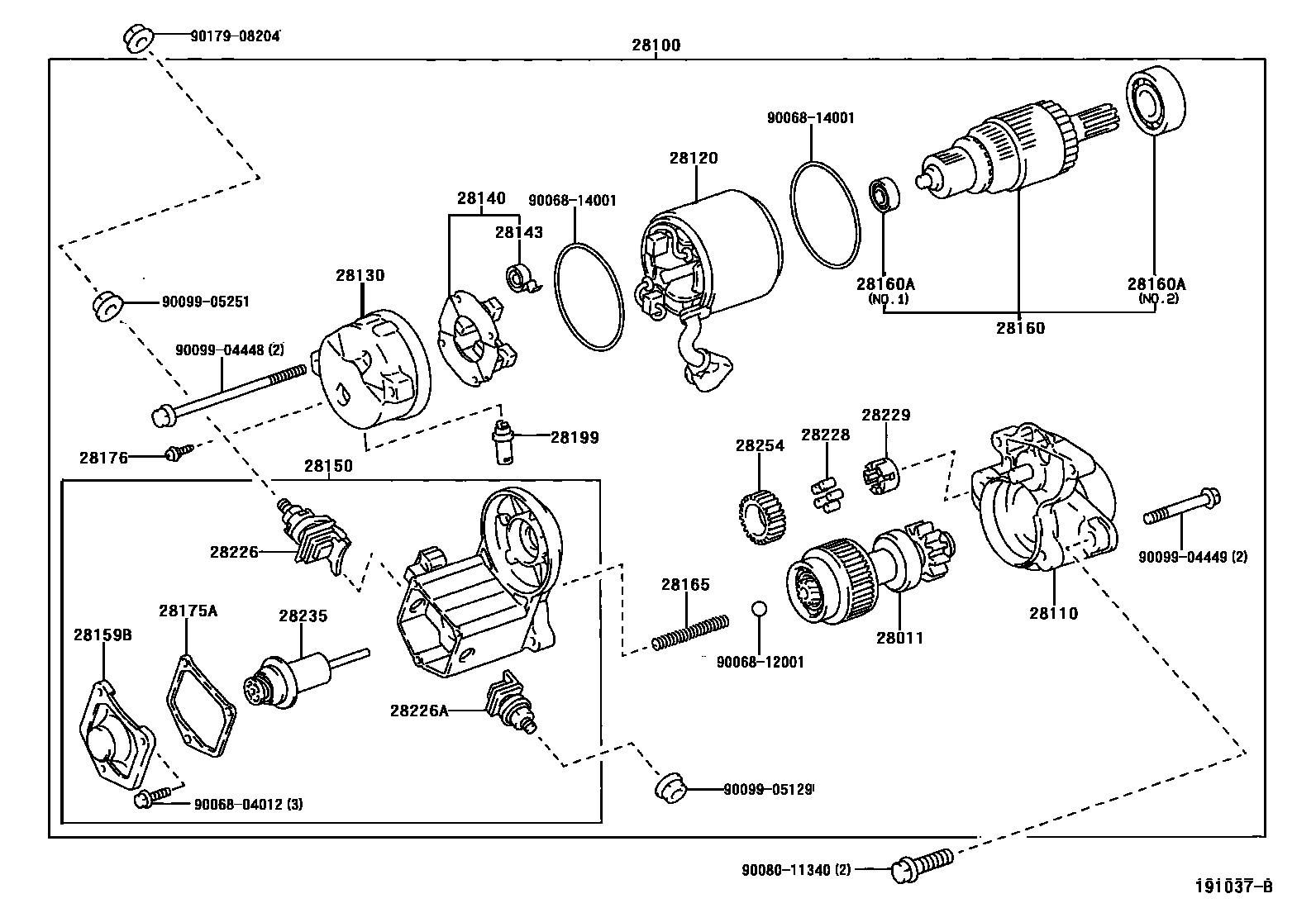

30 parts on this diagram · 1 diagram in section
STARTER for Toyota PRONARD
This section contains 30 genuine Toyota parts for the STARTER system of the Toyota PRONARD. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END.
