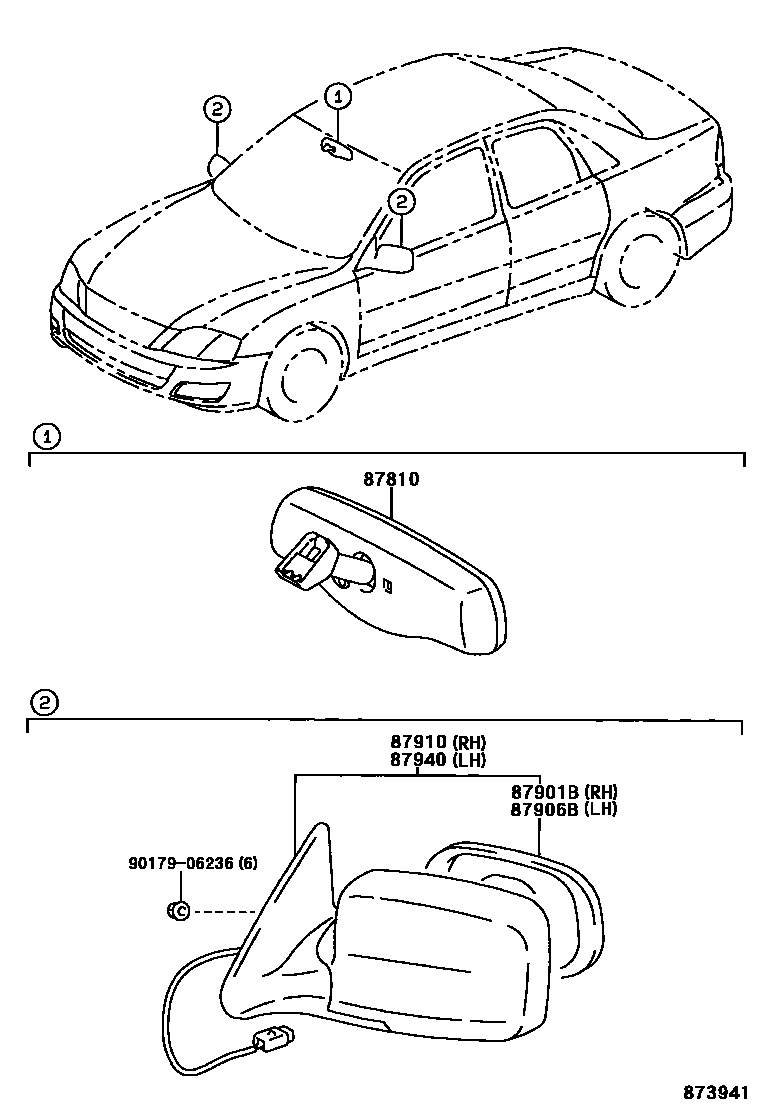

Toyota PRONARD — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-AC070i200002-200207

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-41080i200002-200207

main87931-41090i200207-200301

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-41050i200002-200207

main87961-41080i200207-200301

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-41080-A0i200002-200207

SU.WHITE PM,051

main87910-41080-B0i200002-200207

SLVER ME.,1C8

main87910-41080-G0i200002-200207

GREEN MC.,6R1

main87910-41090-A0i200207-200301

SU. WHITE PM.,051

main87910-41090-B0i200207-200301

SILVER ME.,1C8

main87910-41090-J0i200207-200301

DK.BLUE MC.,8Q0

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-41070-A0i200002-200207

SU.WHITE PM,051

main87940-41070-B0i200002-200207

SLVER ME.,1C8

main87940-41070-G0i200002-200207

GREEN MC.,6R1

main87940-41080-A0i200207-200301

SU. WHITE PM.,051

main87940-41080-B0i200207-200301

SILVER ME.,1C8

main87940-41080-J0i200207-200301

DK.BLUE MC.,8Q0

9017906236

main90179-06236

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota PRONARD

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota PRONARD. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
