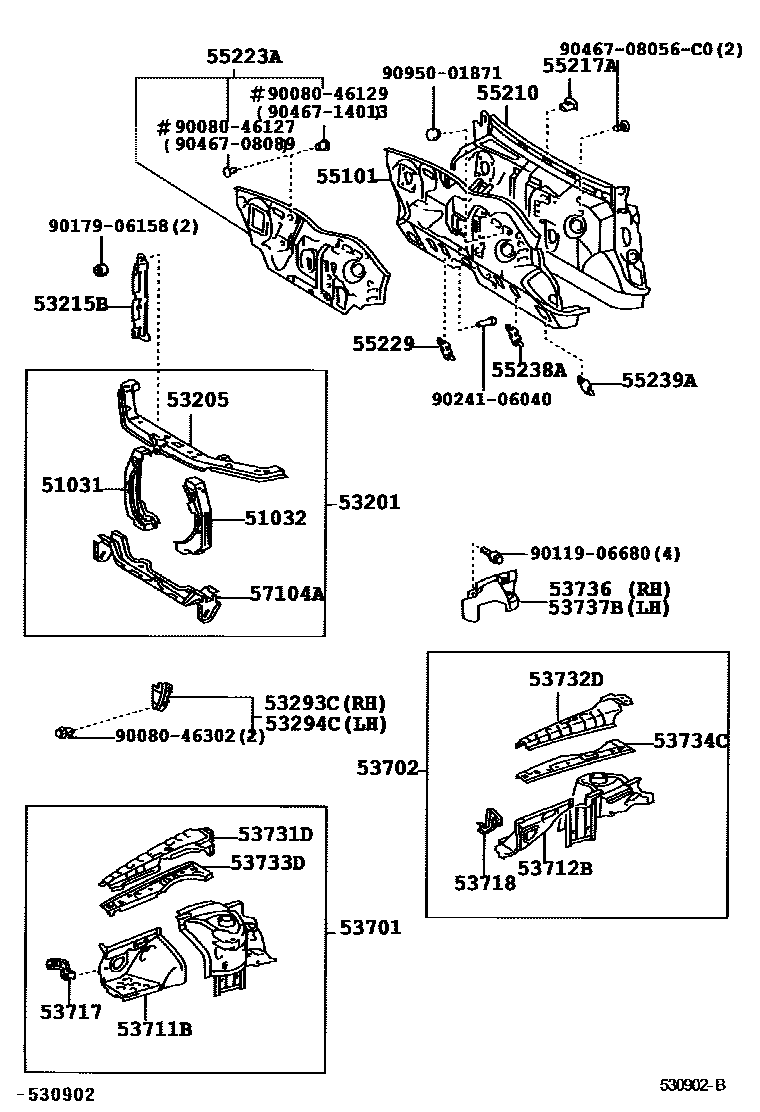

Toyota PRONARD — FRONT FENDER APRON & DASH PANEL
51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53215BSUPPORT, HOOD LOCK
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
55101PANEL SUB-ASSY, DASH
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55238APLATE, DASH PANEL INSULATOR, NO.2
55239APLATE, DASH PANEL INSULATOR, NO.3
57104AMEMBER SUB-ASSY, FRONT CROSS
9008046127
main90080-46127
9008046129
main90080-46129
9008046302
main90080-46302
9011906680
main90119-06680
9017906158
main90179-06158
9024106040
main90241-06040
9046708056C0
main90467-08056C0
9046708089
main90467-08089
9046714013
main90467-14013
9095001871
main90950-01871
37 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota PRONARD
This section contains 37 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota PRONARD. Key components include: GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH, GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, HOOD LOCK.
