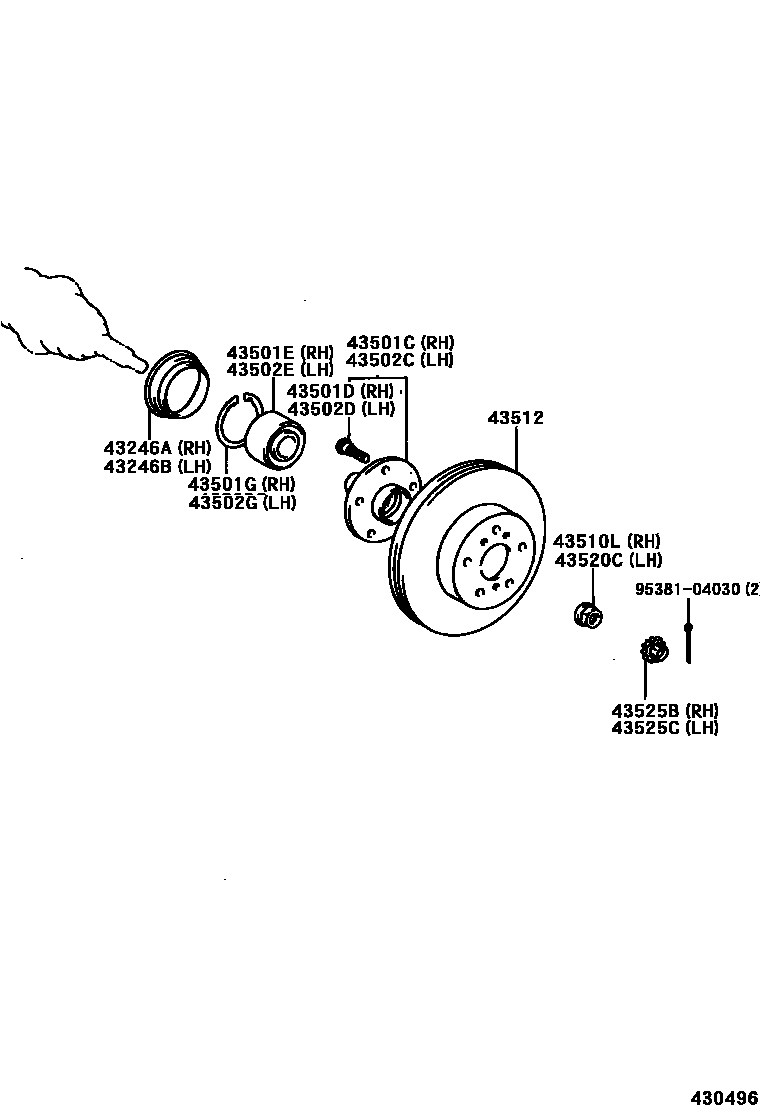

Toyota PRONARD — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-32020i200011-200109

main43246-AC020i200002-200011

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-32020i200207-200301

main43246-AC020i200002-200011

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-06020i200002-200207

main43502-33010i200002-200104

main43502-33030i200104-200207

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200002-200207

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36021i200002-200207

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001i200002-200207

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-06020i200002-200207

main43502-33010i200002-200104

main43502-33030i200104-200207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200002-200207

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36021i200002-200207

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001i200002-200207

43510LNUT (FOR STEERING KNUCKLE RH)

main90178-22001i200002-200207

43512DISC, FRONT

main43512-06030×2i200002-200008

main43512-06031×2i200008-200207

43520CNUT (FOR STEERING KNUCKLE LH)

main90178-22001i200002-200207

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-20030i200002-200207

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-20030i200002-200207

9538104030

main95381-04030

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota PRONARD

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PRONARD. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
