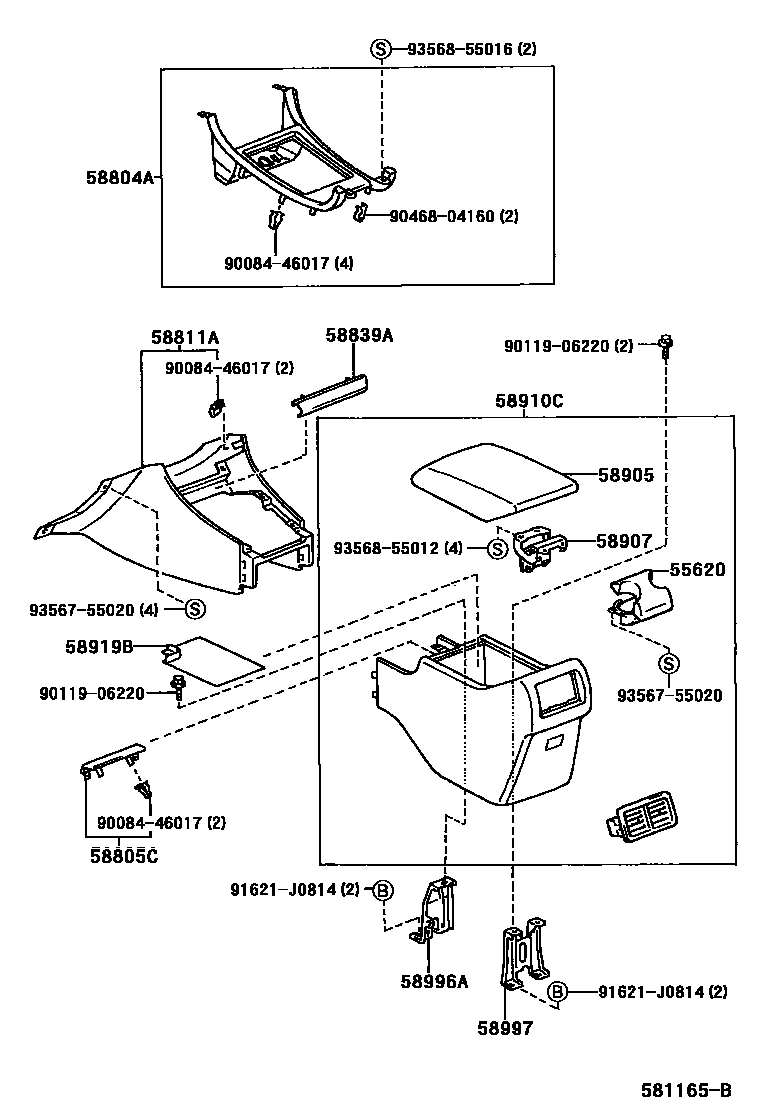

Toyota PRONARD — CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
SANDAL WOOD,TRIM0#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58811ABOX, CONSOLE, FRONT
IVORY,TRIM0#
FAWN,TRIM4#
58839ACOVER, CONSOLE BOX HOLE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
58919BPLATE, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9008446017
main90084-46017
9011906220
main90119-06220
9046804160
main90468-04160
91621J0814
main91621-J0814
9356755020
main93567-55020
9356855012
main93568-55012
9356855016
main93568-55016
18 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota PRONARD
This section contains 18 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota PRONARD. Key components include: HOLDER ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, BOX, CONSOLE, FRONT, COVER, CONSOLE BOX HOLE.
