Toyota PRONARD — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-AC040-A0i200002-200207

IVORY,TRIM0#

main74210-AC040-E0i200207-200301

FAWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-AC040-A0i200002-200207

IVORY,TRIM0#

main74220-AC040-E0i200207-200301

FAWN,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-AC020-A0i200002-200207

IVORY,TRIM0#

main74250-AC020-E0i200207-200301

FAWN,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-AC070i200002-200207

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-AC070i200002-200207

74240ARMREST ASSY, REAR, LH

main74260-AC020-A0i200002-200207

IVORY,TRIM0#

main74260-AC020-E0i200207-200301

FAWN,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-AC040i200002-200207

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-AC040i200002-200207

74310VISOR ASSY, RH

main74310-AC220-A0i200002-200009

IVORY,TRIM0#

main74310-AC221-A0i200009-200207

IVORY,TRIM0#

main74310-AC230-A0i200002-200009

main74310-AC231-A0i200009-200207

main74310-AC270-E0i200207-200210

FAWN,TRIM4#

main74310-AC271-E0i200210-200301

FAWN,TRIM4#

74317COVER, VISOR BRACKET, RH

main74317-AC010-E2i200207-200301

FAWN,TRIM4#

main74317-AC020-A0i200002-200207

IVORY,TRIM0#

74318COVER, VISOR BRACKET, LH

main74317-AC010-E2i200207-200301

FAWN,TRIM4#

main74317-AC020-A0i200002-200207

IVORY,TRIM0#

74320VISOR ASSY, LH

main74320-AC210-A0i200002-200009

IVORY,TRIM0#

main74320-AC211-A0i200009-200207

IVORY,TRIM0#

main74320-AC220-A0i200002-200009

main74320-AC221-A0i200009-200207

main74320-AC270-E0i200207-200210

FAWN,TRIM4#

main74320-AC271-E0i200210-200301

FAWN,TRIM4#

74325ASUPPORT, FRONT VISOR, NO.1

main74325-AC010-A0i200002-200207

IVORY,TRIM0#

74326ASUPPORT, FRONT VISOR, NO.2

main74326-AC010-A0i200002-200207

IVORY,TRIM0#

74348HOLDER, VISOR

main74348-12040-E0×2i200207-200301

FAWN,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-AC050-A0i200002-200207

IVORY,TRIM0#

main74610-AC050-E0×2i200207-200301

FAWN,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-AC040-A0×2i200002-200207

IVORY,TRIM0#

main74610-AC040-E0×2i200207-200301

FAWN,TRIM4#

74612COVER, ASSIST GRIP

main74612-AC010-A0×8i200002-200207

IVORY,TRIM0#

main74612-AC010-E0×8i200207-200301

FAWN,TRIM4#

74631BHOOK, COAT

main74631-AA010-A1×2i200002-200207

IVORY,TRIM0#

main74631-AA010-E0×2i200207-200301

FAWN,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

9008235012

main90082-35012

9008418003

main90084-18003

9008446005

main90084-46005

9015150022

main90151-50022

9015960370

main90159-60370

9015960503

main90159-60503

9016840025

main90168-40025

9353055020

main93530-55020

28 parts on this diagram · 1 diagram in section

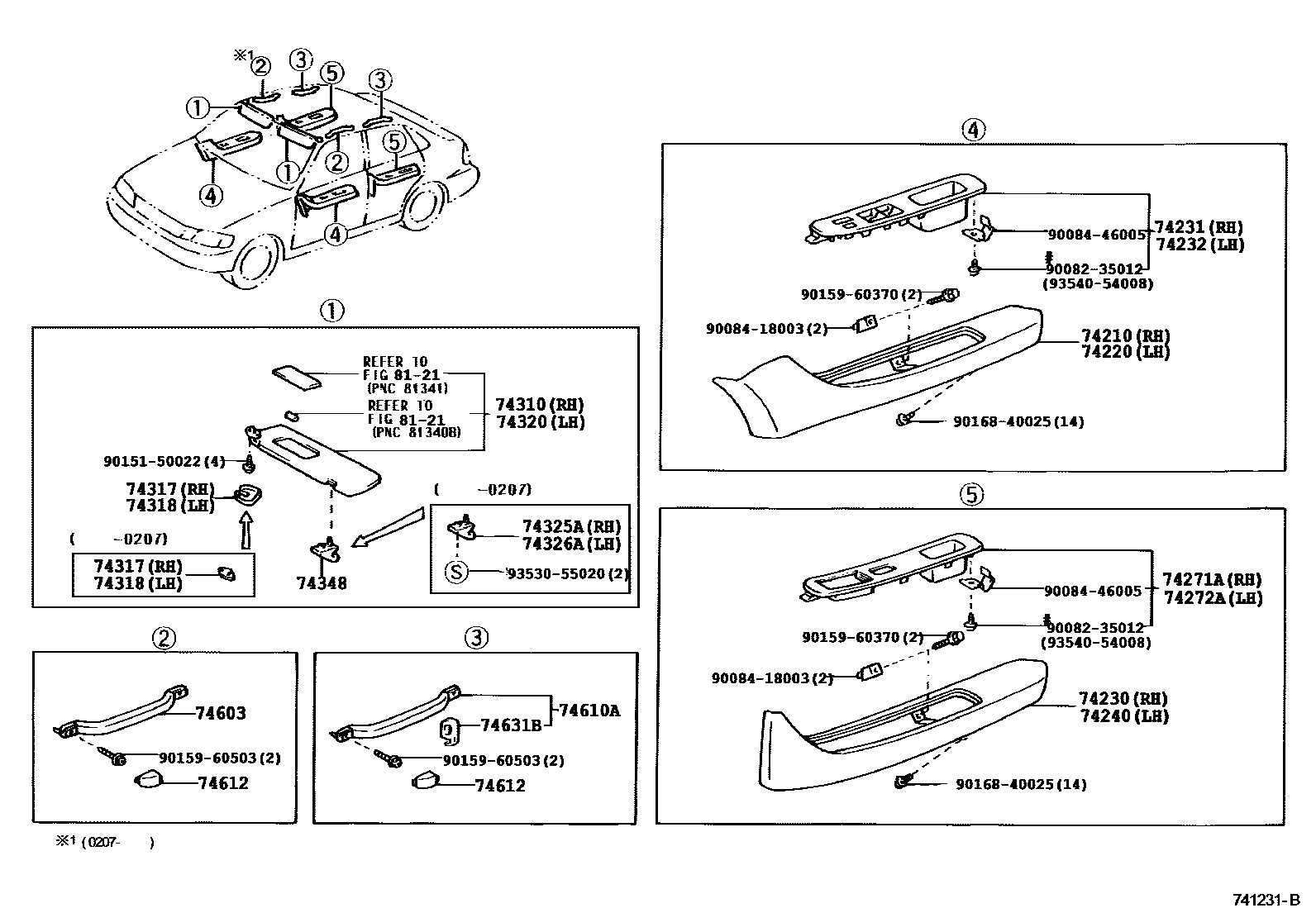

ARMREST & VISOR for Toyota PRONARD

This section contains 28 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PRONARD. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
