Toyota PROGRES — WATER PUMP

0001 1 0002 1 0003 1

1603

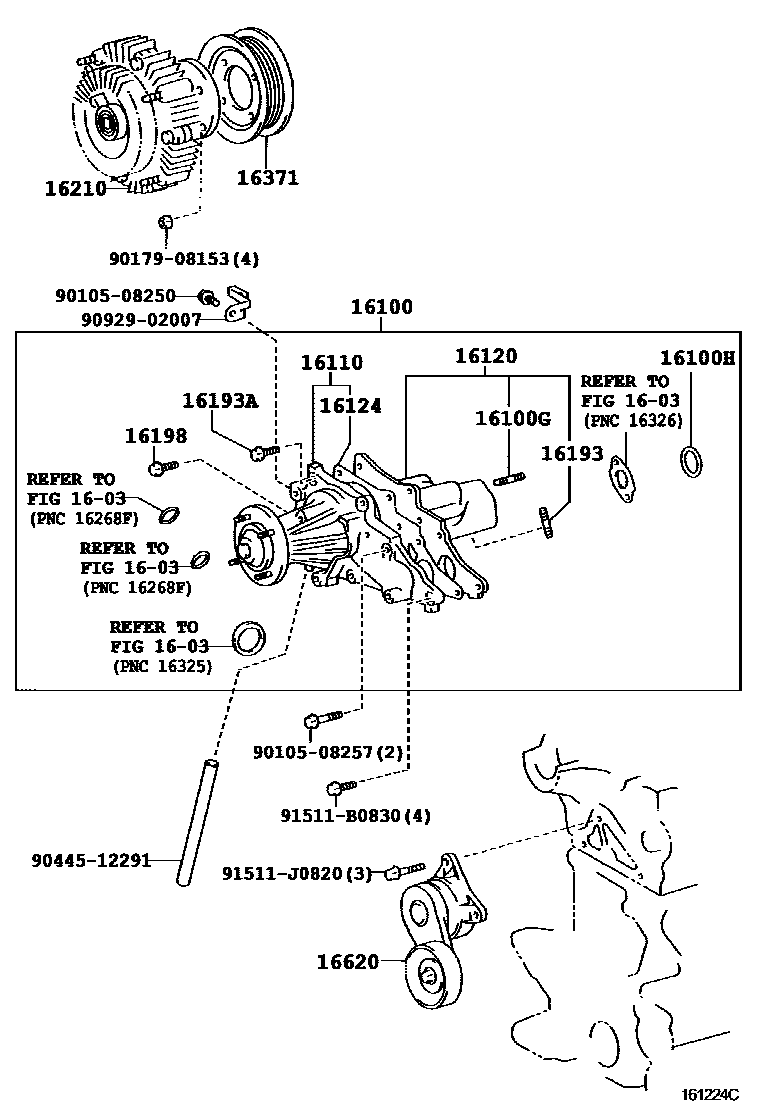

16100PUMP ASSY, ENGINE WATER

main16100-49836i2JZGE..JCG11199805-199911

sub16100-49837

main16100-49865i1JZGE..JCG10199805-199911

main16100-49866i1JZGE,2JZGE..JCG10,11199911-200006

main16100-49867i1JZFSE,2JZFSE..JCG10,11200104-200108

main16100-49868i1JZFSE,2JZFSE..JCG10,11200108

sub16100-80009

main16100-49875i1JZGE..JCG15199912-200104

main16100-49876i1JZFSE..JCG15200104

sub16100-49877

16100GBOLT, STUD(FOR WATER PUMP SET)

main92122-60816×2i1JZGE,2JZGE..JCG1#199805-200104

16100HRING, O(FOR WATER PUMP)

main96761-24040i1JZGE,2JZGE..JCG1#199805-200104

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49116i2JZGE..JCG11199805-199911

sub16100-49837

main16110-49145i1JZGE..JCG10199805-199911

main16110-49146i1JZGE,2JZGE..JCG10,11199911-200006

main16110-49147i1JZGE,2JZGE..JCG10,11200006-200104

main16110-49148i1JZFSE,2JZFSE..JCG10,11200108

main16110-49155i1JZGE..JCG15199912-200104

main16110-49156i1JZFSE..JCG15200104

16120COVER ASSY, WATER PUMP

main16102-46072i1JZFSE,2JZFSE..JCG1#200104-200108

main16102-46073i1JZFSE,2JZFSE..JCG1#200108

main16120-46080i1JZGE,2JZGE..JCG1#199911-200006

16124GASKET, WATER PUMP COVER

main16124-46041i2JZGE..JCG11199805-199911

main16124-46070i1JZFSE..JCG15200108

main16124-46071i1JZFSE,2JZFSE..JCG10,11200108

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46030×2i1JZGE,2JZGE..JCG1#199911-200104

16193ABOLT(FOR WATER PUMP COVER)

main16193-46040×3i2JZGE..JCG11199805-199911

main90029-00002×3i1JZGE..JCG10199805-199911

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16193-46040×2i2JZGE..JCG11199805-199911

main16198-46031i1JZGE..JCG10199805-199911

16210COUPLING ASSY, FLUID

main16210-46041i2JZGE..JCG11199805-199911

sub16210-46042

main16210-46051i1JZGE..JCG10199805-199911

main16210-46052i1JZFSE,2JZFSE..JCG10,11200104

16371PULLEY, FAN

main16371-46020i2JZGE..JCG11199805-199911

main16371-46030i1JZFSE,2JZFSE..JCG10,11200104

main16371-46040i1JZGE..JCG15199912-200104

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W014i1JZGE..JCG10,15199805-200006

main16620-0W015i1JZFSE..JCG10,15200104-200702

main16620-0W016i1JZFSE..JCG10,15200702

main16620-0W024i2JZGE..JCG11199805-200006

main16620-0W025i2JZFSE..JCG11200104-200702

main16620-0W026i2JZFSE..JCG11200702

9010508250

main90105-08250

9010508257

main90105-08257

9017908153

main90179-08153

9044512291

main90445-12291

9092902007

main90929-02007

91511B0830

main91511-B0830

91511J0820

main91511-J0820

20 parts on this diagram · 3 diagrams in section
