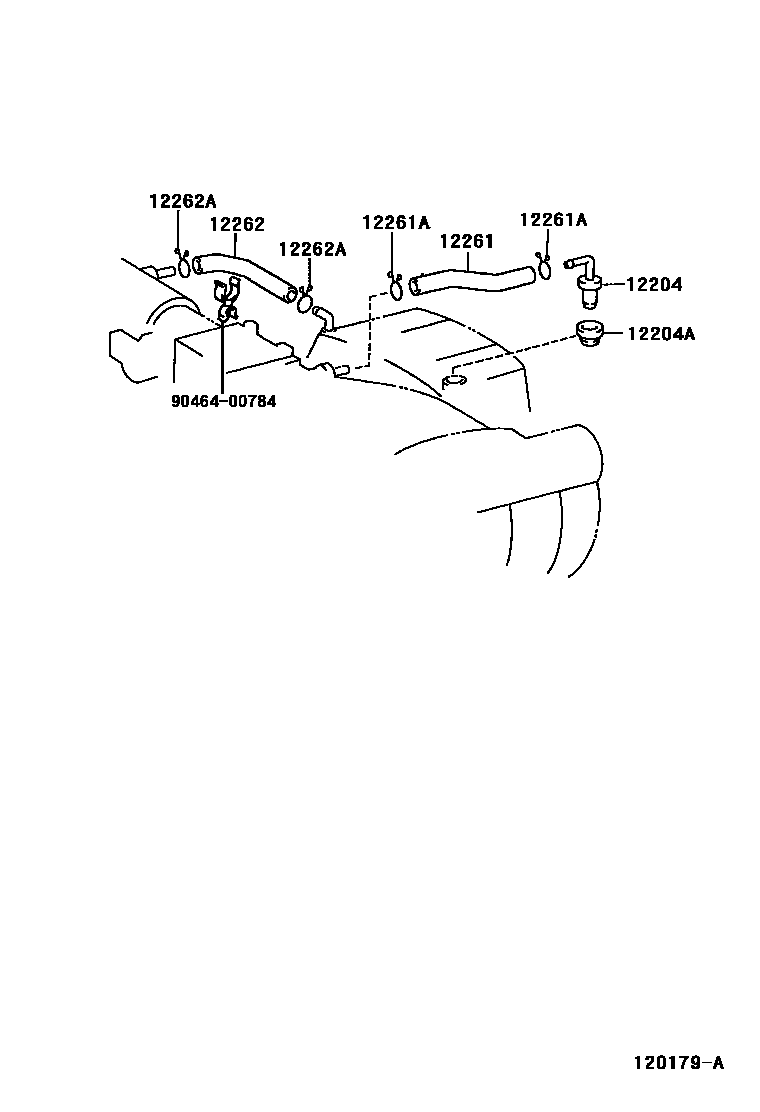

Toyota PROGRES — VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-46030i1JZGE,2JZGE..JCG1#199805-200104

main12204-46040i1JZFSE,2JZFSE..JCG1#200104

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1JZGE,2JZGE..JCG1#199805-200104

12261HOSE, VENTILATION

main12261-46050i1JZGE,2JZGE..JCG1#199805-200104

sub12261-46051

main12261-46070i1JZFSE,2JZFSE..JCG1#200104

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001×2i1JZGE,2JZGE..JCG1#199805-200104

12262HOSE, VENTILATION, NO.2

main12262-46070i1JZGE,2JZGE..JCG1#199805-200104

main12262-46100i1JZFSE,2JZFSE..JCG1#200104-200110

main12262-46101i1JZFSE,2JZFSE..JCG1#200110

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-18003×2i1JZGE,2JZGE..JCG1#199805-200104

9046400784

main90464-00784

7 parts on this diagram · 2 diagrams in section
