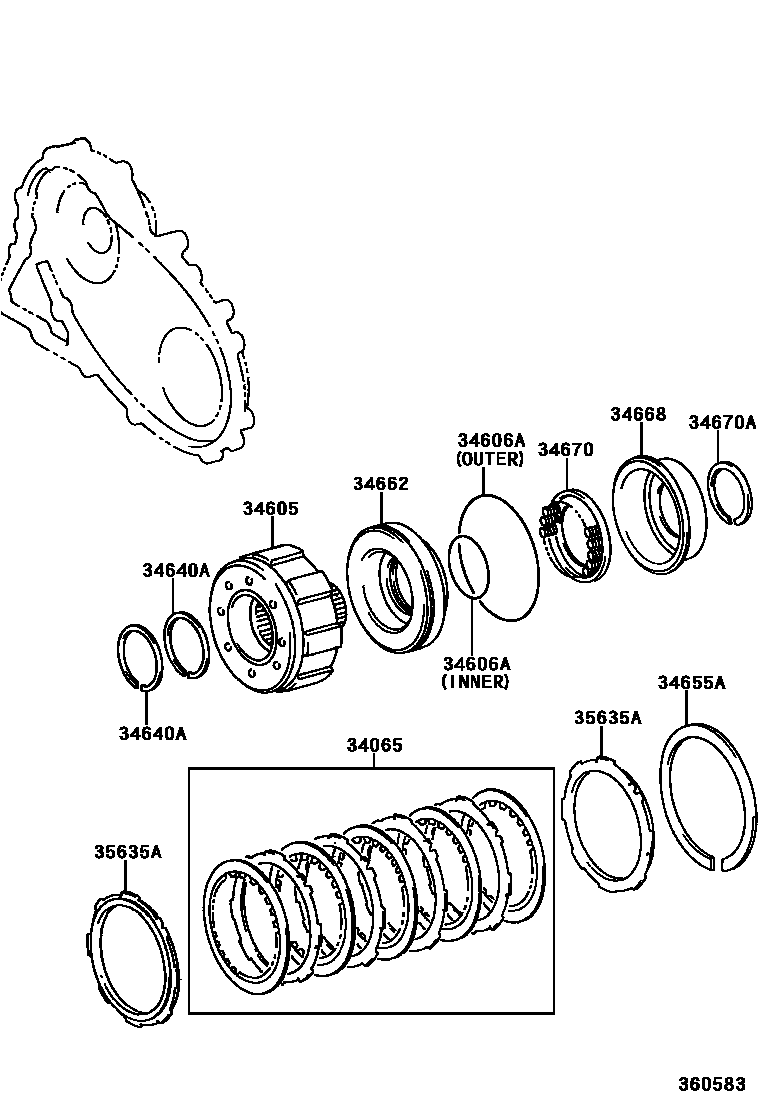

Toyota PROGRES — TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iJCG15199912-200104

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iJCG15199912-200104

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iJCG15200104

main90301-99058iJCG15199912-200104

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030×2iJCG15199912-200104

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iJCG15199912-200104

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iJCG15200104

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iJCG15199912-200104

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iJCG15199912-200104

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iJCG15199912-200104

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iJCG15199912-200104

main35635-30080iJCG15200104

main35635-30090×2iJCG15200109

main35635-50060×2iJCG15199912-200104

10 parts on this diagram · 1 diagram in section
