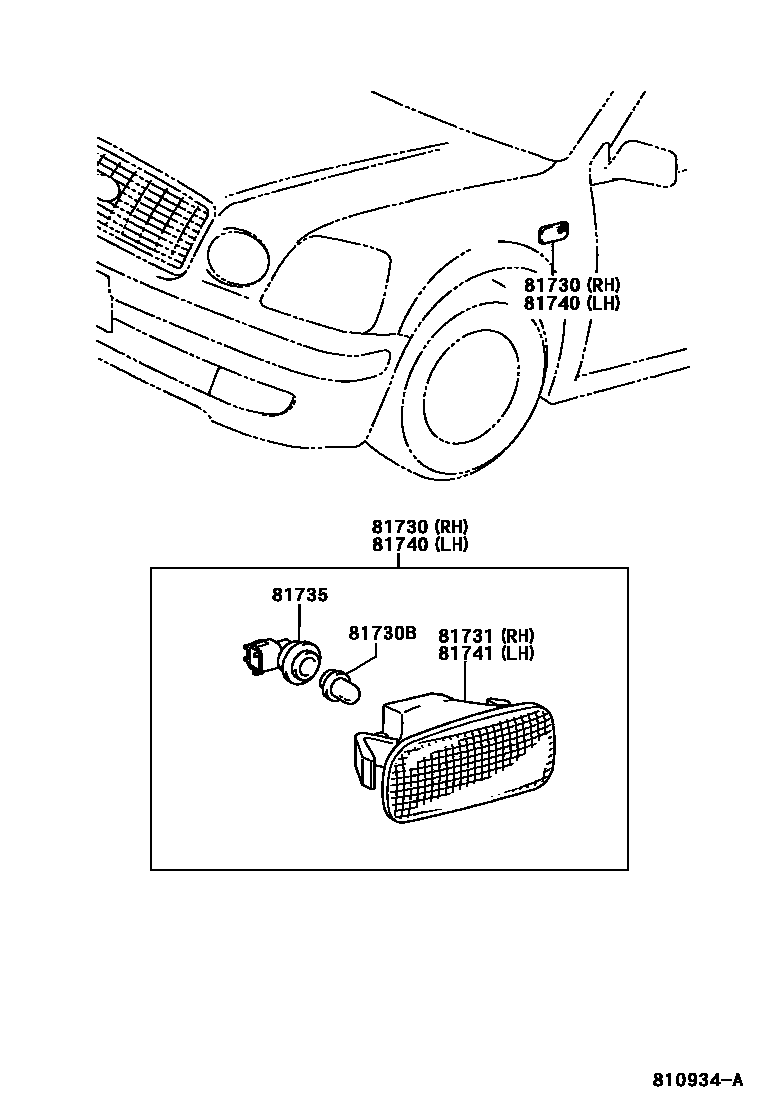

Toyota PROGRES — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-51010iJCG1#199805-200104

sub81730-51011

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-15012×2iJCG1#200104

main99132-12050×2iJCG1#199805-200104

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-51010iJCG1#199805-200104

sub81731-51011

main81731-51020iJCG1#200104-200303

main81731-51021iJCG1#200303

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60005×2iJCG1#199805-200104

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-51010iJCG1#199805-200104

sub81730-51011

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-51010iJCG1#199805-200104

sub81731-51011

main81731-51020iJCG1#200104-200303

main81731-51021iJCG1#200303

6 parts on this diagram · 2 diagrams in section
