Toyota PROGRES — ROOF HEADLINING & SILENCER PAD

63305FCLIP(FOR ROOF HEADLINING TRIM)

main90467-09126i199805-200104

63310HEADLINING ASSY, ROOF

main63310-51010-A1i199805-200104

IVORY,TRIM00,01

main63310-51010-A1i200104-200706

IVORY,TRIM0#

main63310-51010-B1i199805-200706

LT. GRAY,TRIM2#

63341DPAD, ROOF SILENCER, FRONT

main63341-51010i199805-200104

63343BPAD, ROOF SILENCER, REAR

main63343-51010i199805-200104

63345DPAD, ROOF SILENCER, CENTER

main63345-51010i199805-200104

main63345-51020i199805-200104

63346PAD, ROOF SILENCER, NO.6

main63346-51010i199805-200104

63347APAD, ROOF SILENCER, NO.7

main63347-51010i199805-200104

63348PAD, ROOF SILENCER, NO.8

main63348-51010i199805-200104

63349PAD, ROOF SILENCER, NO.9

main63349-51010i199805-200104

63391ACLIP(FOR ROOF HEADLINING TRIM)

main90467-10181i199805-200104

66414ASPACER, SIDE RAIL, REAR RH

main66414-51010i199805-200104

66424SPACER, SIDE RAIL, REAR LH

main66424-51010i199805-200104

9015950322

main90159-50322

9018905096

main90189-05096

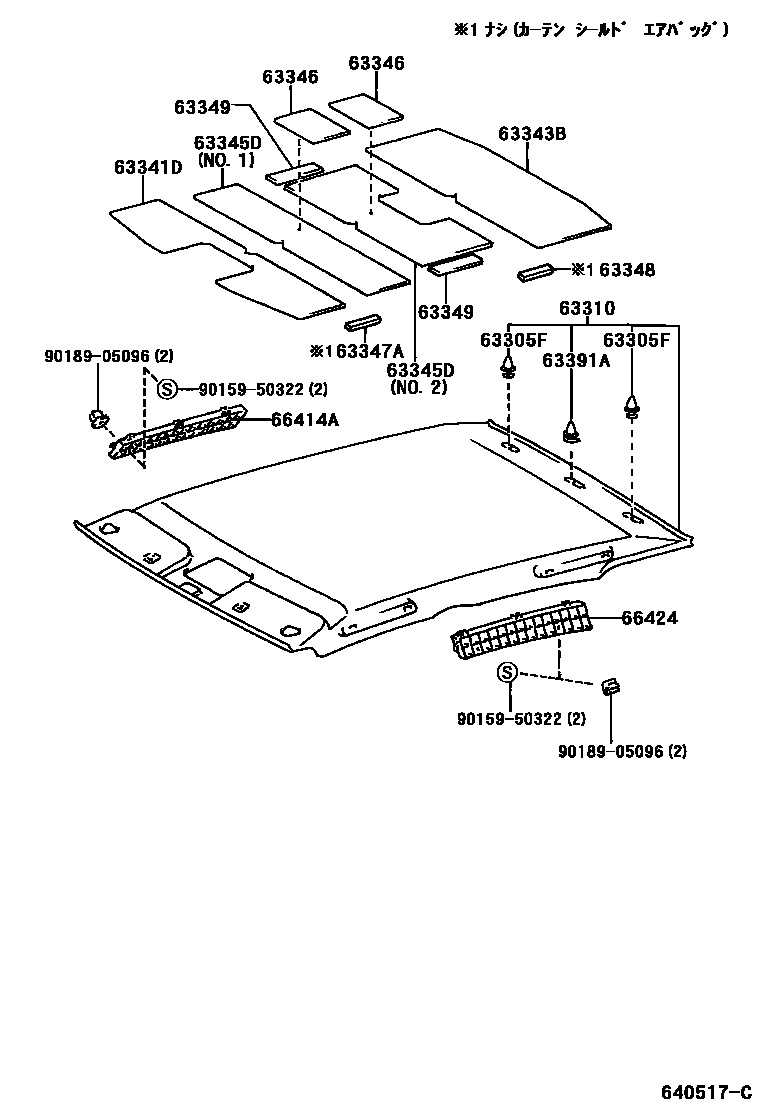

14 parts on this diagram · 1 diagram in section

ROOF HEADLINING & SILENCER PAD for Toyota PROGRES

This section contains 14 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota PROGRES. Key components include: CLIP(FOR ROOF HEADLINING TRIM), HEADLINING ASSY, ROOF, PAD, ROOF SILENCER, FRONT, PAD, ROOF SILENCER, REAR, PAD, ROOF SILENCER, CENTER.
