Toyota PROGRES — REAR LICENSE PLATE LAMP

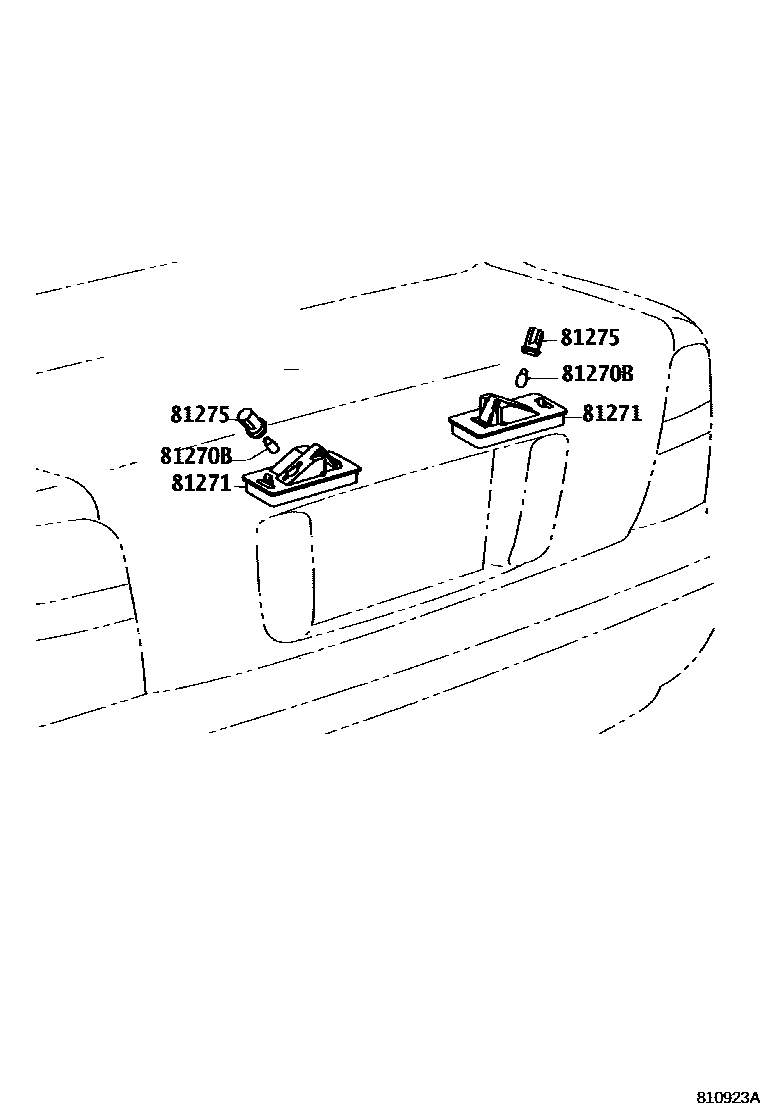

Parts diagram

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2i199805-200104

81271LENS, LICENSE PLATE LAMP

main81271-30270×2i199805-200104

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-99011×2i199805-200104

3 parts on this diagram · 1 diagram in section
