Toyota PROGRES — REAR BUMPER & BUMPER STAY

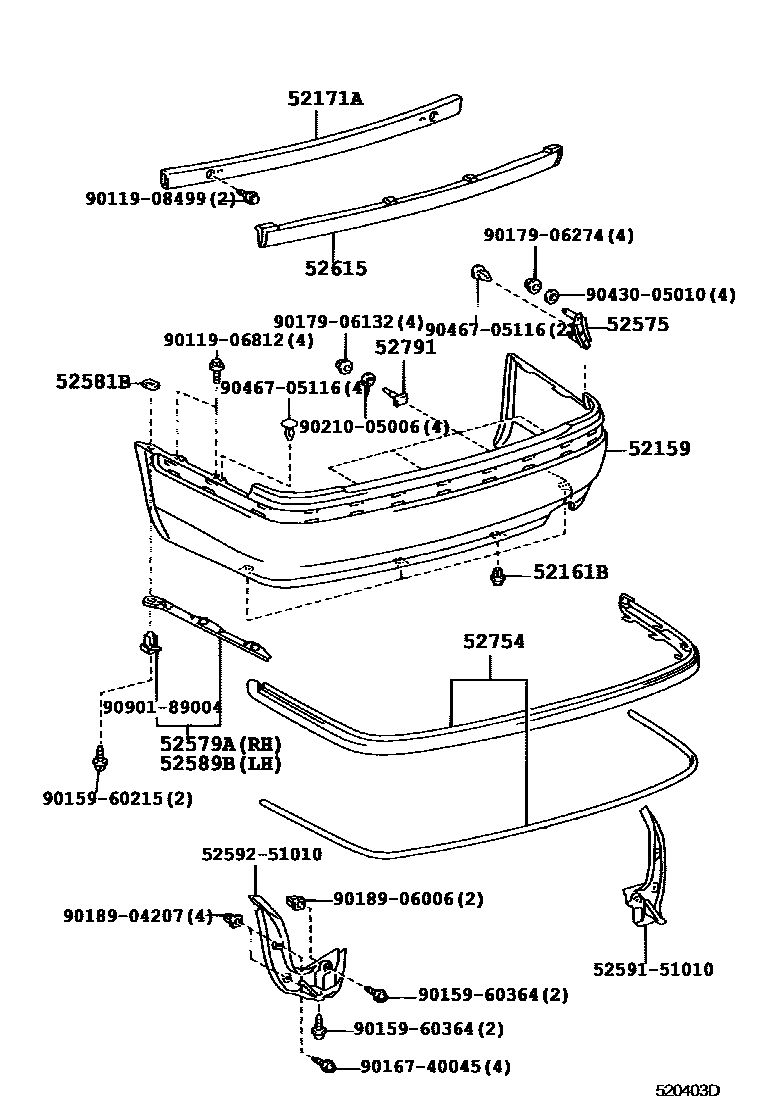

Parts diagram
52159COVER, REAR BUMPER
main52159-51010-B0i199805-200104
SILVER ME.,1C0
sub52159-51901
main52159-51010-D0i199805-200005
RED MC.,3N1
sub52159-51901
main52159-51010-D1i199805-199905
DK.RED MC.,3N4
sub52159-51901
main52159-51010-D2i200005-200104
BORDEAUX MC.,3P2
sub52159-51901
main52159-51010-F0i199805-200104
YELLOW PM.,579
sub52159-51901
main52159-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
sub52159-51901
main52159-51010-G1i199805-200104
GREEN M.M.,6R2
sub52159-51901
main52159-51010-G2i200005-200104
BLACKISH GREEN MC.CC,6R5
sub52159-51901
main52159-51010-J0i199805-200104
BLUE MC.,8M6
sub52159-51901
main52159-51010-J1i199805-200104
BLUE ME.,8N0
sub52159-51901
main52159-51030-A0i200104-200706
WHITE PEARL CS.,062
sub52159-51905
main52159-51030-B0i200104-200706
SILVER ME.,1C0
sub52159-51905
main52159-51030-B1i200212-200706
GRAY ME.,1D2
sub52159-51905
main52159-51030-B2i200512-200706
SILVER ME.,1F7
sub52159-51905
main52159-51030-D0i200104-200706
BORDEAUX MC.,3P2
sub52159-51905
main52159-51030-F0i200104-200706
GOLD ME.,585
sub52159-51905
main52159-51030-G0i200104-200706
GREEN M.M.,6R2
sub52159-51905
main52159-51030-G1i200104-200706
BLACKISH GREEN MC.CC,6R5
sub52159-51905
main52159-51030-G2i200212-200706
LT.GREEN M.M.,6S8
sub52159-51905
main52159-51030-G3i200512-200706
OLIVE M.M.,6T7
sub52159-51905
main52159-51030-J0i200104-200706
BLUE MC.,8M6
sub52159-51905
main52159-51030-J1i200104-200706
BLUE ME.,8N0
sub52159-51905
main52159-51030-J2i200104-200706
DARK BLUE MC.,8P8
sub52159-51905
main52159-51030-J3i200512-200706
DK.BLUE MC.,8S6
sub52159-51905
main52159-51060-A0i200104-200706
WHITE PEARL CS.,062
sub52159-51906
main52159-51060-B0i200104-200706
SILVER ME.,1C0
sub52159-51906
main52159-51060-B1i200212-200706
GRAY ME.,1D2
sub52159-51906
main52159-51060-B2i200512-200706
SILVER ME.,1F7
sub52159-51906
main52159-51060-D0i200104-200706
BORDEAUX MC.,3P2
sub52159-51906
main52159-51060-F0i200104-200706
GOLD ME.,585
sub52159-51906
main52159-51060-G0i200104-200706
GREEN M.M.,6R2
sub52159-51906
main52159-51060-G1i200104-200706
BLACKISH GREEN MC.CC,6R5
sub52159-51906
main52159-51060-G2i200212-200706
LT.GREEN M.M.,6S8
sub52159-51906
main52159-51060-G3i200512-200706
OLIVE M.M.,6T7
sub52159-51906
main52159-51060-J0i200104-200706
BLUE MC.,8M6
sub52159-51906
main52159-51060-J1i200104-200706
BLUE ME.,8N0
sub52159-51906
main52159-51060-J2i200104-200706
DARK BLUE MC.,8P8
sub52159-51906
main52159-51060-J3i200512-200706
DK.BLUE MC.,8S6
sub52159-51906
52161BPIECE, REAR BUMPER
main52161-16010×4i199903-200104
main90467-09185×4i199805-199903
52171AREINFORCEMENT, REAR BUMPER, NO.1
main52171-51010i200104
52575RETAINER, REAR BUMPER SIDE, RH
main52575-51010×2i200104
52579ARETAINER, REAR BUMPER SIDE, NO.3 RH
main52579-51010i199805-200104
52581BPROTECTOR, REAR BUMPER
main52581-51010×6i200104
52589BRETAINER, REAR BUMPER SIDE, NO.3 LH
main52589-51010i199805-200104
52615ABSORBER, REAR BUMPER ENERGY
main52615-51010i199805-200104
main52615-51020i200104
52754MOULDING, REAR BUMPER, NO.2
main52754-51010-B0i199805-200104
SILVER,1C0
main52754-51010-D0i199805-199905
DK.RED,3N4
main52754-51010-D1i199805-200005
RED,3N1
main52754-51010-D2i200005-200104
DARK BORDEAUX,3P2
main52754-51010-F0i199805-200104
IVORY,579
main52754-51010-G0i199805-200104
GREEN,6R2
main52754-51010-G2i199805-200005
DK.GREEN MC.P.I.O.,6N9
main52754-51010-G3i200005-200104
BLACKISH GREEN MC.CC,6R5
main52754-51010-J0i199805-200104
BLUE,8M6
main52754-51010-J1i199805-200104
LT.BLUE,8N0
main52754-51020-B0i200104-200706
SILVER,1C0
main52754-51020-B1i200104-200706
SILVER ME.,062
main52754-51020-B2i200212-200706
DK.GRAY,1D2
main52754-51020-B3i200512-200706
GRAY MM,1F7
main52754-51020-D0i200104-200706
DARK BORDEAUX,3P2
main52754-51020-F0i200104-200706
GOLD,585
main52754-51020-G0i200104-200706
GREEN,6R2
main52754-51020-G1i200104-200706
BLACKISH GREEN MC.CC,6R5
main52754-51020-G2i200212-200706
MD.GREEN,6S8
main52754-51020-G3i200512-200706
OLIVE M.M.,6T7
main52754-51020-J0i200104-200706
BLUE,8M6
main52754-51020-J1i200104-200706
LT. BLUE,8N0
main52754-51020-J2i200104-200706
DARK BLUE MC.,8P8
main52754-51020-J3i200512-200706
DK.BLUE MC.,8S6
52791BOLT, BUMPER MOULDING SET, NO.1
main52791-12010×4i199805-199902
main52791-12040×2i200104
main52791-32010×2i200005-200006
main52791-33010×2i200005-200006
main90109-06354×2i200006-200104
5259151010SEAL, REAR BUMPER SIDE, RH
main52591-51010
5259251010SEAL, REAR BUMPER SIDE, LH
main52592-51010
9011906812
main90119-06812
9011908499
main90119-08499
9015960215
main90159-60215
9015960364
main90159-60364
9016740045
main90167-40045
9017906132
main90179-06132
9017906274
main90179-06274
9018904207
main90189-04207
9018906006
main90189-06006
9021005006
main90210-05006
9043005010
main90430-05010
9046705116
main90467-05116
9090189004
main90901-89004

25 parts on this diagram · 1 diagram in section
