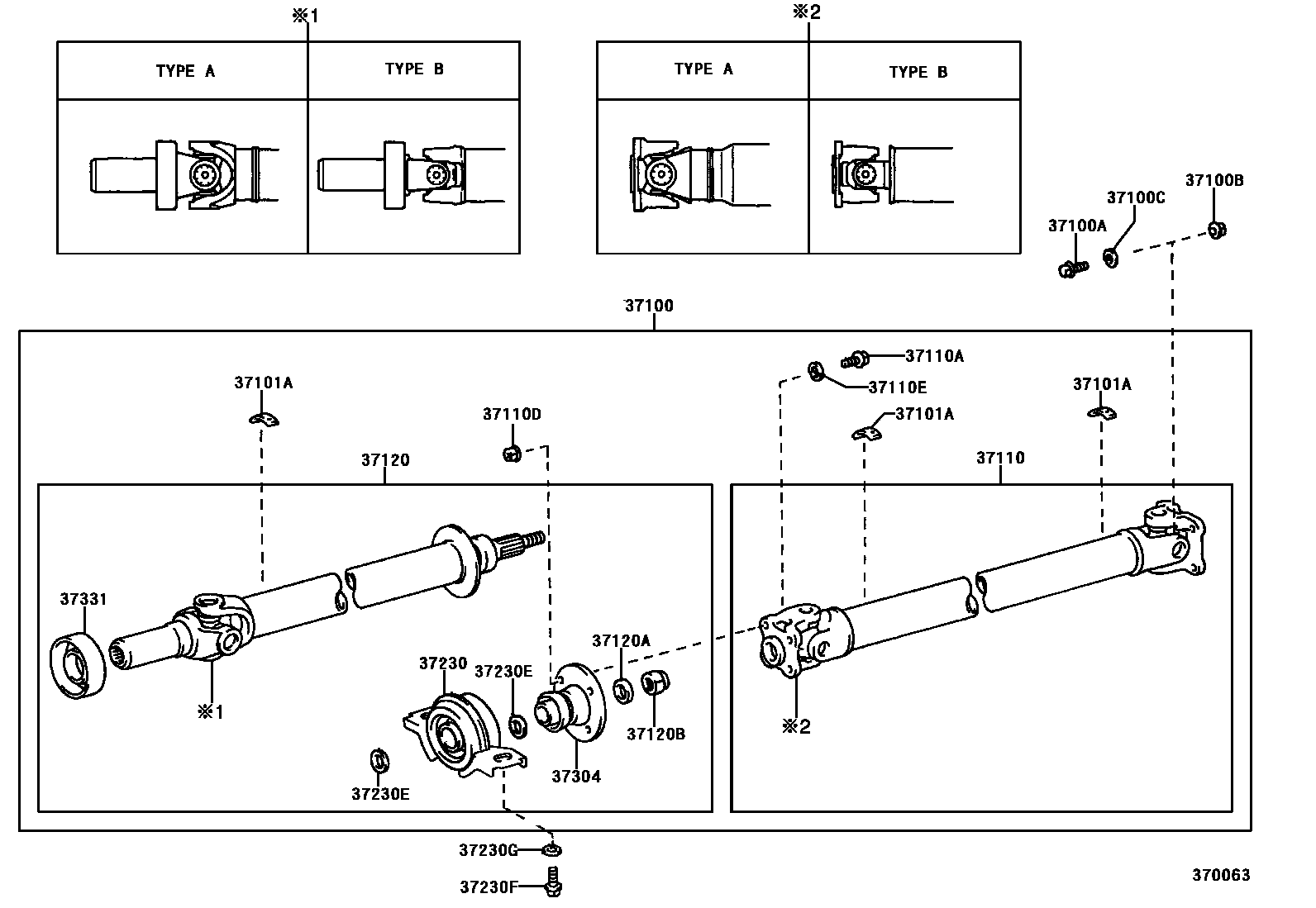

Toyota PROGRES — PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37331COVER, SLIDING SHAFT DUST
18 parts on this diagram · 5 diagrams in section
PROPELLER SHAFT & UNIVERSAL JOINT for Toyota PROGRES
This section contains 22 genuine Toyota parts for the PROPELLER SHAFT & UNIVERSAL JOINT system of the Toyota PROGRES. Key components include: SHAFT ASSY, PROPELLER W/CENTER BEARING, BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING), PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT).
