Toyota PROGRES — PARTIAL ENGINE ASSEMBLY

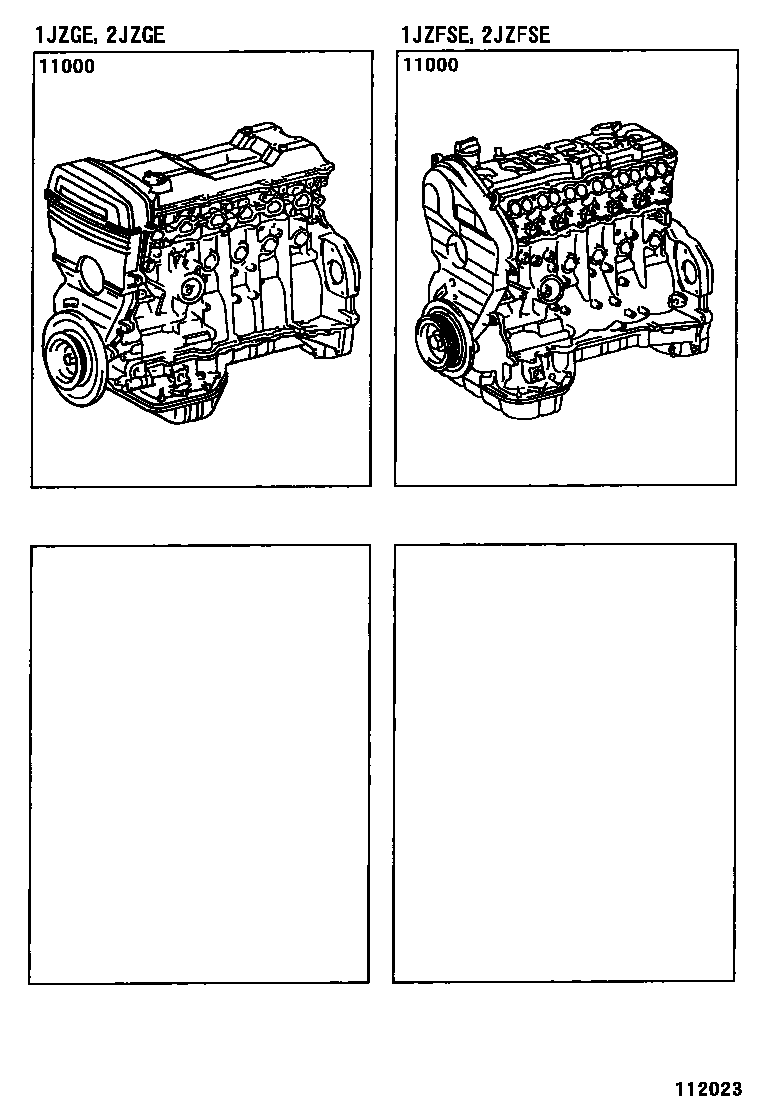

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-46410i199805-199901
main19000-46411i199901-199906
sub16210-46052
sub16371-46030
main19000-46412i199906-200011
main19000-46420i199805-199901
main19000-46421i199901-200011
main19000-46520i200104
main19000-46540i199912-200104
main19000-46560i200011-200104
main19000-46610i200011-200104
main19000-46620i200104-200108
sub23807-46051
main19000-46621i200108
main19000-46630i200104

1 parts on this diagram · 1 diagram in section
