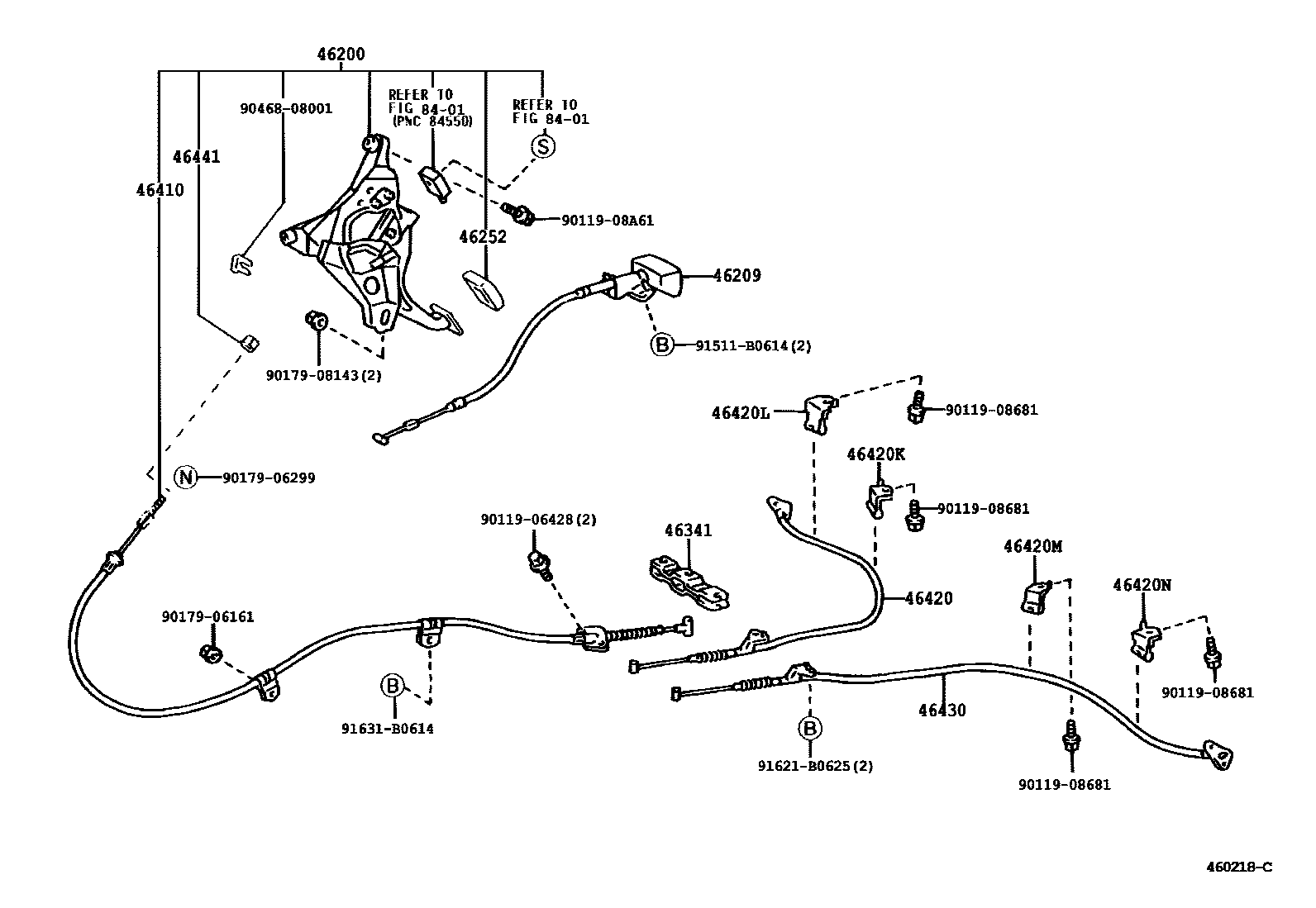

Toyota PROGRES — PARKING BRAKE & CABLE
46200PEDAL ASSY, PARKING BRAKE CONTROL
46209CABLE SUB-ASSY, PARKING BRAKE RELEASE
IVORY,TRIM0#
BLACK,TRIM2#
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)
46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)
46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46441NUT, WIRE ADJUSTING, NO.1
8401SWITCH & RELAY & COMPUTER
9011906428
main90119-06428
9011908681
main90119-08681
9011908A61
main90119-08A61
9017906161
main90179-06161
9017906299
main90179-06299
9017908143
main90179-08143
9046808001
main90468-08001
91511B0614
main91511-B0614
91621B0625
main91621-B0625
91631B0614
main91631-B0614
23 parts on this diagram · 2 diagrams in section
PARKING BRAKE & CABLE for Toyota PROGRES
This section contains 51 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota PROGRES. Key components include: PEDAL ASSY, PARKING BRAKE CONTROL, CABLE SUB-ASSY, PARKING BRAKE RELEASE, PAD, PARKING PEDAL, EQUALIZER, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.1.
