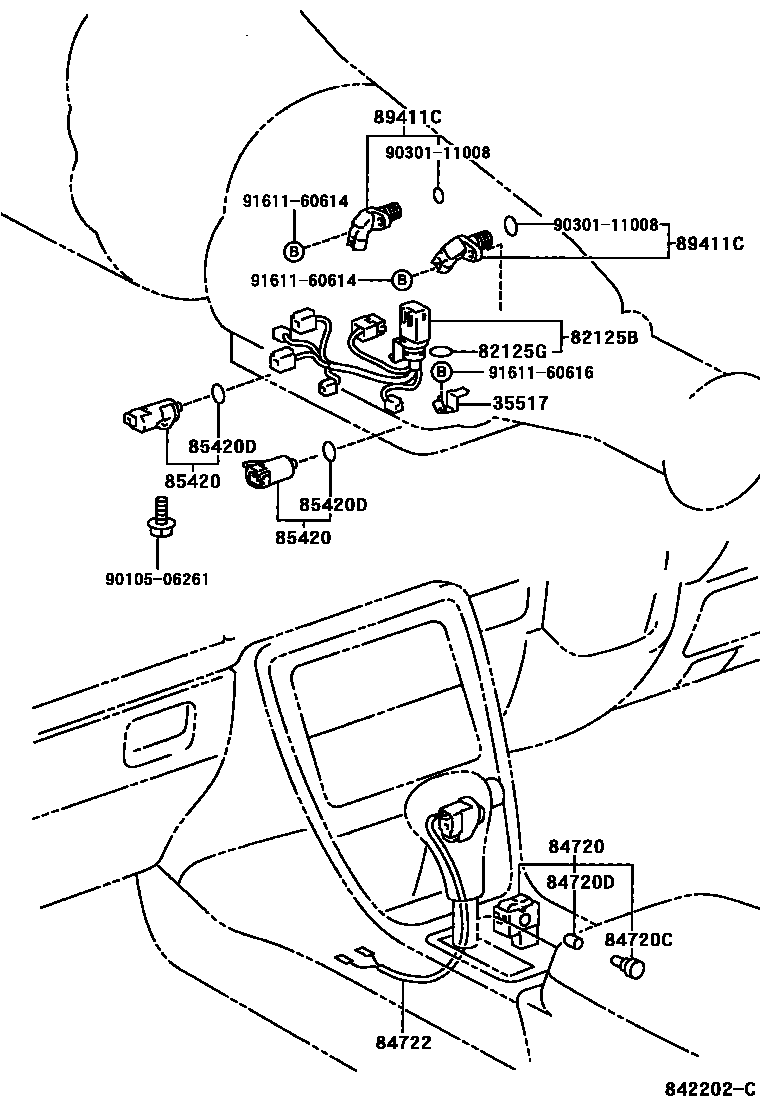

Toyota PROGRES — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iJCG15199912-200104

main35517-50010iJCG10,11199805-200104

82125BWIRE, TRANSMISSION

main82125-22260iJCG15199912-200104

main82125-30440iJCG15200104-200706

main82125-30460iJCG10200104-200706

main82125-40050iJCG10,11199805-200104

main82125-50040iJCG11200104-200706

82125GRING, O(FOR TRANSMISSION WIRE)

main96721-24018iJCG1#199805-200104

84720SWITCH ASSY, PATTERN SELECT

main84720-51010iJCG1#199805-200104

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10710iJCG1#199805-200104

84720DCAP, PATTERN SELECT SWITCH

main84998-10670iJCG1#199805-200104

84722SWITCH, TRANSMISSION CONTROL

main84722-51010-C0iJCG1#200104-200706

BLACK,TRIM2#

main84722-51010-E0iJCG1#200104-200706

SANDAL WOOD,TRIM0#

main84722-51010-J0iJCG1#199805-200104

DK.BLUE,TRIM00

85420SOLENOID ASSY, TRANSMISSION

main35250-30050×2iJCG15200206-200209

main35250-30070iJCG15200209-200706

main35250-50010iJCG10200108-200706

main35250-50030iJCG10200108-200706

main85420-22150iJCG15200104-200206

main85420-22170iJCG15200104-200206

main85420-30240iJCG10200104-200108

main85420-30260iJCG10200104-200108

main85420-30270iJCG10200104-200108

main85420-50020×2iJCG10,11199805-200104

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iJCG1#199805-200104

89411CSENSOR, SPEED

main89411-50010×2iJCG1#199805-200104

9010506261

main90105-06261

9030111008

main90301-11008

9161160614

main91611-60614

9161160616

main91611-60616

14 parts on this diagram · 4 diagrams in section
