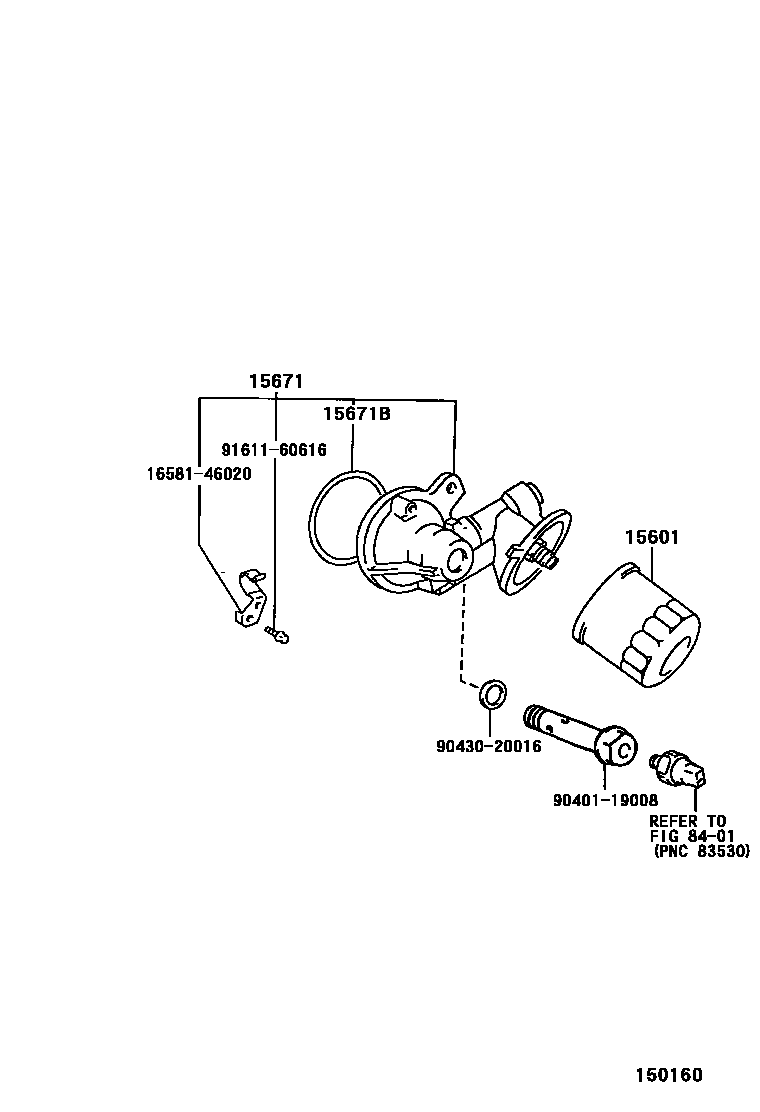

Toyota PROGRES — OIL FILTER

0001 1 0003 1

15601FILTER SUB-ASSY, OIL

main90915-20001i1JZGE,2JZGE..JCG1#199805-199908

main90915-20003i1JZGE,2JZGE..JCG1#199908-200104

sub90915-20005

15671BRACKET, OIL FILTER

main15670-46041i1JZFSE..JCG10200104

main15670-46070i1JZGE,2JZGE..JCG1#199805-200104

15671BGASKET, OIL FILTER BRACKET

main90301-68004i1JZGE,2JZGE..JCG10,11199805-200104

main90301-68005i1JZGE..JCG15199912-200104

8401

1658146020CLAMP, HOSE(FOR WATER HOSE)

main16581-46020

9040119008

main90401-19008

9043020016

main90430-20016

9161160616

main91611-60616

8 parts on this diagram · 2 diagrams in section
