Toyota PROGRES — MUDGUARD & SPOILER

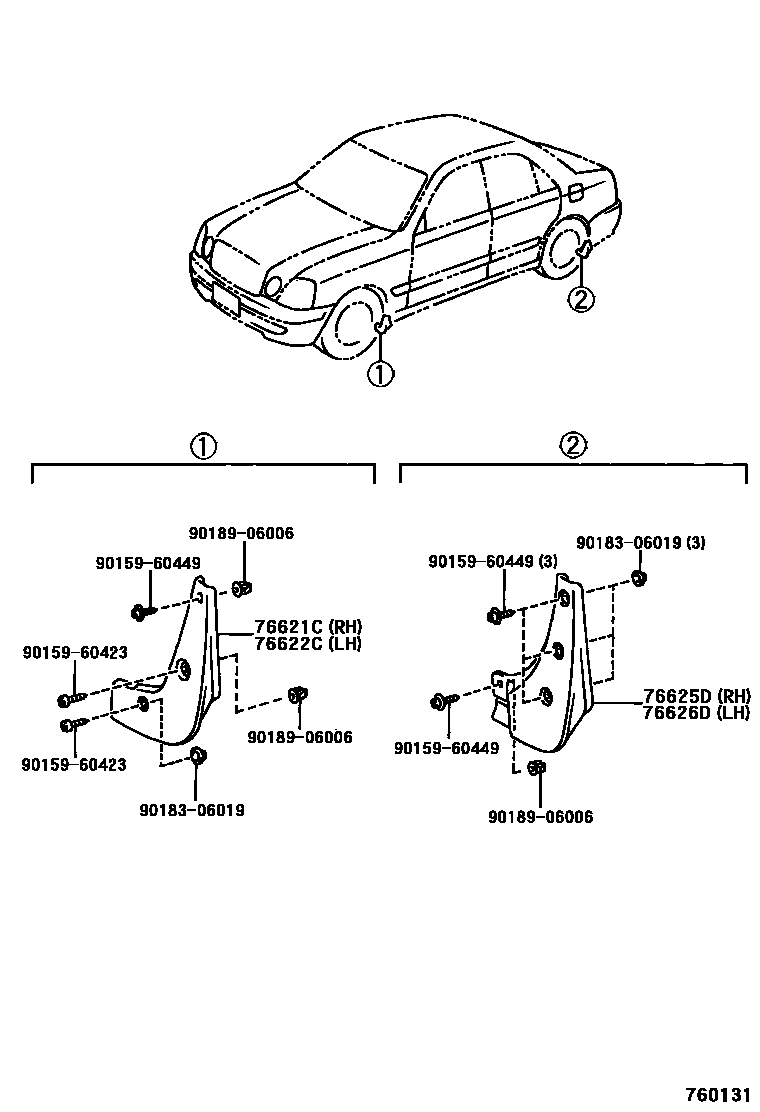

Parts diagram
76621CMUDGUAD, FRONT FENDER, RH
main76621-51010-A0i200104-200706
WHITE PEARL CS.,062
main76621-51010-B0i199805-200104
SILVER ME.,1C0
main76621-51010-B1i200212-200706
GRAY ME.,1D2
main76621-51010-B2i200512-200706
SILVER ME.,1F7
main76621-51010-D0i199805-200005
RED MC.,3N1
main76621-51010-D1i199805-199905
DK.RED MC.,3N4
main76621-51010-D2i200104-200706
BORDEAUX MC.,3P2
main76621-51010-F0i199805-200104
YELLOW PM.,579
main76621-51010-F1i200104-200706
GOLD ME.,585
main76621-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
main76621-51010-G1i200104-200706
GREEN M.M.,6R2
main76621-51010-G2i200005-200104
BLACKISH GREEN MC.CC,6R5
main76621-51010-G3i200212-200706
LT.GREEN M.M.,6S8
main76621-51010-G4i200512-200706
OLIVE M.M.,6T7
main76621-51010-J0i200104-200706
BLUE MC.,8M6
main76621-51010-J1i199805-200104
BLUE ME.,8N0
main76621-51010-J2i200104-200706
DARK BLUE MC.,8P8
main76621-51010-J3i200512-200706
DK.BLUE MC.,8S6
76622CMUDGUARD, FRONT FENDER, LH
main76622-51010-A0i200104-200706
WHITE PEARL CS.,062
main76622-51010-B0i199805-200104
SILVER ME.,1C0
main76622-51010-B1i200212-200706
GRAY ME.,1D2
main76622-51010-B2i200512-200706
SILVER ME.,1F7
main76622-51010-D0i199805-200005
RED MC.,3N1
main76622-51010-D1i199805-199905
DK.RED MC.,3N4
main76622-51010-D2i200104-200706
BORDEAUX MC.,3P2
main76622-51010-F0i199805-200104
YELLOW PM.,579
main76622-51010-F1i200104-200706
GOLD ME.,585
main76622-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
main76622-51010-G1i199805-200104
GREEN M.M.,6R2
main76622-51010-G2i200104-200706
BLACKISH GREEN MC.CC,6R5
main76622-51010-G3i200212-200706
LT.GREEN M.M.,6S8
main76622-51010-G4i200512-200706
OLIVE M.M.,6T7
main76622-51010-J0i200104-200706
BLUE MC.,8M6
main76622-51010-J1i199805-200104
BLUE ME.,8N0
main76622-51010-J2i200104-200706
DARK BLUE MC.,8P8
main76622-51010-J3i200512-200706
DK.BLUE MC.,8S6
76625DMUDGUARD, QUARTER PANEL, REAR RH
main76625-51010-A0i200104-200706
WHITE PEARL CS.,062
main76625-51010-B0i200104-200706
SILVER ME.,1C0
main76625-51010-B1i200212-200706
GRAY ME.,1D2
main76625-51010-B2i200512-200706
SILVER ME.,1F7
main76625-51010-D0i199805-200005
RED MC.,3N1
main76625-51010-D1i199805-199905
DK.RED MC.,3N4
main76625-51010-D2i200104-200706
BORDEAUX MC.,3P2
main76625-51010-F0i199805-200104
YELLOW PM.,579
main76625-51010-F1i200104-200706
GOLD ME.,585
main76625-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
main76625-51010-G1i199805-200104
GREEN M.M.,6R2
main76625-51010-G2i200104-200706
BLACKISH GREEN MC.CC,6R5
main76625-51010-G3i200212-200706
LT.GREEN M.M.,6S8
main76625-51010-G4i200512-200706
OLIVE M.M.,6T7
main76625-51010-J0i199805-200104
BLUE MC.,8M6
main76625-51010-J1i199805-200104
BLUE ME.,8N0
main76625-51010-J2i200104-200706
DARK BLUE MC.,8P8
main76625-51010-J3i200512-200706
DK.BLUE MC.,8S6
76626DMUDGUARD, QUARTER PANEL, REAR LH
main76626-51010-A0i200104-200706
WHITE PEARL CS.,062
main76626-51010-B0i199805-200104
SILVER ME.,1C0
main76626-51010-B1i200212-200706
GRAY ME.,1D2
main76626-51010-B2i200512-200706
SILVER ME.,1F7
main76626-51010-D0i199805-200005
RED MC.,3N1
main76626-51010-D1i199805-199905
DK.RED MC.,3N4
main76626-51010-D2i200005-200104
BORDEAUX MC.,3P2
main76626-51010-F0i199805-200104
YELLOW PM.,579
main76626-51010-F1i200104-200706
GOLD ME.,585
main76626-51010-G0i199805-200005
DK.GREEN MC.P.I.O.,6N9
main76626-51010-G1i199805-200104
GREEN M.M.,6R2
main76626-51010-G2i200005-200104
BLACKISH GREEN MC.CC,6R5
main76626-51010-G3i200212-200706
LT.GREEN M.M.,6S8
main76626-51010-G4i200512-200706
OLIVE M.M.,6T7
main76626-51010-J0i200104-200706
BLUE MC.,8M6
main76626-51010-J1i200104-200706
BLUE ME.,8N0
main76626-51010-J2i200104-200706
DARK BLUE MC.,8P8
main76626-51010-J3i200512-200706
DK.BLUE MC.,8S6
9015960423
main90159-60423
9015960449
main90159-60449
9018306019
main90183-06019
9018906006
main90189-06006

8 parts on this diagram · 1 diagram in section
