Toyota PROGRES — MOUNTING

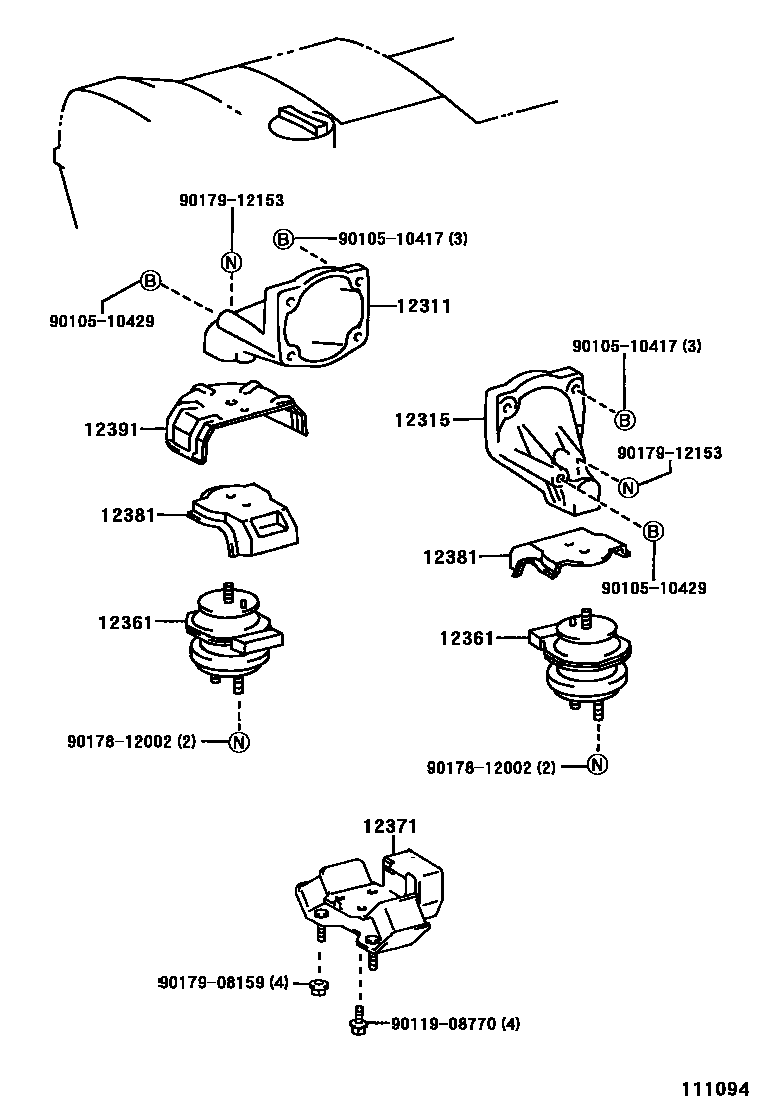

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46100i1JZGE..JCG15199912-200104

main12311-46120i1JZGE,2JZGE..JCG1#199805-199908

main12311-46140i1JZGE,2JZGE..JCG10,11199908-200104

main12311-46150i1JZFSE..JCG15200104

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46100i1JZGE..JCG15199912-200104

main12315-46110i1JZGE,2JZGE..JCG1#199805-199908

main12315-46120i1JZFSE,2JZFSE..JCG10,11200104

main12315-46130i1JZFSE..JCG15200104

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-46190×2i1JZGE,2JZGE..JCG10,11199805-200104

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46130i1JZGE..JCG15199912-200104

main12371-46200i1JZFSE,2JZFSE..JCG10,11200104

main12371-46240i1JZFSE..JCG15200111

main12380-46050i1JZGE,2JZGE..JCG10,11199805-200104

12381STABILIZER, ENGINE MOUNTING

main12381-46070×2i1JZGE,2JZGE..JCG10,11199805-200104

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46020×2i2JZGE..JCG11199805-200103

main12391-46040×2i2JZGE..JCG11200103-200104

9010510417

main90105-10417

9010510429

main90105-10429

9011908770

main90119-08770

9017812002

main90178-12002

9017908159

main90179-08159

9017912153

main90179-12153

12 parts on this diagram · 3 diagrams in section
