Toyota PROGRES — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM00,01
LT.GRAY,TRIM2#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM00,01
LT.GRAY,TRIM2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SILVER ME.,1C0
RED MC.,3N1
DK.RED MC.,3N4
BORDEAUX MC.,3P2
YELLOW PM.,579
DK.GREEN MC.P.I.O.,6N9
GREEN M.M.,6R2
BLACKISH GREEN MC.CC,6R5
BLUE MC.,8M6
BLUE ME.,8N0
WHITE PEARL CS.,062
SILVER ME.,1C0
GRAY ME.,1D2
SILVER ME.,1F7
BORDEAUX MC.,3P2
GOLD ME.,585
GREEN M.M.,6R2
BLACKISH GREEN MC.CC,6R5
LT.GREEN M.M.,6S8
OLIVE M.M.,6T7
BLUE MC.,8M6
BLUE ME.,8N0
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
87940MIRROR ASSY, OUTER REAR VIEW, LH
SILVER ME.,1C0
RED MC.,3N1
DK.RED MC.,3N4
BORDEAUX MC.,3P2
YELLOW PM.,579
DK.GREEN MC.P.I.O.,6N9
GREEN M.M.,6R2
BLACKISH GREEN MC.CC,6R5
BLUE MC.,8M6
BLUE ME.,8N0
WHITE PEARL CS.,062
SILVER ME.,1C0
GRAY ME.,1D2
SILVER ME.,1F7
BORDEAUX MC.,3P2
GOLD ME.,585
GREEN M.M.,6R2
BLACKISH GREEN MC.CC,6R5
LT.GREEN M.M.,6S8
OLIVE M.M.,6T7
BLUE MC.,8M6
BLUE ME.,8N0
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
9010506260
main90105-06260
9321915014
main93219-15014

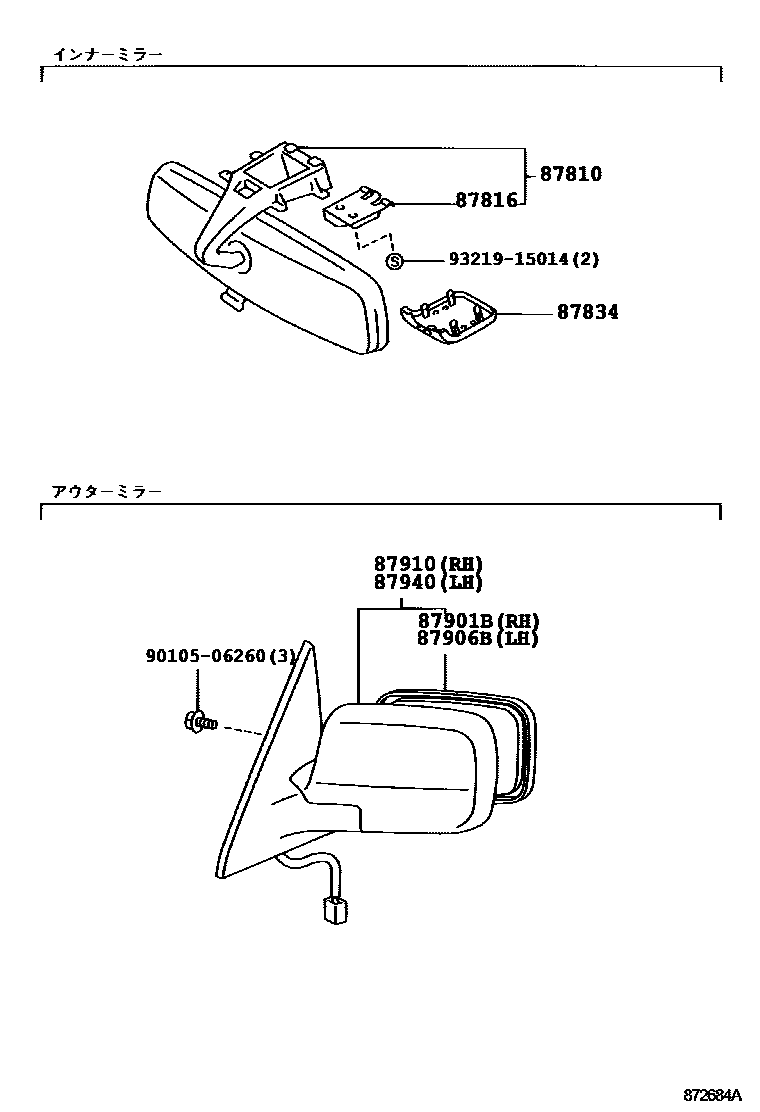

9 parts on this diagram · 1 diagram in section
