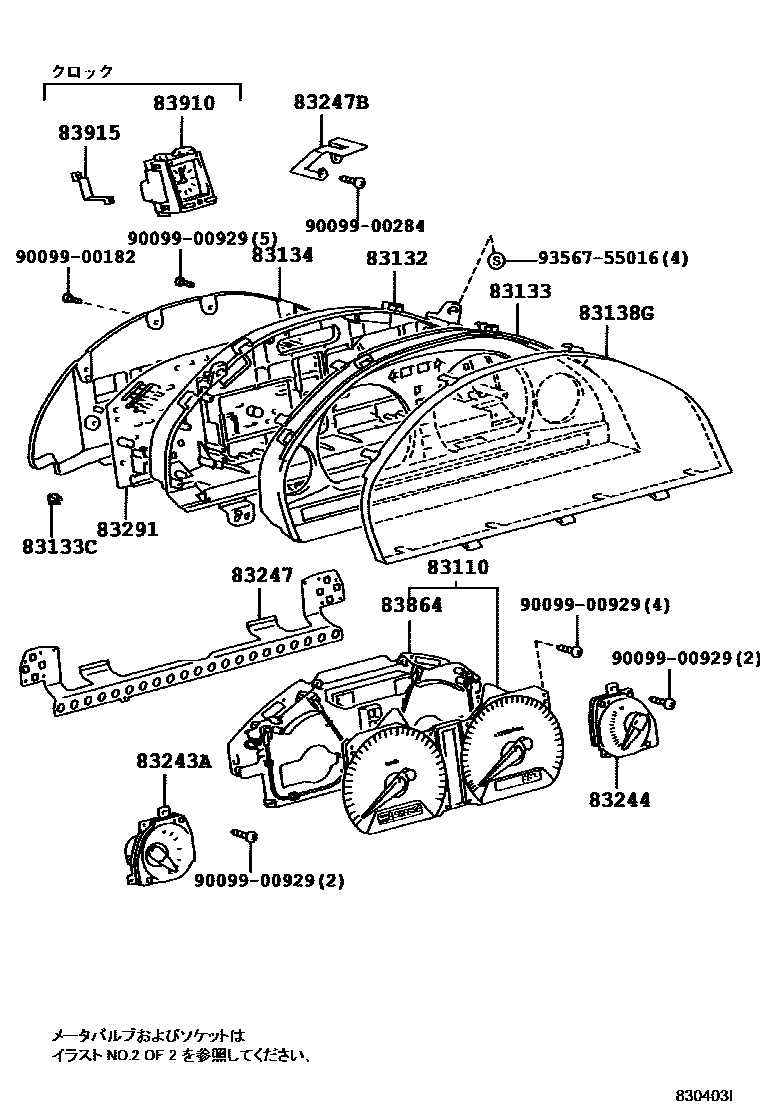

Toyota PROGRES — METER

0001 1 0002 1 0003 1 0004 1����� & ���� 0005 1����� & ���� 0006 1����� & ����

83110SPEEDOMETER ASSY

main83220-51010iJCG1#199805-200104

main83220-51020iJCG10,11199805-200104

main83220-51050iJCG10200104-200512

main83220-51060iJCG11200104-200512

main83220-51070iJCG10200104-200512

main83220-51080iJCG11200104-200512

main83220-51090iJCG15200104-200512

main83220-51100iJCG10200512

main83220-51110iJCG11200512

main83220-51120iJCG10200512

main83220-51130iJCG11200512

main83220-51140iJCG15200512

83132CASE, COMBINATION METER

main83841-51010iJCG10,11199805-200104

main83841-51040iJCG15199912-200104

main83841-51070iJCG10,11200104-200512

main83841-51110iJCG15200104-200512

main83841-51250iJCG10,11200512

main83841-51270iJCG10,11200512

main83841-51290iJCG15200512

83133PLATE, COMBINATION METER, NO.1

main83811-51010iJCG1#199805-200104

main83811-51070iJCG10,11200104

83133CPLATE, COMBINATION METER,NO.4

main83814-30710×16iJCG1#199805-200104

83134COVER, COMBINATION METER, NO.1

main83821-51010iJCG1#199805-200104

83138GGLASS, COMBINATION METER

main83852-51010iJCG1#199805-200104

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-51010iJCG1#199805-200104

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-51010iJCG1#199805-200104

83247PLATE, METER CIRCUIT

main83861-51010iJCG1#199805-200104

main83861-51250iJCG1#200512

83247BPLATE, METER CIRCUIT, NO.2

main83812-51010iJCG1#199805-200104

83291COMPUTER, COMBINATION METER

main83291-51010iJCG10199805-200104

main83291-51020iJCG10199805-200104

main83291-51030iJCG10200104-200512

main83291-51040iJCG10,11200104-200512

main83291-51050iJCG10,11200512

main83291-51060iJCG15200512

83864PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER)

main83864-51020iJCG1#199805-200104

main83864-51030iJCG10,11199805-200104

main83864-51070iJCG10,11200104

main83864-51090iJCG10,11200104

main83864-51110iJCG15200104

83910CLOCK ASSY

main83910-51010-C0iJCG1#199805-200104

BLACK,TRIM00,2#

main83910-51010-E0iJCG1#199805-200104

SANDAL WOOD,TRIM01

main83910-51030-C0iJCG1#200104-200706

BLACK,TRIM2#

main83910-51030-E0iJCG1#200104-200706

SANDAL WOOD,TRIM0#

83915BRACKET, CLOCK

main83915-51010iJCG1#199805-200104

9009900182

main90099-00182

9009900284

main90099-00284

9009900929

main90099-00929

9356755016

main93567-55016

18 parts on this diagram · 6 diagrams in section
