Toyota PROGRES — MAT & CARPET

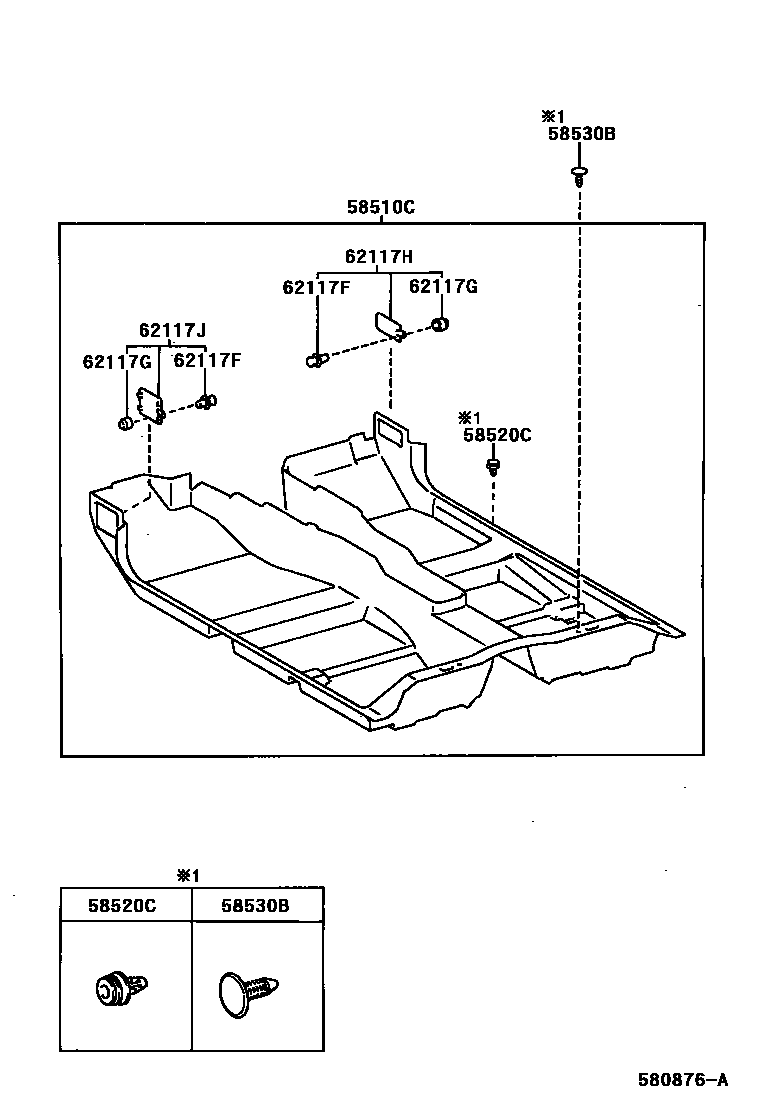

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-51010-A0i199805-199905
IVORY,TRIM00,01
main58510-51010-C0i199805-199905
BLACK,TRIM2#
main58510-51011-A0i199905-200104
IVORY,TRIM00,01
main58510-51011-C0i199905-200104
BLACK,TRIM2#
main58510-51020-A0i199805-199905
main58510-51020-C0i199805-199905
main58510-51021-A0i199905-200104
main58510-51021-C0i199905-200104
main58510-51030-A0i199912-200104
IVORY,TRIM00,01
main58510-51030-C0i199912-200104
BLACK,TRIM2#
main58510-51060-A0i200104-200108
IVORY,TRIM0#
main58510-51060-C0i200104-200108
BLACK,TRIM2#
main58510-51061-A0i200108-200706
IVORY,TRIM0#
sub58510-51062
main58510-51061-C0i200108-200706
BLACK,TRIM2#
sub58510-51062
main58510-51070-A0i200104-200108
main58510-51070-C0i200104-200108
main58510-51071-A0i200108-200706
sub58510-51072
main58510-51071-C0i200108-200706
sub58510-51072
main58510-51080-A0i200104-200108
IVORY,TRIM0#
main58510-51080-C0i200104-200108
BLACK,TRIM2#
main58510-51081-A0i200108-200706
IVORY,TRIM0#
sub58510-51082
main58510-51081-C0i200108-200706
BLACK,TRIM2#
sub58510-51082
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-08179×2i199805-200104
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-A0×2i199805-200104
IVORY,TRIM00,01
sub90467-07049
main90467-06016-C0×2i199805-200104
BLACK,TRIM2#
sub90467-07049
62117FCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-05015-11×2i199805-200104
BLACK,TRIM00,01,2#
main90467-05015-C0×2i200104-200706
BLACK,TRIM0#,2#
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-08031-11×2i199805-200104
BLACK,TRIM00,01,2#
main90467-08031-C0×2i200104-200706
BLACK,TRIM0#,2#
62117HCOVER, COWL SIDE TRIM SERVICE HOLE, RH
main62117-51010i199805-200104
main62117-51030i200104
62117JCOVER, COWL SIDE TRIM SERVICE HOLE, LH
main62117-51020i199805-199905
main62117-51021i199905-200104
main62117-51060i200104

7 parts on this diagram · 2 diagrams in section
