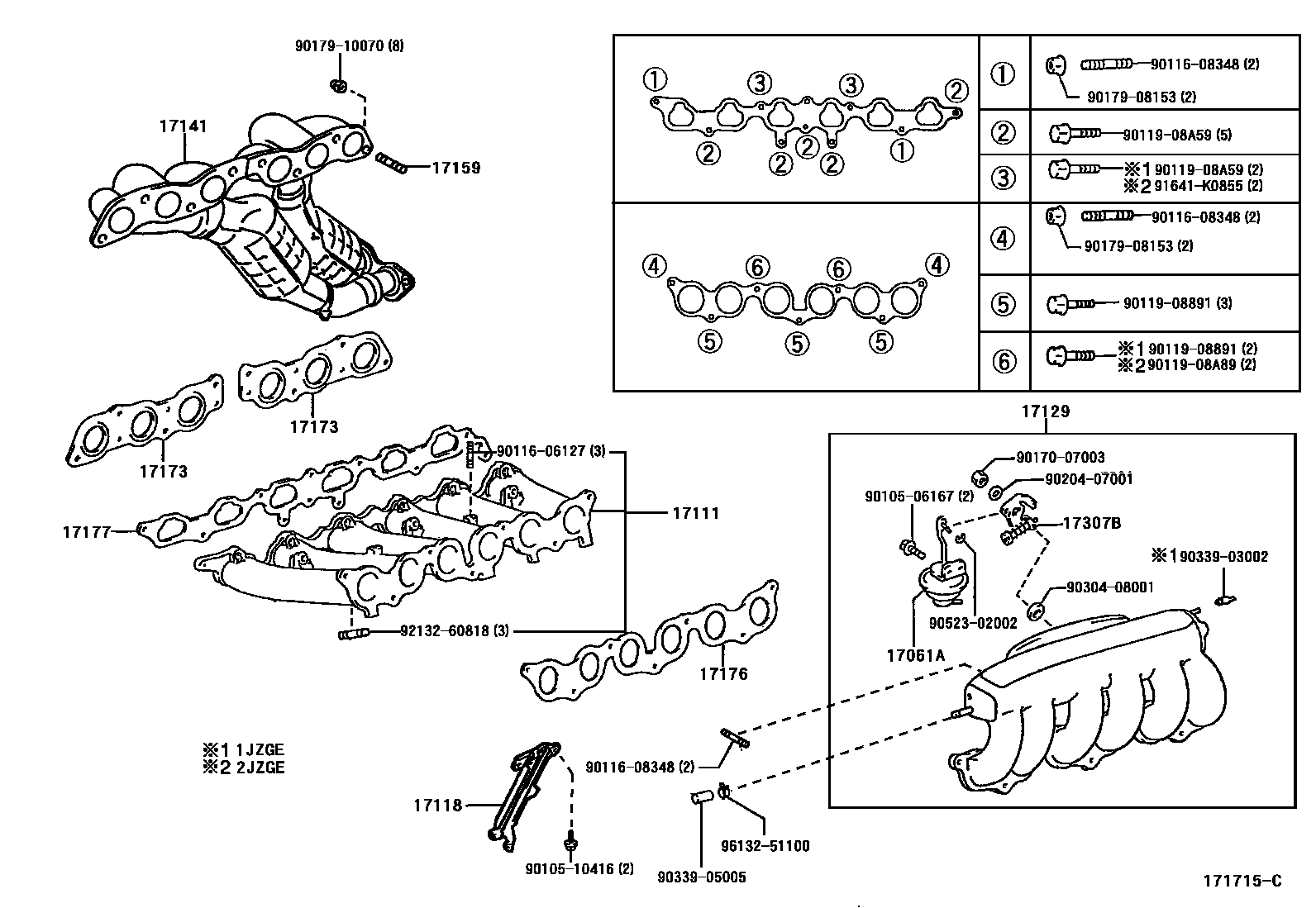

Toyota PROGRES — MANIFOLD

0001 1 0002 1 0003 1 0004 1

17061ADIAPHRAGM SUB-ASSY

main17061-46010i1JZGE,2JZGE..JCG1#199805-200104

17111MANIFOLD, INTAKE

main17101-46011i2JZFSE..JCG11200104

main17101-46030i2JZGE..JCG11199805-200104

main17101-46040i1JZFSE..JCG10,15200104

main17111-46070i1JZGE..JCG10,15199805-200104

17118STAY, MANIFOLD

main17118-46021i1JZFSE,2JZFSE..JCG1#200104-200402

main17118-46022i1JZFSE,2JZFSE..JCG1#200402

main17118-46042i1JZGE..JCG15199912-200104

main17118-46060i1JZGE,2JZGE..JCG10,11199805-200104

17129TANK, INTAKE AIR SURGE

main17109-46080i1JZGE..JCG10,15199805-200104

main17109-46090i2JZGE..JCG11199805-199908

main17109-46091i2JZGE..JCG11199908-200104

main17109-46112i2JZFSE..JCG11200104

main17109-46120i1JZFSE..JCG10,15200104

17141MANIFOLD, EXHAUST

main17140-46060i1JZGE..JCG10199805-200104

main17140-46070i2JZGE..JCG11199805-200104

main17140-46101i2JZFSE..JCG11200104-200303

main17140-46102i2JZFSE..JCG11200303

main17140-46120i1JZGE..JCG15199912-200104

main17140-46150i1JZFSE..JCG10200104-200303

main17140-46151i1JZFSE..JCG10200303

main17140-46160i1JZFSE..JCG15200104-200303

main17140-46161i1JZFSE..JCG15200303

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1JZFSE,2JZFSE..JCG1#200104

main90126-10014×8i1JZGE,2JZGE..JCG1#199805-200104

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-46020×2i1JZGE,2JZGE..JCG1#199805-199908

main17173-46050×2i1JZGE,2JZGE..JCG1#199908-200102

main17173-46051×2i1JZGE,2JZGE..JCG1#200102-200104

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-46010i1JZGE..JCG10,15199805-200104

main17176-46020i2JZGE..JCG11199805-200104

main17176-46050i1JZFSE,2JZFSE..JCG1#200104

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-46060i1JZGE,2JZGE..JCG1#199805-200104

main17177-46070i1JZFSE,2JZFSE..JCG1#200104

17307BLEVER SUB-ASSY, INTAKE AIR CONTROL

main17307-46010i1JZGE,2JZGE..JCG1#199805-200104

9010506167

main90105-06167

9010510416

main90105-10416

9011606127

main90116-06127

9011608348

main90116-08348

9011908891

main90119-08891

9011908A59

main90119-08A59

9011908A89

main90119-08A89

9017007003

main90170-07003

9017908153

main90179-08153

9017910070

main90179-10070

9020407001

main90204-07001

9030408001

main90304-08001

9033903002

main90339-03002

9033905005

main90339-05005

9052302002

main90523-02002

91641K0855

main91641-K0855

9213260818

main92132-60818

9613251100

main96132-51100

28 parts on this diagram · 4 diagrams in section
