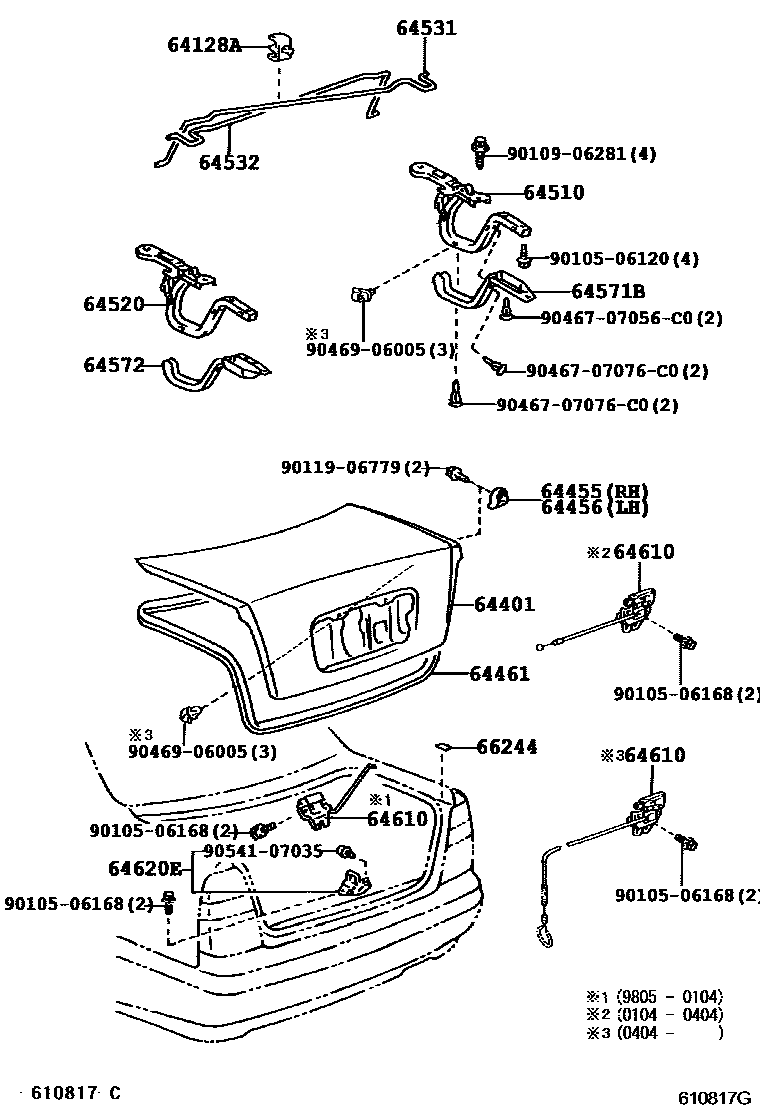

Toyota PROGRES — LUGGAGE COMPARTMENT DOOR & LOCK

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-51010iJCG1#199809-200104

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-51010iJCG1#199805-200104

main64401-51030iJCG1#200104-200404

main64401-51061iJCG11200404-200512

main64401-51071iJCG1#200404

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-51010iJCG1#199805-200104

64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH

main64456-51010iJCG1#199805-200104

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-51010iJCG1#199805-200104

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-51010iJCG1#199805-200104

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-51010iJCG1#199805-200104

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-51010iJCG1#199805-200104

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-51010iJCG1#199805-200104

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

main64571-51030-C0iJCG1#200404

BLACK,TRIM05,22

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-51010-C0iJCG1#199805-200104

BLACK,TRIM00,01,2#

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-51010iJCG1#199805-200104

main64600-51040iJCG1#200104-200404

main64600-51050iJCG1#200404

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30110iJCG1#199805-200104

66244PROTECTOR, REAR BODY, NO.2

main66244-51010×2iJCG1#199805-200104

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9011906779

main90119-06779

9046707056C0

main90467-07056C0

9046707076C0

main90467-07076C0

9046906005

main90469-06005

9054107035

main90541-07035

22 parts on this diagram · 1 diagram in section
