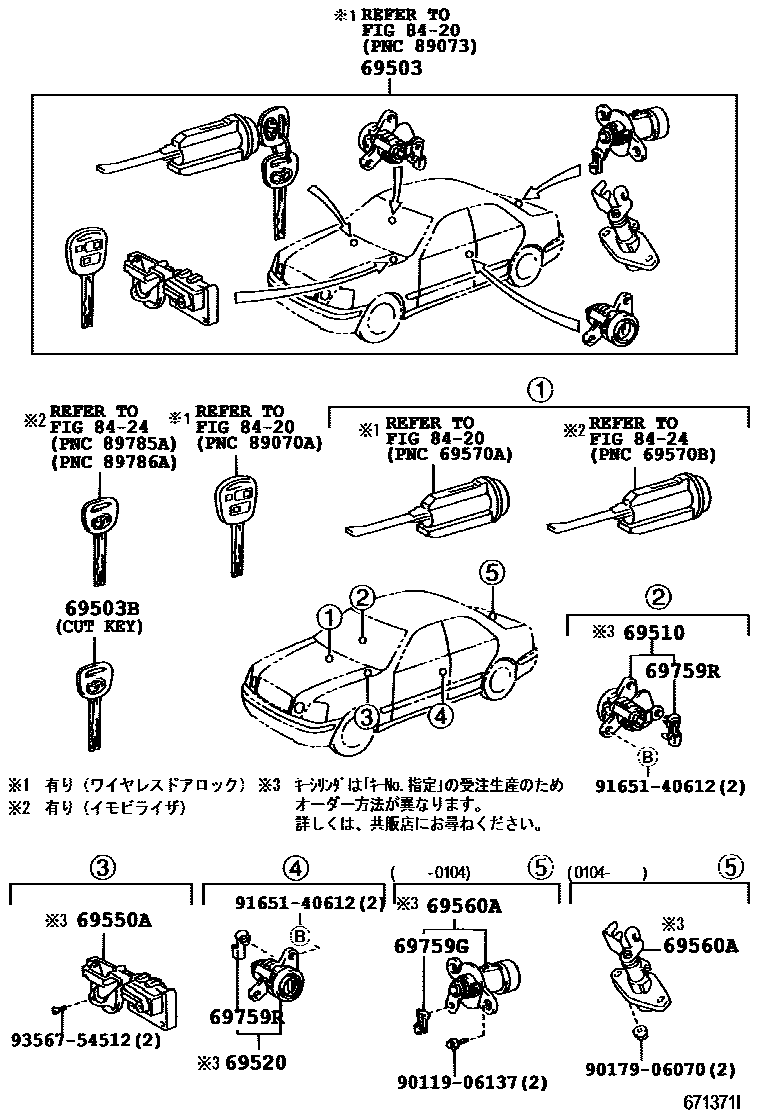

Toyota PROGRES — LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-51040iJCG1#200104-200404

main69005-51070iJCG1#200404-200509

main69005-51071iJCG1#200510

69503BKEY, CUT

main69515-30220iJCG10,15199805-200104

main69516-30120iJCG10,15199805-200104

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-51010iJCG1#199805-200104

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-51010iJCG1#199805-200104

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30130iJCG1#199805-200104

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30310iJCG1#199805-200104

main69560-51030iJCG1#200104-200404

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090iJCG1#199805-200104

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iJCG1#199805-200104

main69759-22090iJCG1#200104

8420

8424

9011906137

main90119-06137

9017906070

main90179-06070

9165140612

main91651-40612

9356754512

main93567-54512

14 parts on this diagram · 2 diagrams in section
