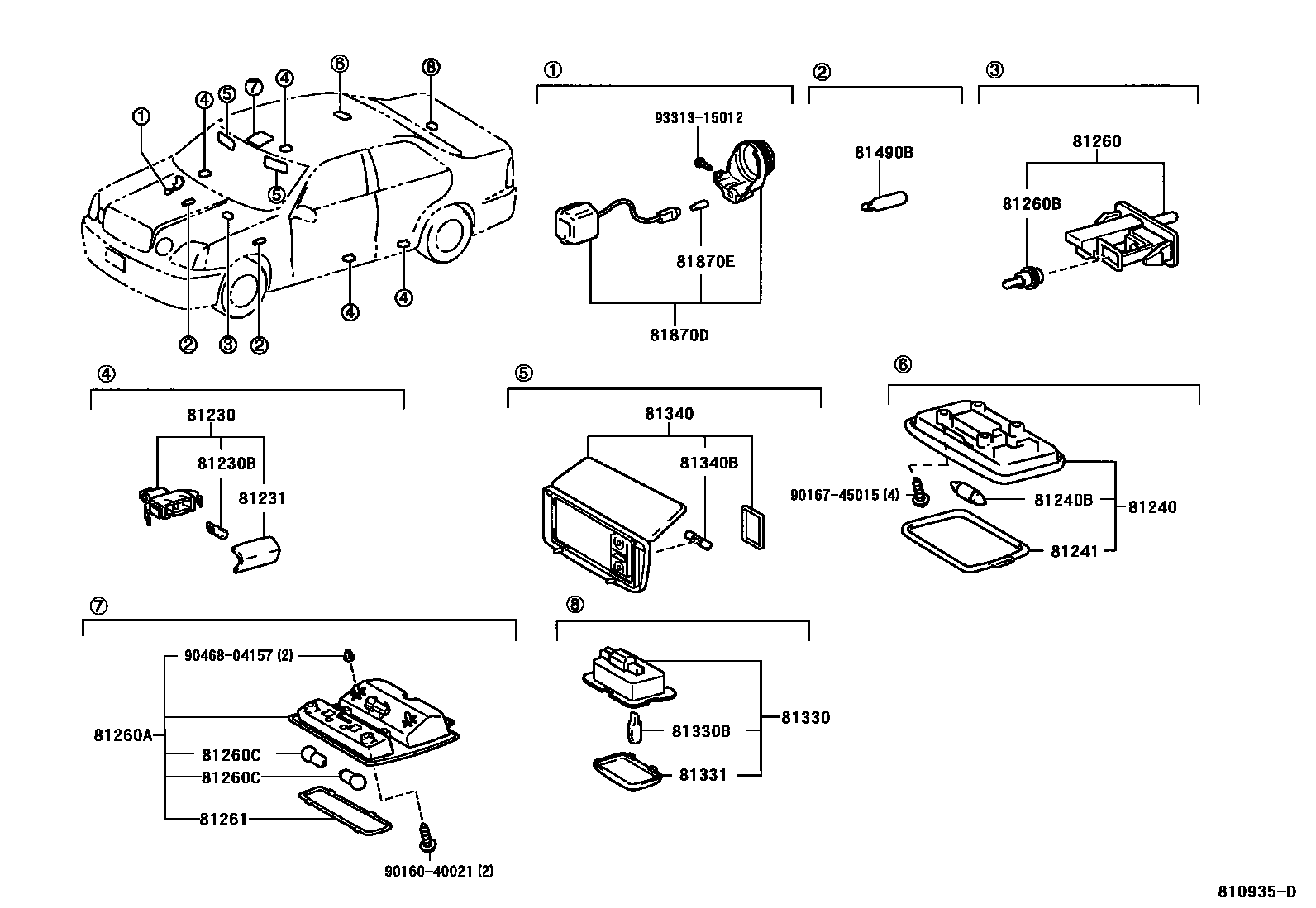

Toyota PROGRES — INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-30160×4iJCG1#199805-200104

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4iJCG1#199805-200104

81231LENS, COURTESY LAMP

main81231-50050×4iJCG1#199805-200104

81240LAMP ASSY, ROOM, NO.1

main81240-51010-A0iJCG1#199805-200104

IVORY,TRIM00,01

main81240-51010-B0iJCG1#200104-200706

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iJCG1#200104-200706

81241LENS, ROOM LAMP, NO.1

main81241-51010iJCG1#199805-200104

81260LAMP ASSY, GLOVE BOX

main81260-33030iJCG1#199805-200104

81260ALAMP ASSY, MAP

main81260-51010-A0iJCG1#200104-200706

IVORY,TRIM0#

main81260-51010-B0iJCG1#200104-200706

LT.GRAY,TRIM2#

81260BBULB(FOR GLOVE BOX)

main90981-11018iJCG1#199805-200104

81260CBULB(FOR MAP LAMP)

main90981-12020×2iJCG1#199805-200104

81261LENS AND COVER, MAP LAMP

main81265-51010iJCG1#199805-200104

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50021iJCG1#199805-200104

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iJCG1#199805-200104

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010iJCG1#199805-200104

81340LAMP ASSY, VANITY

main81340-51010-A1iJCG1#199805-200104

main81340-51010-B1iJCG1#200104-200706

main81350-51010-A1iJCG1#199805-200104

main81350-51010-B1iJCG1#199805-200104

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iJCG1#199805-200104

81490BBULB (FOR FOOT LAMP)

main90981-11041×2iJCG1#199805-200104

81870DLAMP ASSY, KEY CYLINDER

main81870-30060iJCG1#199805-200104

81870EBULB, KEY CYLINDER LAMP

main90981-11014iJCG1#199805-200104

9016040021

main90160-40021

9016745015

main90167-45015

9046804157

main90468-04157

9331315012

main93313-15012

23 parts on this diagram · 1 diagram in section
