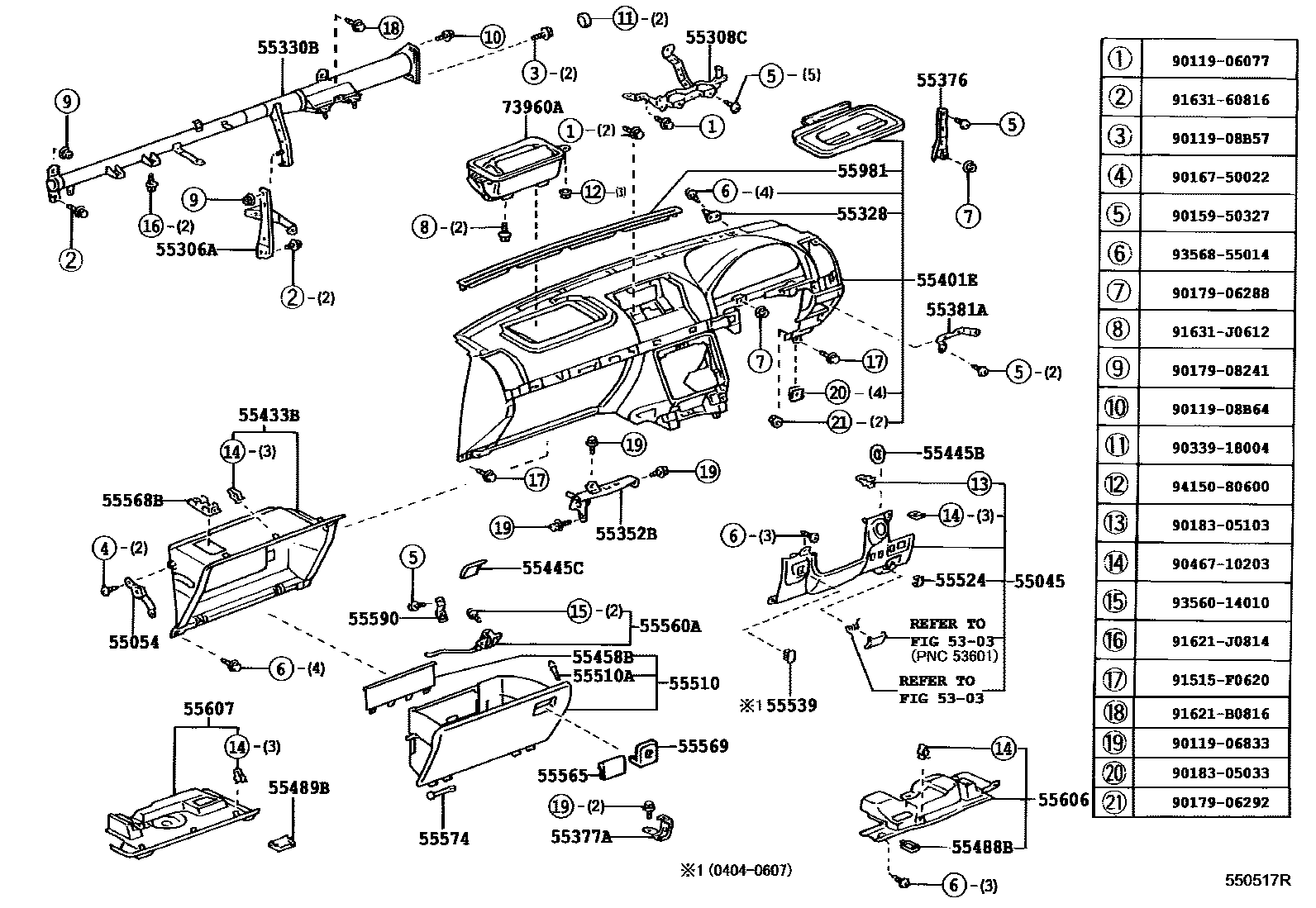

Toyota PROGRES — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

5303

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-51010-A0iJCG1#200104-200404

IVORY,TRIM0#

main55045-51010-C0iJCG1#199805-200104

BLACK,TRIM2#

main55045-51011-A0iJCG1#200404-200706

IVORY,TRIM0#

main55045-51011-C0iJCG1#200404-200706

BLACK,TRIM2#

55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

main55054-51010iJCG1#199805-200104

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-51010iJCG10,11199805-200104

main55306-51020iJCG15199912-200104

main55306-51030iJCG1#200104

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-51010iJCG1#199805-200104

55328PIN, INSTRUMENT PANEL, NO.1

main55328-51020×2iJCG1#199805-200104

sub55328-22040

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-51010iJCG1#200104

55352BBRACKET, CENTER CONSOLE, NO.2

main55352-51010iJCG10,11199805-200104

main55352-51020iJCG15199912-200104

main55352-51030iJCG10,11200104

main55352-51040iJCG15200104

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-51010iJCG1#200104

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-51010iJCG1#199805-200104

55381ABRACKET, FINISH PANEL MOUNTING

main55381-51010iJCG1#199805-200104

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-51010-C0iJCG1#200104-200706

BLACK,TRIM2#

main55401-51010-E0iJCG1#200104-200706

SANDAL WOOD,TRIM0#

main55401-51010-J0iJCG1#199805-200104

DK.BLUE,TRIM00

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-51010iJCG1#199805-200104

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-30160-A1iJCG1#200104-200706

IVORY,TRIM0#

main55445-30160-C0iJCG1#200104-200706

BLACK,TRIM2#

55445CPLATE, INSTRUMENT PANEL BOX

main55445-51010iJCG1#199805-200104

55458BCOVER, INSTRUMENT, LWR

main55458-48010iJCG1#199805-200104

55488BLENS, FRONT FOOT LAMP, NO.1

main55489-50010iJCG1#199805-200104

55489BLENS, FRONT FOOT LAMP, NO.2

main55489-50010iJCG1#199805-200104

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-51010-A0iJCG1#199805-200104

IVORY,TRIM00,01

main55501-51010-C0iJCG1#200104-200706

BLACK,TRIM2#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-05020×2iJCG1#200104

55524COVER, SWITCH BACE HOLE

main55524-51010-A0iJCG1#200104-200706

IVORY,TRIM0#

sub55539-42030

main55524-51010-C0iJCG1#200104-200706

BLACK,TRIM2#

sub55539-42030

55539COVER, SPARE SWITCH HOLE

main55539-51020-A0iJCG11200404-200512

IVORY,TRIM0#

sub55539-44010

main55539-51020-C0iJCG11200404-200512

BLACK,TRIM2#

sub55539-44010

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-51010iJCG1#200104-200706

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-22iJCG1#199805-200104

BLACK,TRIM2#

main55565-50010-A1iJCG1#199805-200104

IVORY,TRIM00,01

55568BPLATE, GLOVE COMPARTMENT DOOR FINISH

main55568-24020iJCG1#199805-200104

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-22iJCG1#199805-200104

BLACK,TRIM2#

main55569-50010-A1iJCG1#199805-200104

IVORY,TRIM00,01

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iJCG1#199805-200104

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-51010iJCG1#199805-200104

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-51010iJCG1#199805-200104

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-51010-A0iJCG1#199805-200008

IVORY,TRIM00,01

main55607-51010-C0iJCG1#199805-200008

BLACK,TRIM2#

main55607-51011-A0iJCG1#200008-200012

IVORY,TRIM00,01

main55607-51011-C0iJCG1#200008-200012

BLACK,TRIM2#

main55607-51012-A0iJCG1#200104-200706

IVORY,TRIM0#

main55607-51012-C0iJCG1#200104-200706

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-51010-C0iJCG1#200104-200706

BLACK,TRIM2#

main55981-51010-E0iJCG1#200104-200706

SANDAL WOOD,TRIM0#

main55981-51010-J0iJCG1#199805-200104

DK.BLUE,TRIM00

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-51010iJCG1#199805-200104

main73960-51020iJCG1#200104

9011906077

main90119-06077

9011906833

main90119-06833

9011908B57

main90119-08B57

9011908B64

main90119-08B64

9015950327

main90159-50327

9016750022

main90167-50022

9017906288

main90179-06288

9017906292

main90179-06292

9017908241

main90179-08241

9018305033

main90183-05033

9018305103

main90183-05103

9033918004

main90339-18004

9046710203

main90467-10203

91515F0620

main91515-F0620

91621B0816

main91621-B0816

91621J0814

main91621-J0814

9163160816

main91631-60816

91631J0612

main91631-J0612

9356014010

main93560-14010

9356855014

main93568-55014

9415080600

main94150-80600

53 parts on this diagram · 2 diagrams in section
