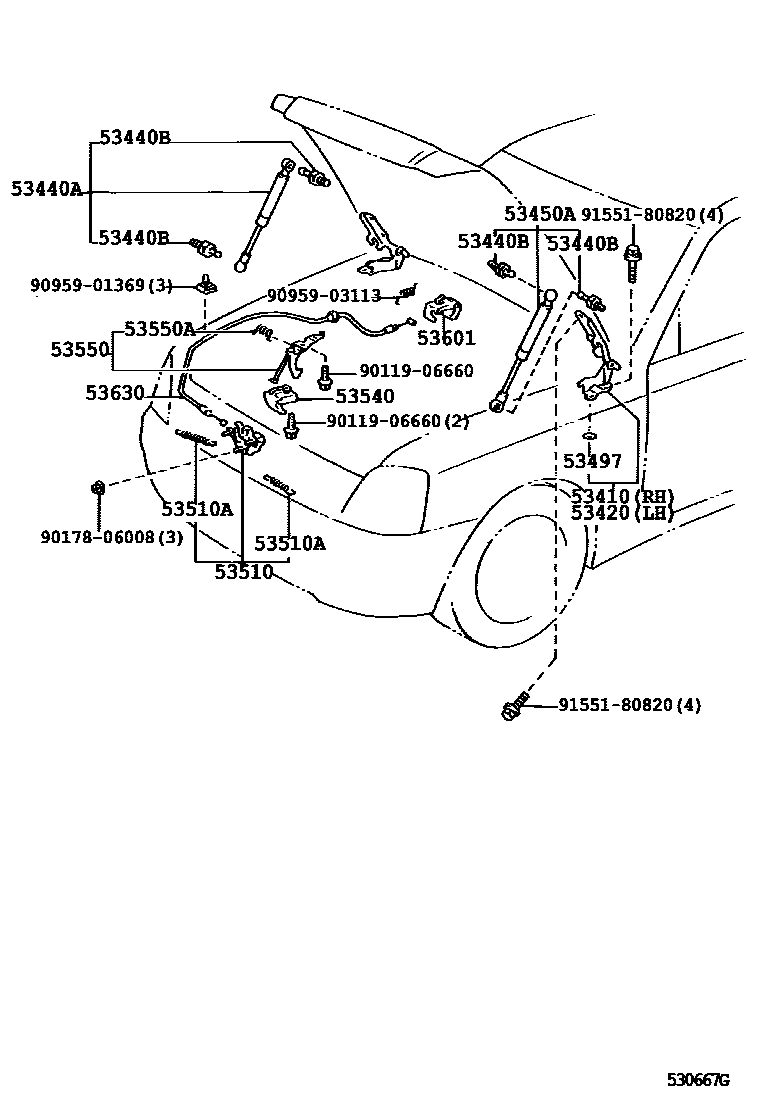

Toyota PROGRES — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-48010iJCG1#199805-199806

main53410-48020iJCG1#199806-200104

53420HINGE ASSY, HOOD, LH

main53420-48010iJCG1#199805-199806

main53420-48020iJCG1#199806-200104

53440ASUPPORT ASSY, HOOD, RH

main53440-59045iJCG1#199805-200104

sub53440-59085

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×4iJCG1#200104

main68961-24030×4iJCG1#199805-200104

53450ASUPPORT ASSY, HOOD, LH

main53450-59025iJCG1#199805-200104

sub53450-59075

53497PAD, HOOD HINGE, NO.1

main53497-12050×4iJCG1#199805-200104

main53497-20070×4iJCG1#199807-200104

main53497-42010×4iJCG1#200104

53510LOCK ASSY, HOOD

main53510-51010iJCG1#199805-199909

sub90178-06008

main53510-51011iJCG1#200104

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iJCG1#199805-200104

main90506-16071iJCG1#200104

main90506-18068iJCG1#199805-199810

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30020iJCG1#199805-200104

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-51010iJCG1#199805-200104

main53550-51030iJCG1#200104

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iJCG1#200104

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-22010-A0iJCG1#200104-200706

IVORY,TRIM0#

main53611-22010-C0iJCG1#199805-200104

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-51010iJCG1#199805-200104

9011906660

main90119-06660

9017806008

main90178-06008

9095901369

main90959-01369

9095903113

main90959-03113

9155180820

main91551-80820

18 parts on this diagram · 1 diagram in section
