Toyota PROGRES — HEATING & AIR CONDITIONING - WATER PIPING

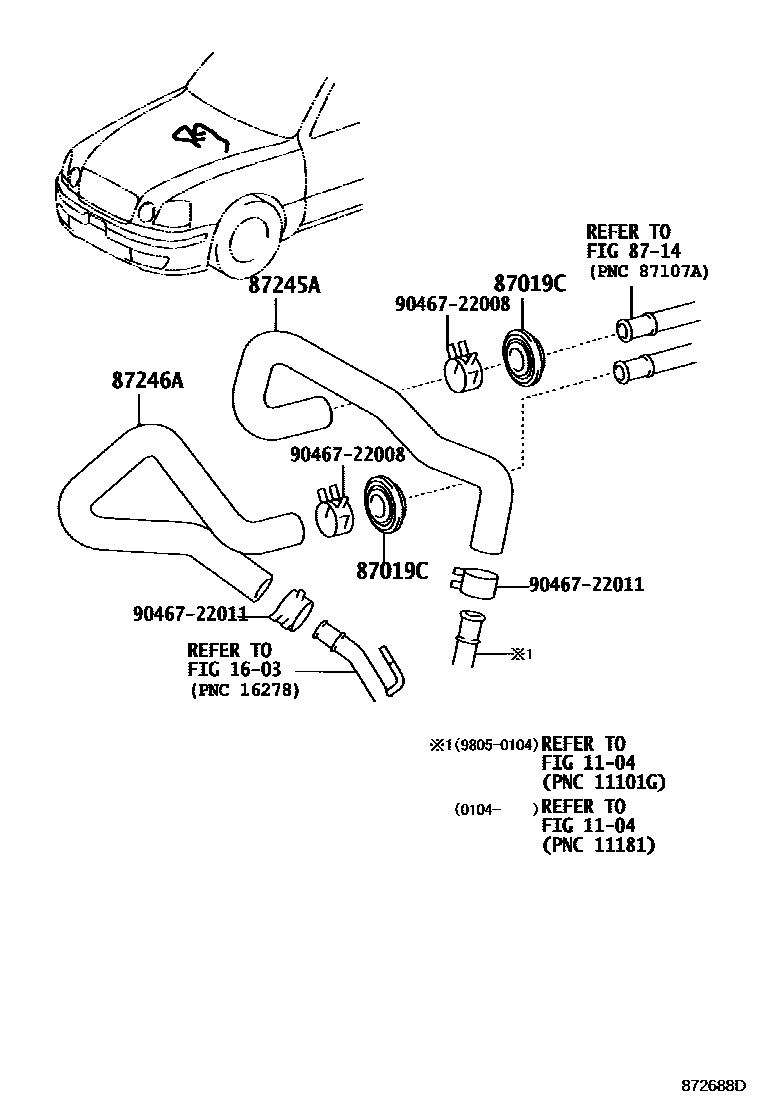

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87019CGROMMET, HEATER HOSE

main90480-31007×2i199805-200104

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-3F570i200106

main87245-51010i199805-200104

main87245-51040i199805-200104

main87245-51070i200104

main87245-51100i200104

87246AHOSE, HEATER WATER, OUTLET A

main87245-2A740i200104

main87245-3F550i199912-200104

main87245-3F750i199912-200104

main87245-51020i199805-200104

main87245-51050i199805-200104

main87245-51080i200104

main87245-51110i200104

main87245-51130i200104

9046722008

main90467-22008

9046722011

main90467-22011

8 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota PROGRES

This section contains 18 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota PROGRES. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, COWL PANEL & WINDSHIELD GLASS, GROMMET, HEATER HOSE, HEATING & AIR CONDITIONING - COOLER UNIT.
