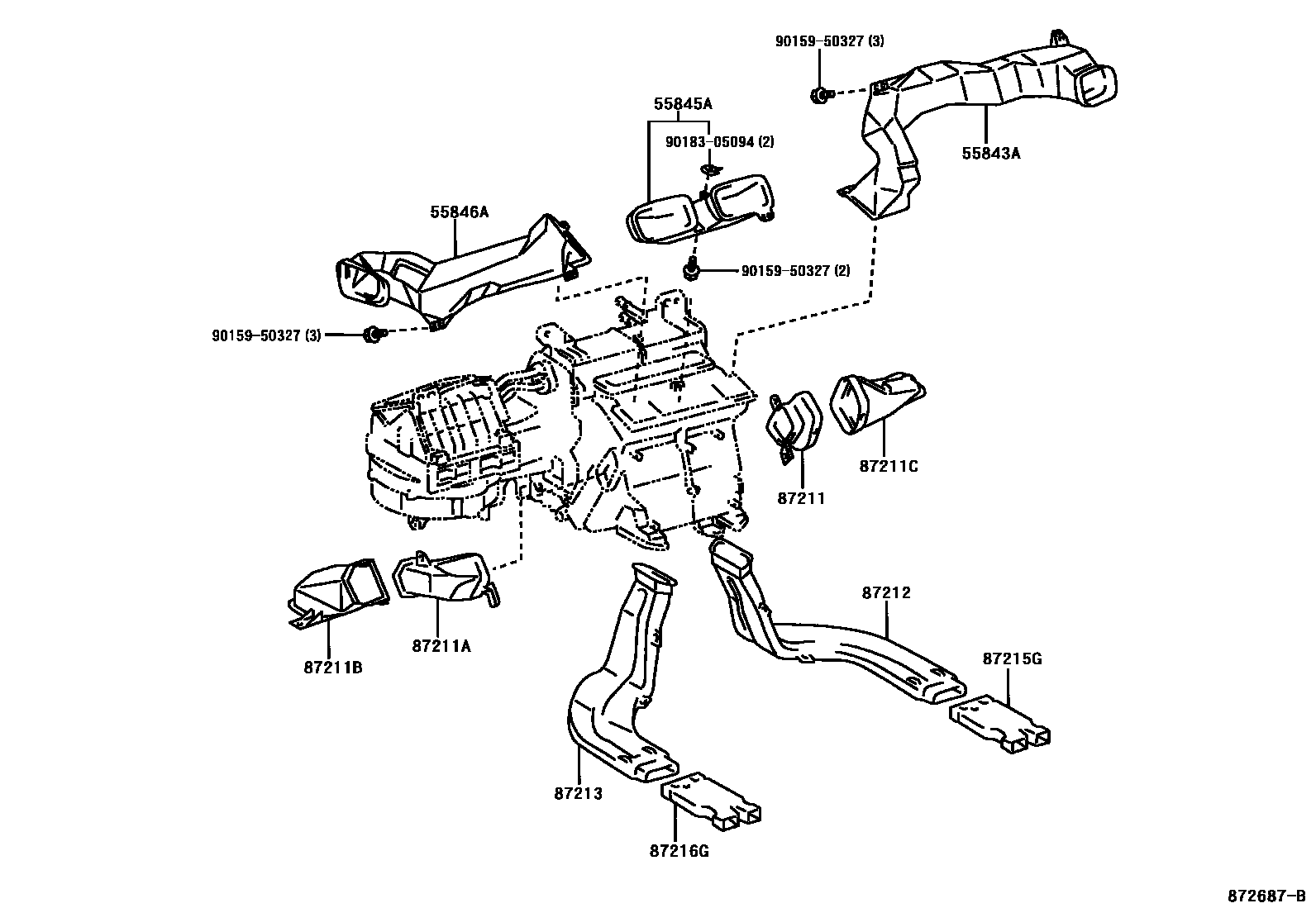

Toyota PROGRES — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���� 0002 1���

55843ADUCT, HEATER TO REGISTER, NO.1

main55843-51010iJCG1#199805-200104

55845ADUCT, HEATER TO REGISTER, NO.3

main55845-51010iJCG1#199805-200104

55846ADUCT, HEATER TO REGISTER, NO.4

main55846-51010iJCG1#199805-200104

87211DUCT, AIR, NO.1

main87211-51020iJCG1#199805-200104

87211ADUCT, AIR, NO.2

main87211-51030iJCG1#199805-200104

87211BDUCT, AIR, NO.3

main87211-51040iJCG1#199805-200104

87211CDUCT, AIR, NO.4

main87211-51010iJCG1#199805-200104

87212DUCT, AIR, REAR NO.1

main87212-30410iJCG1#200105

main87212-51010iJCG10,11200104-200105

87213DUCT, AIR, REAR NO.2

main87213-30340iJCG10,11200105

main87213-30350iJCG15200104

main87213-51010iJCG10,11200104-200105

87215GGUIDE, AIR DUCT, REAR RH

main87215-51010iJCG1#199805-200104

87216GGUIDE, AIR DUCT, REAR LH

main87216-51010iJCG1#200104

9015950327

main90159-50327

9018305094

main90183-05094

13 parts on this diagram · 2 diagrams in section
